Fimap MXR - Onboard Charger Kit - 222386

10-76
10.3 Onboard Charger Kit
- 222386
10.3.1 Description
The machine is available in ”CB” ver-
sion which is the version with the built
in charger. Anyway, in a standard ma-
chine, the battery charger can be fitted
acting as follows.
10.3.2 Machine Preparation
Before to start the kit installation is
mandatory to put the machine in safe
condition. Release the brush, switch off
the machine and unplug the batteries.
10.3.3 Installing instructions

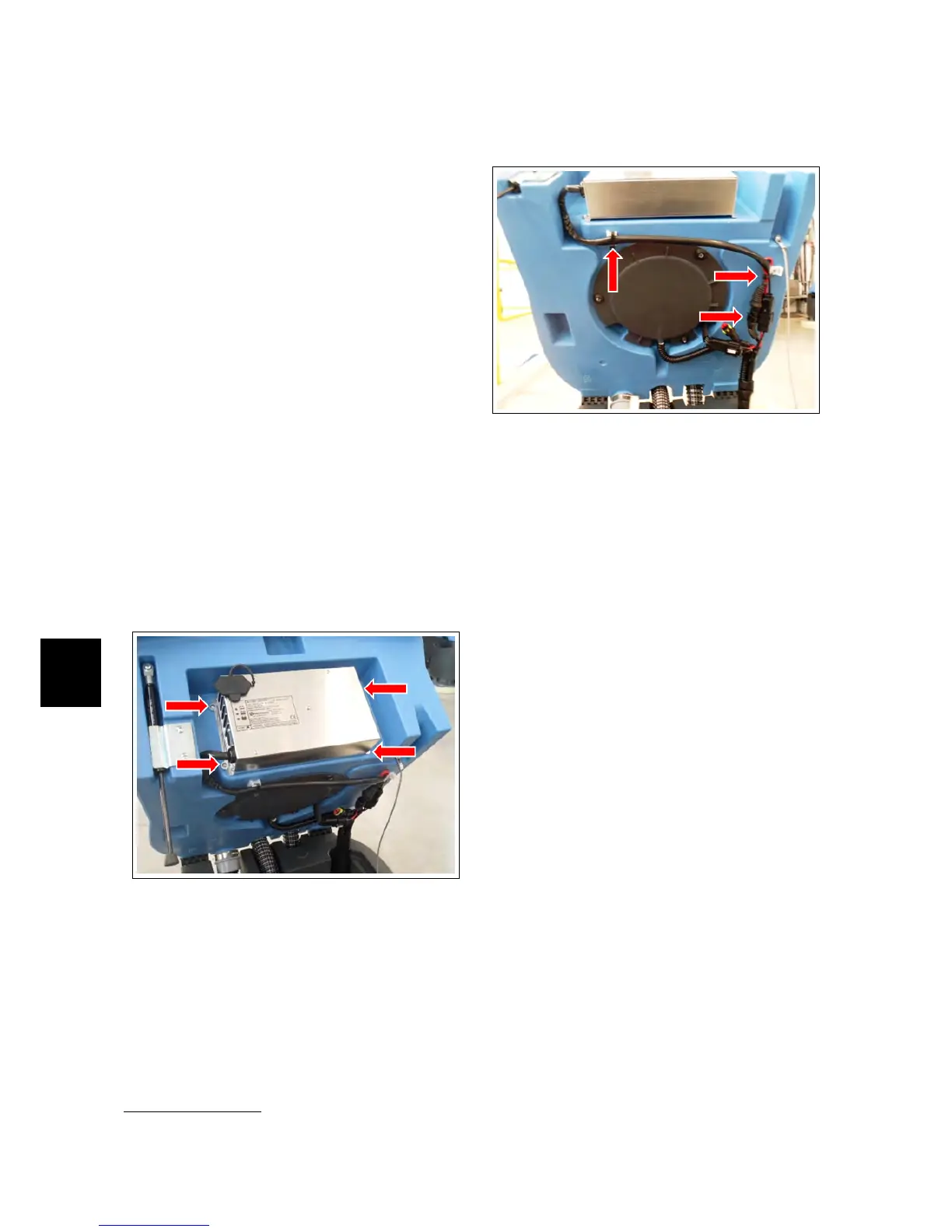

• Fit the charger into the housing and
fasten it with the 4 supplied screws,
taking care to add the two washers
on the slots.
• Mount the base on the housing,
tightening the screw in the insert.
Connect the battery charger cables
1
:
• Connect the charger power cable to
the cables ”XCB” of the machine
harness.
• Connect the safety contact cables to
the cables ”XCBR” of the machine
harness.
1
Refer also to the Electric Scheme
• Secure the cables to the clips with
plastic ties.
• Reconnect the battery cables and
proceed to a functional check of the
machine.
