Fimap MXR - Disassembly: Frame and Traction System

4-25
4.3.7 Drain Hose
• Put the machine in safe conditions.
• Loosen the clamp that secures the
drain hose to the recovery tank (see fig.
4.3.7-38).
• Unhook the hose from the plastic
clip (see fig. 4.3.7-39).
• Remove the hose from its housing (see
fig. 4.3.7-40).
• Proceed at reverse to refit the part.

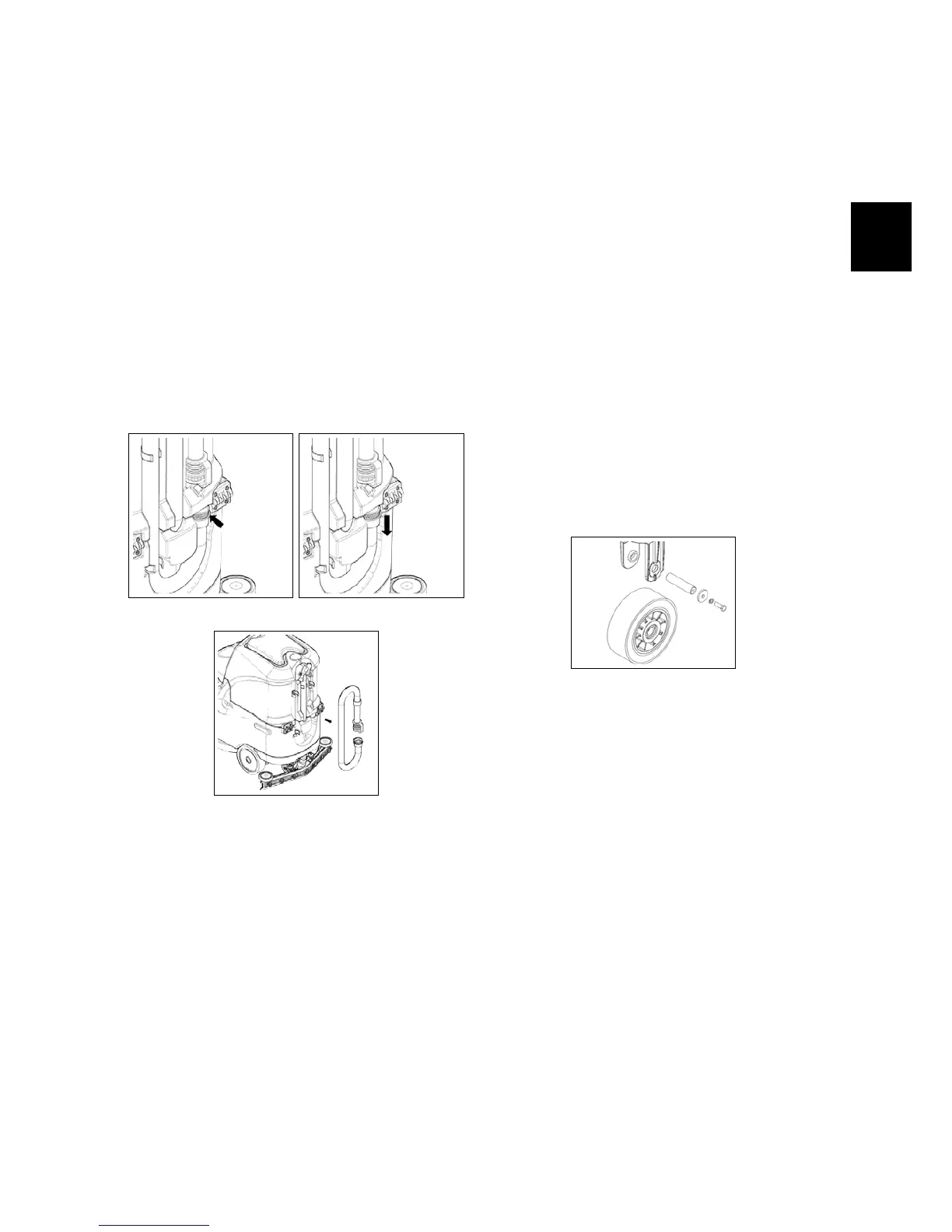

4.3.7-38 Fase 1 4.3.7-39 Fase 2
4.3.7-40 Fase 3
4.4 Frame and Traction
System
4.4.1 Front Wheel
• Put the machine in safe conditions.
• Lift up the front wheel from the
ground.
• Unscrew one of the fixing screws of
the wheel shaft to the support.
• Remove the wheel securing shaft to
the support.
• Proceed at reverse to refit the part.
4.4.1-41
4.4.2 Rear Wheel
• Put the machine in safe conditions.
• Lift up the related rear wheel from
the ground.
• Remove the hub cap by levering with
a small flat screwdriver.
• Loosen the fixing bolt of the wheel to
the axle shaft.
• Proceed at reverse to refit the wheel
(Use the thread lock liquid on the
screw during the assembling).
