4-24
4.3.4-30 4.3.4-31
4.3.4-32

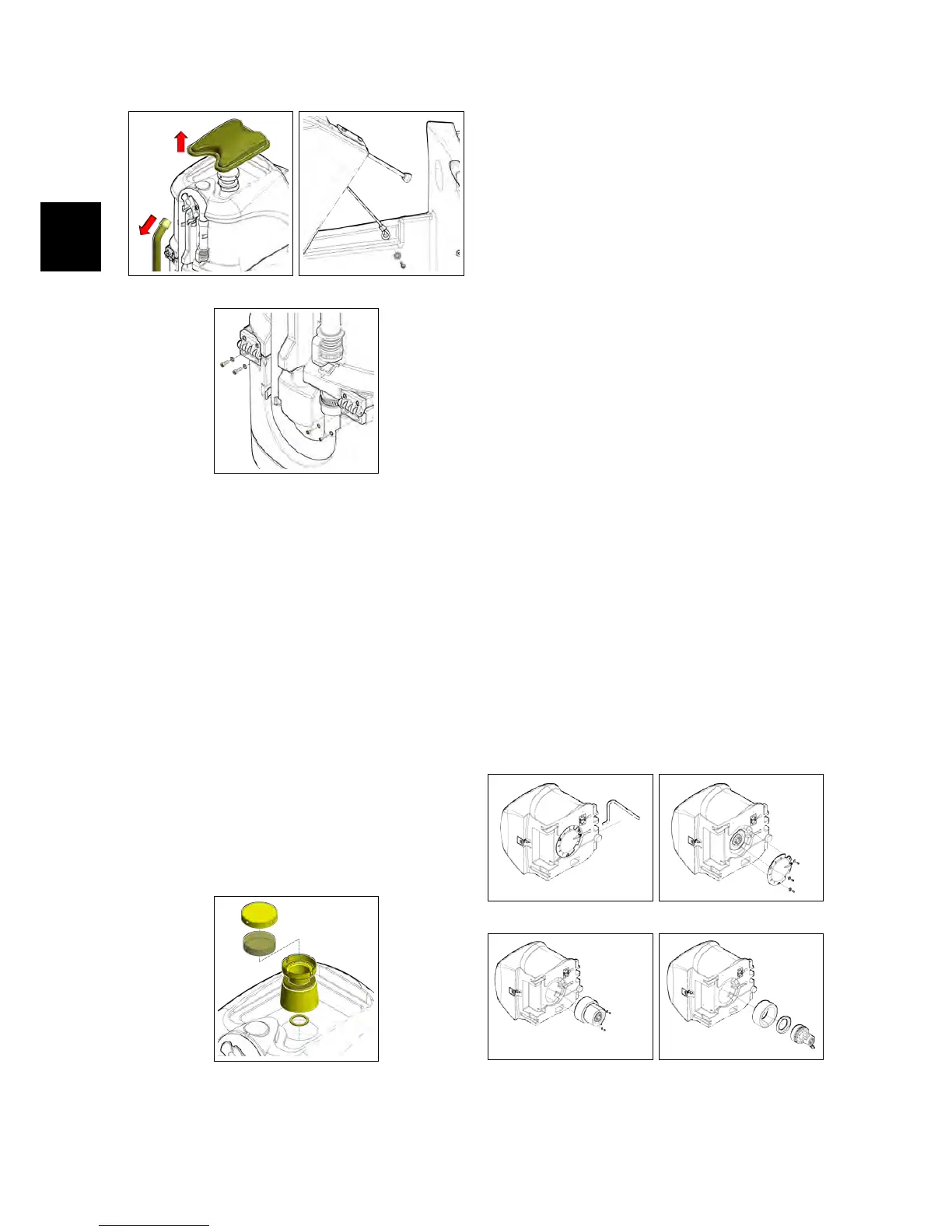

4.3.5 Floater and Vacuum Filter
• Put the machine in safe conditions.
• Remove the Recovery Tank Lid.
• Unscrew the floating filter body.
• Remove the cap from the floating fil-
ter body.
• Remove the sponge suction filter.
• Proceed at reverse to refit the part.
4.3.5-33
4.3.6 Vacuum Motor
• Put the machine in safe conditions.
• Open the Recovery Tank.
• Disconnect the power cords of the
Vacuum Motor.
• Cut the plastic clamp that secures
the condensate drain hose to the re-
covery tank (see fig. 4.3.6-34).
• Loosen the screws and remove the
vacuum motor cover (see fig. 4.3.6-35).
• Unscrew the nuts that secure the
vacuum motor to the recovery tank
(see fig. 4.3.6-36).
• Pull out the vacuum motor and re-
move the sound absorbing sponges
(see fig. 4.3.6-37).
• Loosen the screws to remove the mo-
tor fixing plate.
• Proceed at reverse to refit the part.
4.3.6-34 4.3.6-35
4.3.6-36 4.3.6-37
