4-26
4.4.2-42 Regolazione
sterzo
4.4.3 Steering shaft
• Put the machine in safe conditions.
• Remove the front carter from the
steering column by loosening the
screws.
• Loosen the upper grains from the
universal joint.
• Remove the steering wheel from the
machine.
• Loosen the lower grains from the
universal joint.
• Loosen the chain draw grains.
• Remove the chain joint.
• Remove the chain from the steering
column.
• Remove the column support by loos-
ening the screws.
• Remove the chain tensioner bracket.
• Pull out the steering column from
the lower support.
• Proceed at reverse to refit the part.
4.4.4 Steering Chain
• Put the machine in safe conditions.
• Remove the front carter from the
steering column by loosening the
screws (see fig. 4.5.1-55).
• Loosen the screws that secure the
lower support of the steering shaft
(see fig. 4.4.4-44).
• Loosen the grains (see fig. 4.4.4-45).
• Remove the chain joint (see fig. 4.4.4-47).
• Remove the chain from the sprocket.
• Proceed at reverse to refit the part.

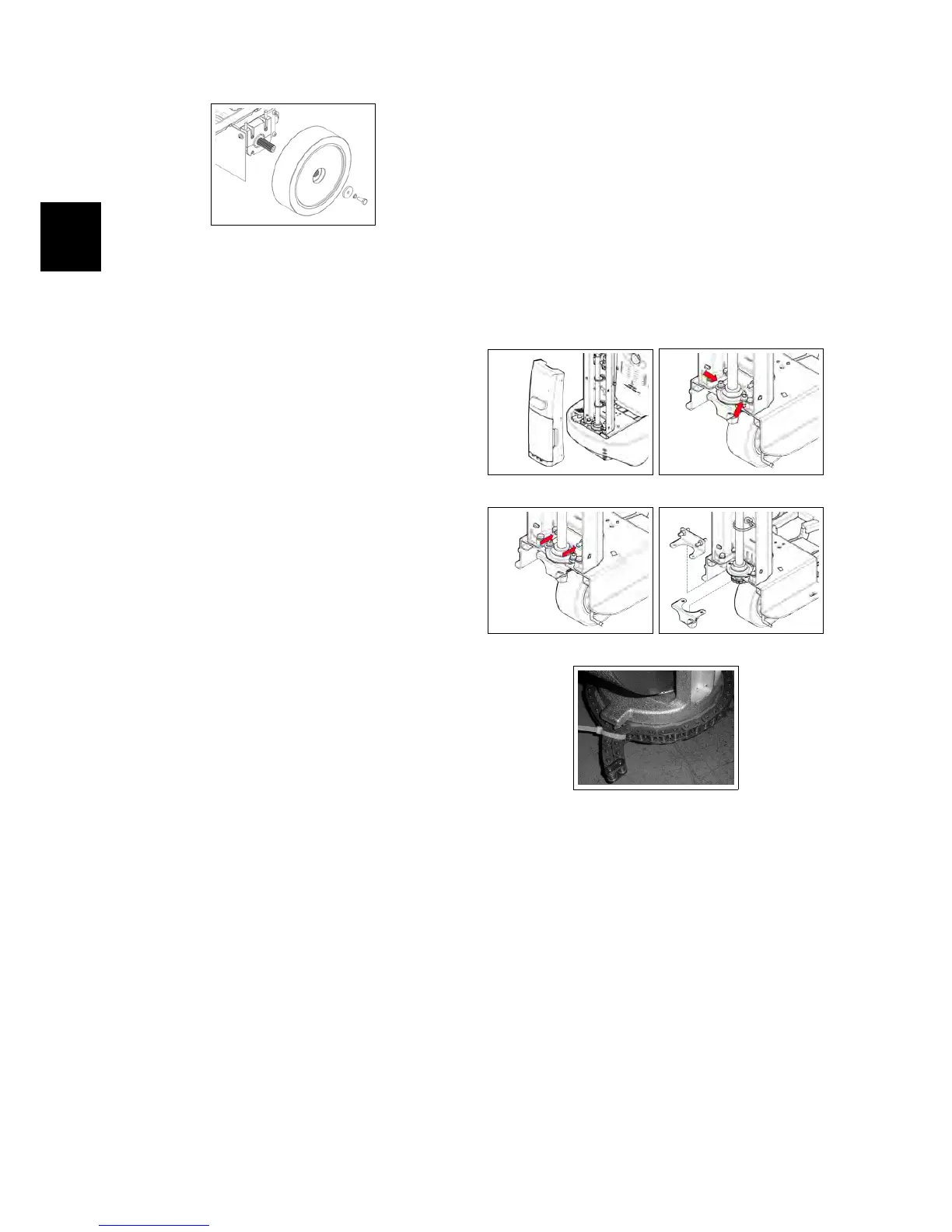

4.4.4-43 4.4.4-44
4.4.4-45 4.4.4-46
4.4.4-47
4.4.5 Crown of the wheel sup-
port bearings cam
• Put the machine in safe conditions.
• Remove the steering chain (see section
4.4.4 at page 26).
• Lift the front wheel off the ground.
• Remove the screws securing the
front wheel to the frame (see fig. 4.4.5-
48).
