10-79
• The accessories group is grafted in
pressure.

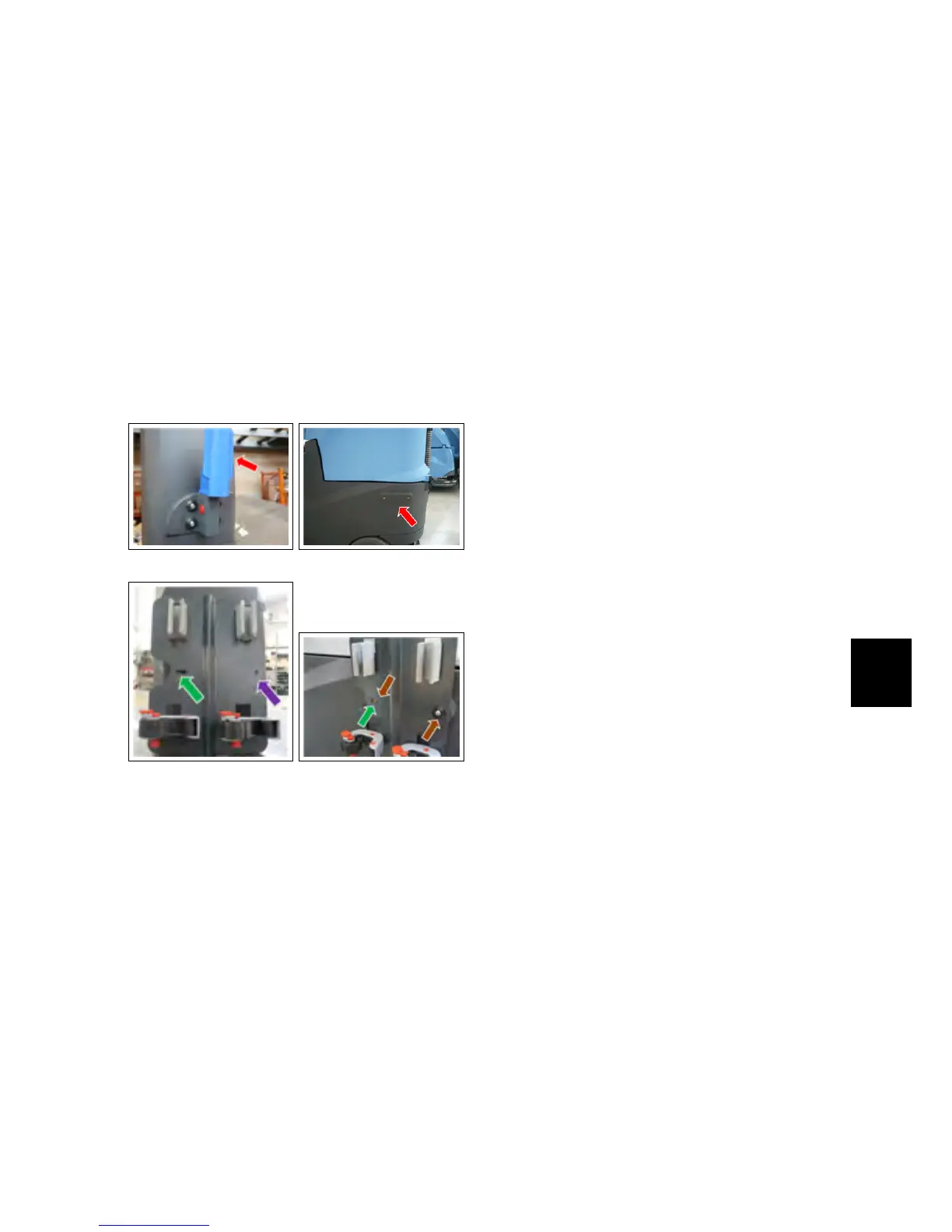

• The side bracket must be inserted in
predisposition located below the re-
covery tank.
• The side bracket is provided with a
slot and a fixing hole.
• Install the bracket as shown in the
figure and secure the bracket with
the two M5 screws supplied with the
kit.
10.5.2-141 10.5.2-142
10.5.2-143 10.5.2-144
• Reconnect the battery cables and
proceed to a functional check of the
machine.
