Finn MBH6 - Hose Reel Assembly

MBH6 MR1108 Rev. A
121
WHEN ORDERING PARTS, BE SURE TO STATE
SERIAL NUMBER OF MACHINE
1
3
4
5
6
2

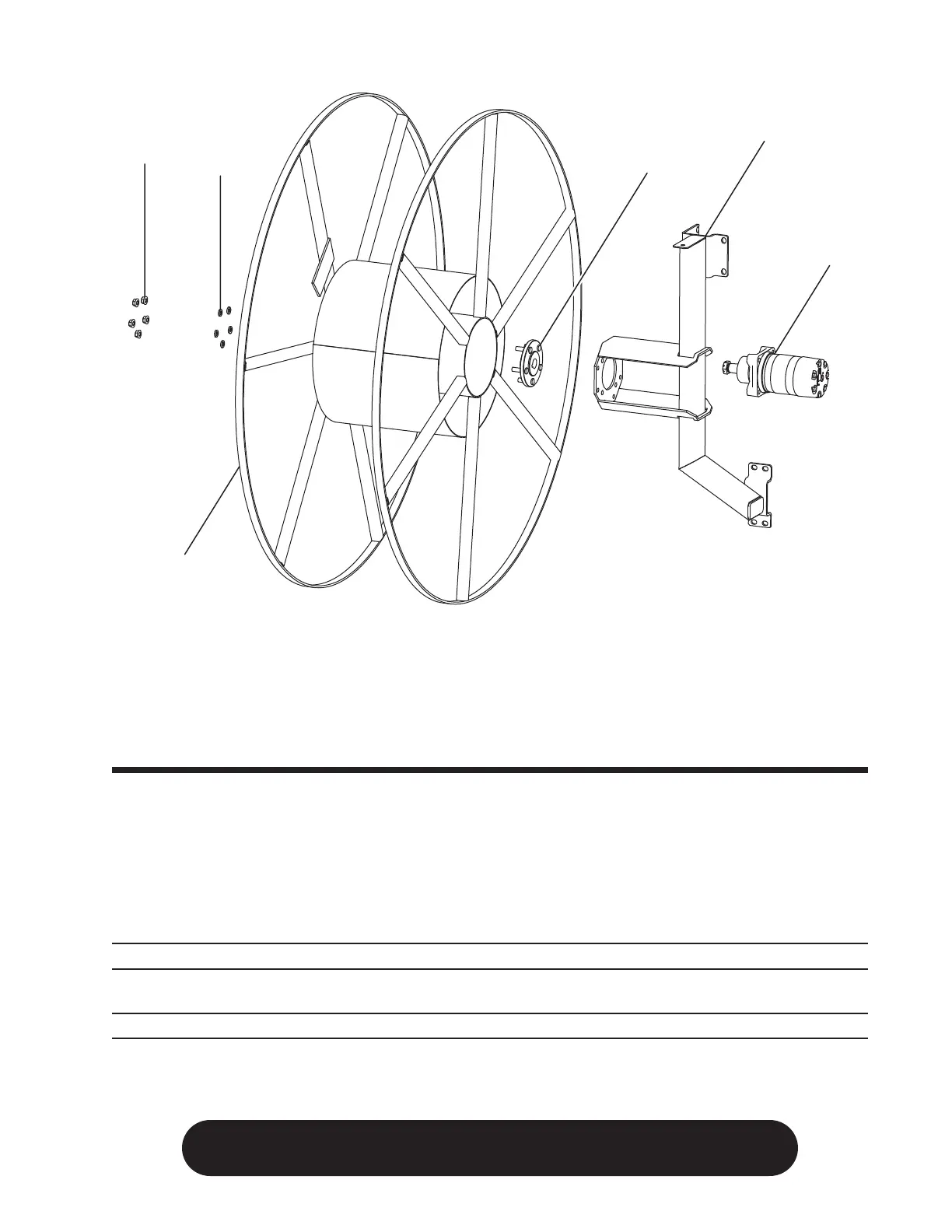

HOSE REEL ASSEMBLY
Ref. Kit No.
No. Ref. Part Number Description Req’d
1   1/2 - 20 Hex Flange Nut 5
2   1/2 Heavy Helical Spring Lock Washers 5
3  075719 Drum Weldment 1
4  045031 Machined Hub 1
5  A2762-001 Weldment, Hose Reel Mount 1
6  A4224-001 Motor - Hydraulic, Hose Reel 1
NOT SHOWN
075739 Hose Reel Side Cover 2
KITS AND MARKERS
 A2578-001 Hose Reel Assembly
  Standard Hardware Item
