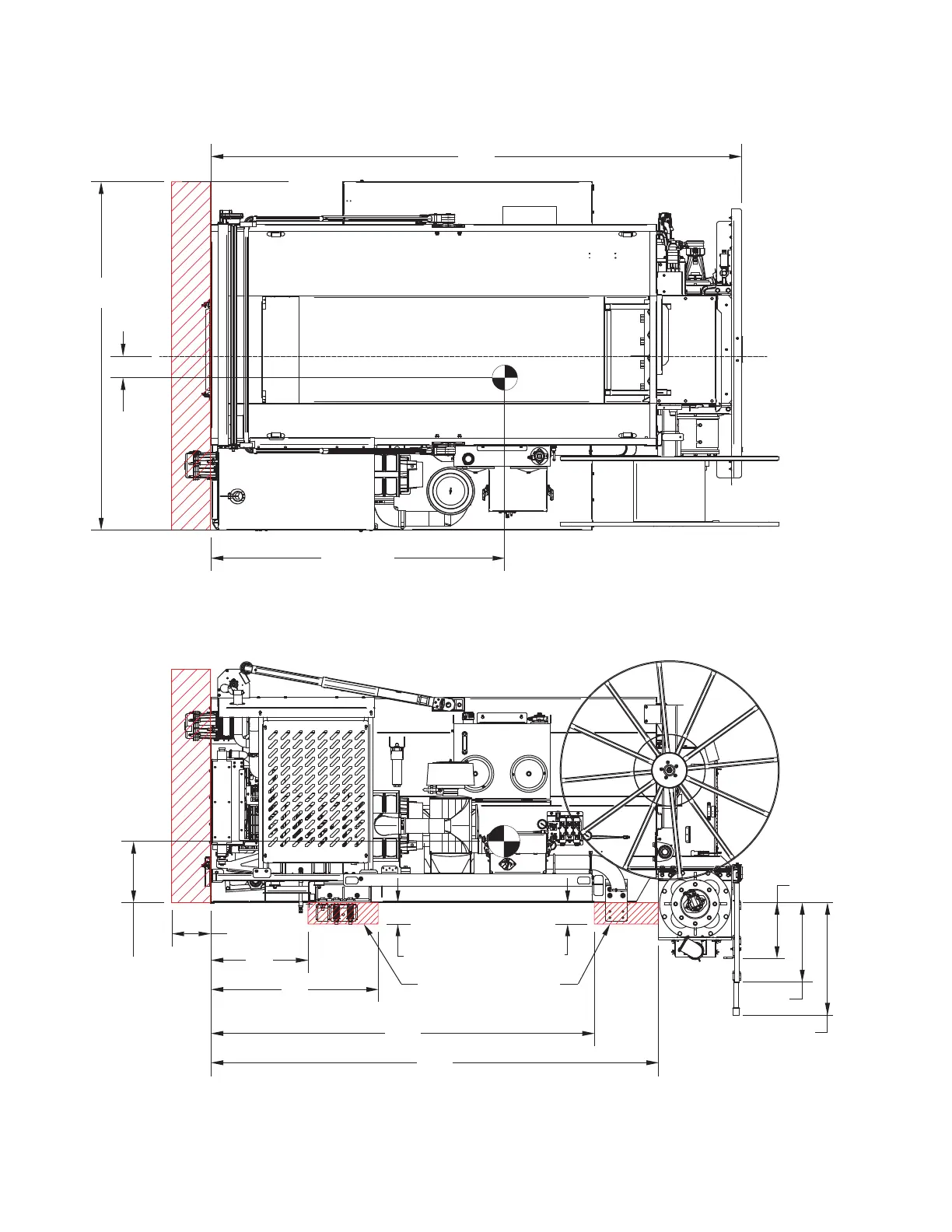

TRUCK MOUNTING / LOADING INFORMATION
MINIMUM CLEARANCE
FROM BACK OF CAB
MINIMUM CLEARANCE
FROM BACK OF CAB
149
98
C.L. CHASSIS
126
11 MIN.
27
47
6
6
108
TRUCK RAIL MOUNT
CLEARANCE ZONES
15.5
22.5
31.5
CG Y
CG X
< FRONT
REAR
>
CG Z
