Finn MBH6 - Spring Mount Assembly

MBH6 MR1108 Rev. A
123
WHEN ORDERING PARTS, BE SURE TO STATE
SERIAL NUMBER OF MACHINE
TORQUE TO 357 ft. / lb. (484 N-m)
2
3
4
1
8
5
6
7
9
10 (
PRE-INSTALLED AT FACTORY)
11 (
PRE-INSTALLED AT FACTORY)

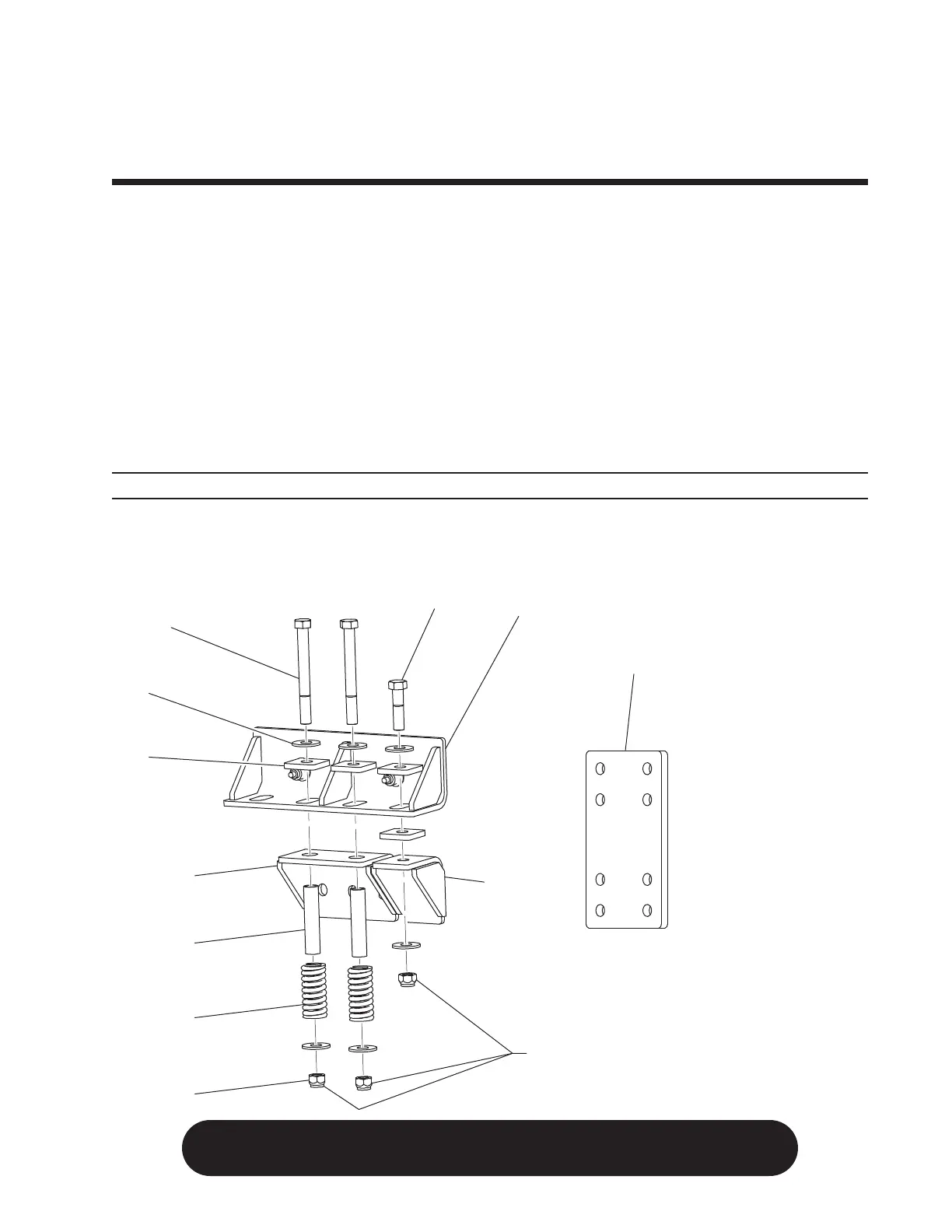

SPRING MOUNT ASSEMBLY
Ref. No.
No. Part Number Description Req’d
1  Prevailing Torque Type Hex Nut - UNF, 3/4 - 16 in. Grade 8 6
2 011563 Truck Mount Compression Spring 4
3 A3453-001 Spring Spacer Tube 4
4 A3450-001 Truck Mount Gusset 2
5 A3448-001 Square Washer 8
6  Wide Plain Washer, 3/4 in. 12
7  Hex Bolt, 3/4 - 16 in. UNF x 7 in. Grade 8 4
8 A3462-001 Truck Mount Gusset 2
9  Hex Bolt, 3/4 - 16 in. UNF x 3 in. Grade 8 2
10 A3547-001 Upper Gusset Mount 2
11 A3549-001 Rear Hard Mount 2
KITS AND MARKERS
A4511-001 Complete Installation Kit
 Standard Hardware Item
