Fire-Lite ECC-50 - Slide-in Labels

Emergency Command Center Manual — P/N LS10001-000FL-E:D 9/3/2014 101

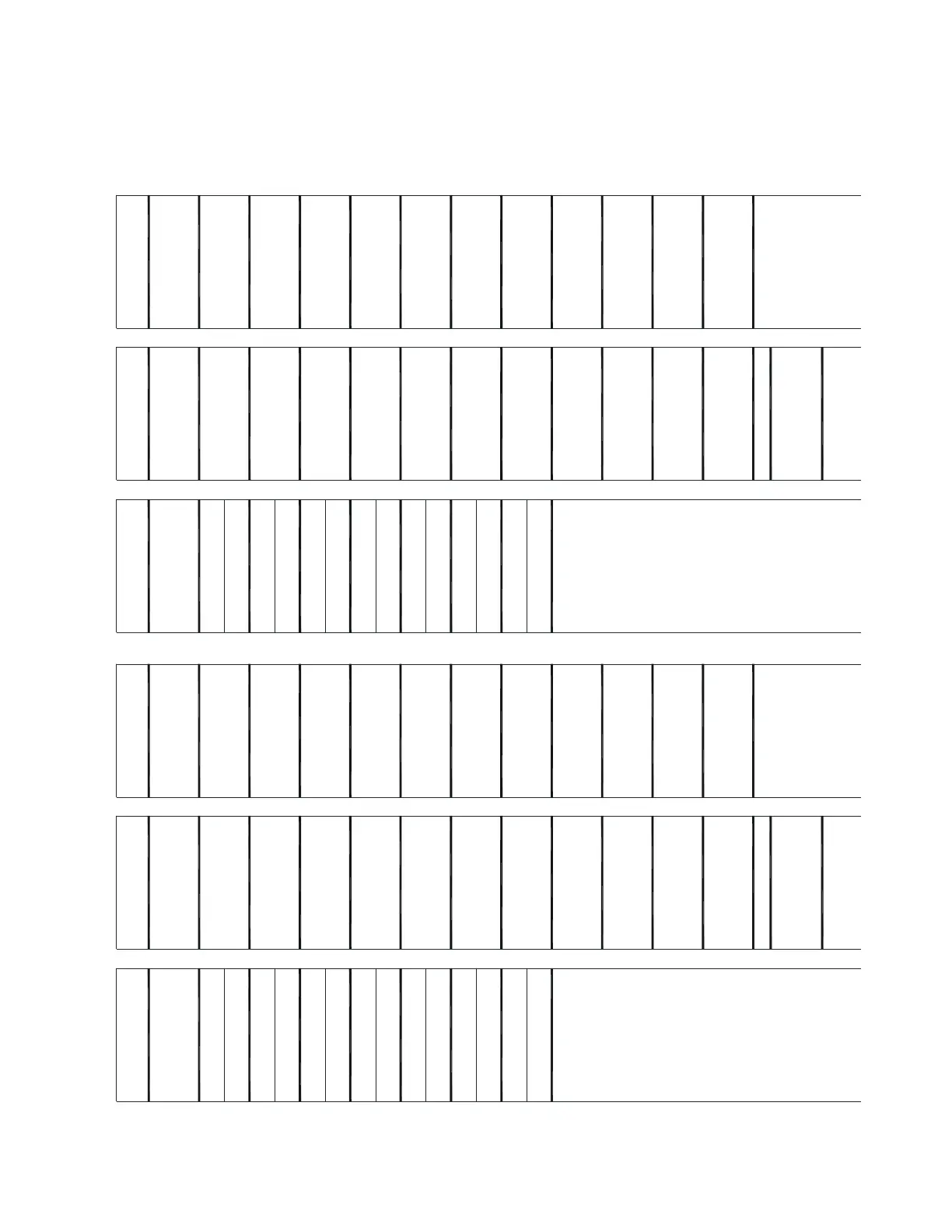

Slide-in Labels
Carefully cut along the outside of each label. Identify keypad buttons as desired and slide the
labels in. Refer to Section 4.1 on page 82 for installation instructions.
Zone 1
Zone 2
Zone 3
Zone 4
Zone 5 Zone 6
Zone 7 Zone 8
Zone 9
Zone 10
Zone 11
Zone 12
Zone 13
Zone 14 Zone 15
Zone 16
Zone 17
Zone 18 Zone 19
Zone 20
Zone 21
Zone 22
Zone 23
Zone 24
Figure 1.1 Slide-in Labels - Top Row of Keypad
MICROPHONE TROUBLE OK TO PAGE
MESSAGE #1
MESSAGE #2
MESSAGE #3 MESSAGE #4
MESSAGE #5 MESSAGE #6 MESSAGE #7
MESSAGE #8
MICROPHONE TROUBLE OK TO PAGE
MNS
CONTROL
MNS
CONTROL
