Output Circuits Installation
ACS Mode Wiring
When communication is wired over the ACS annunciator link, a monitor module must be used to
monitor mass notification events. Wire the monitor module to the ECC at TB1 MNS Active Relay
in addition to the Data Bus wiring shown above. Refer to the FACP manual for information on type
IDs.
SLC
TB1 MNS Active Relay
monitor
module

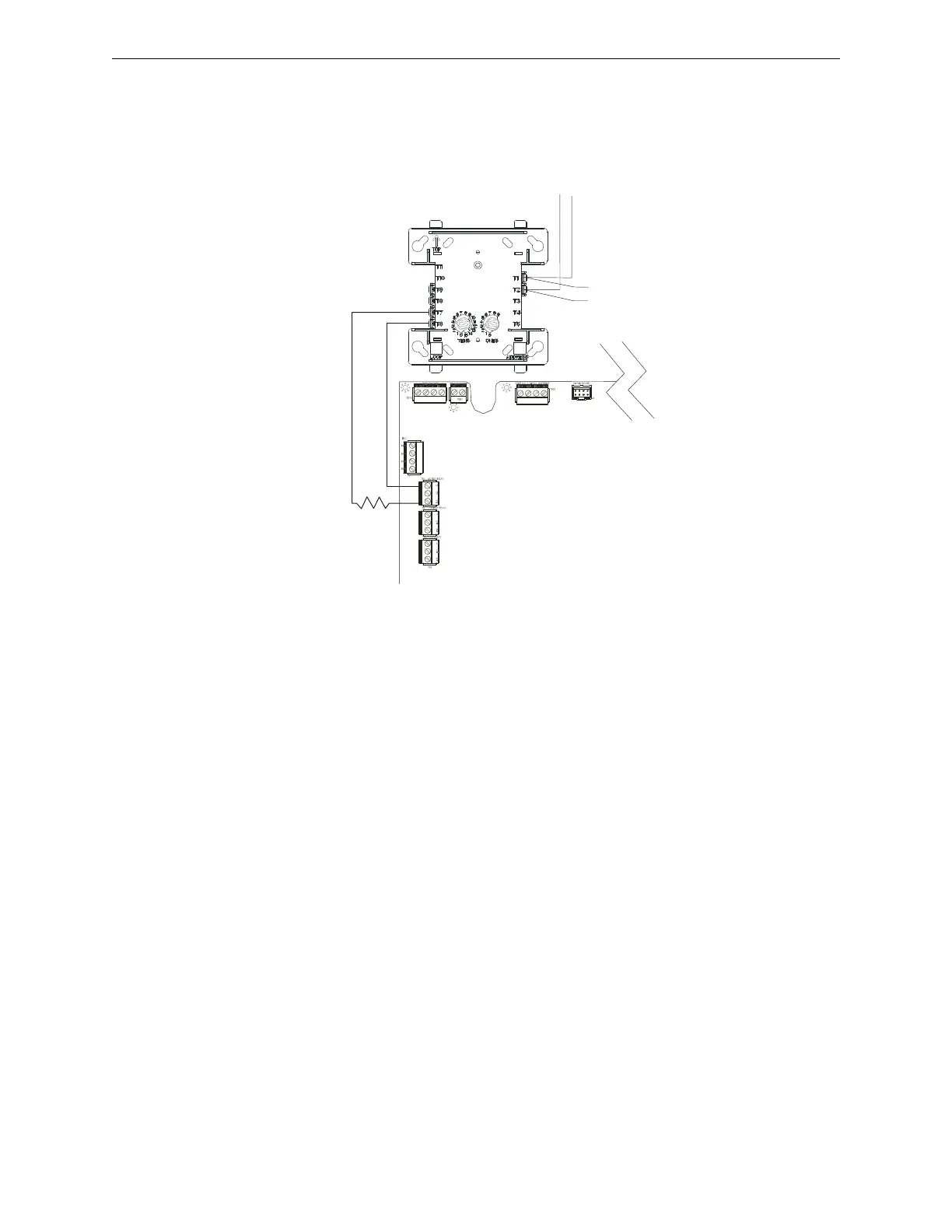

Figure 2.21 Monitor Module Wiring for ACS Communication
