Emergency Command Center Manual — P/N LS10001-000FL-E:D 9/3/2014 29
Backbox Installation Installation

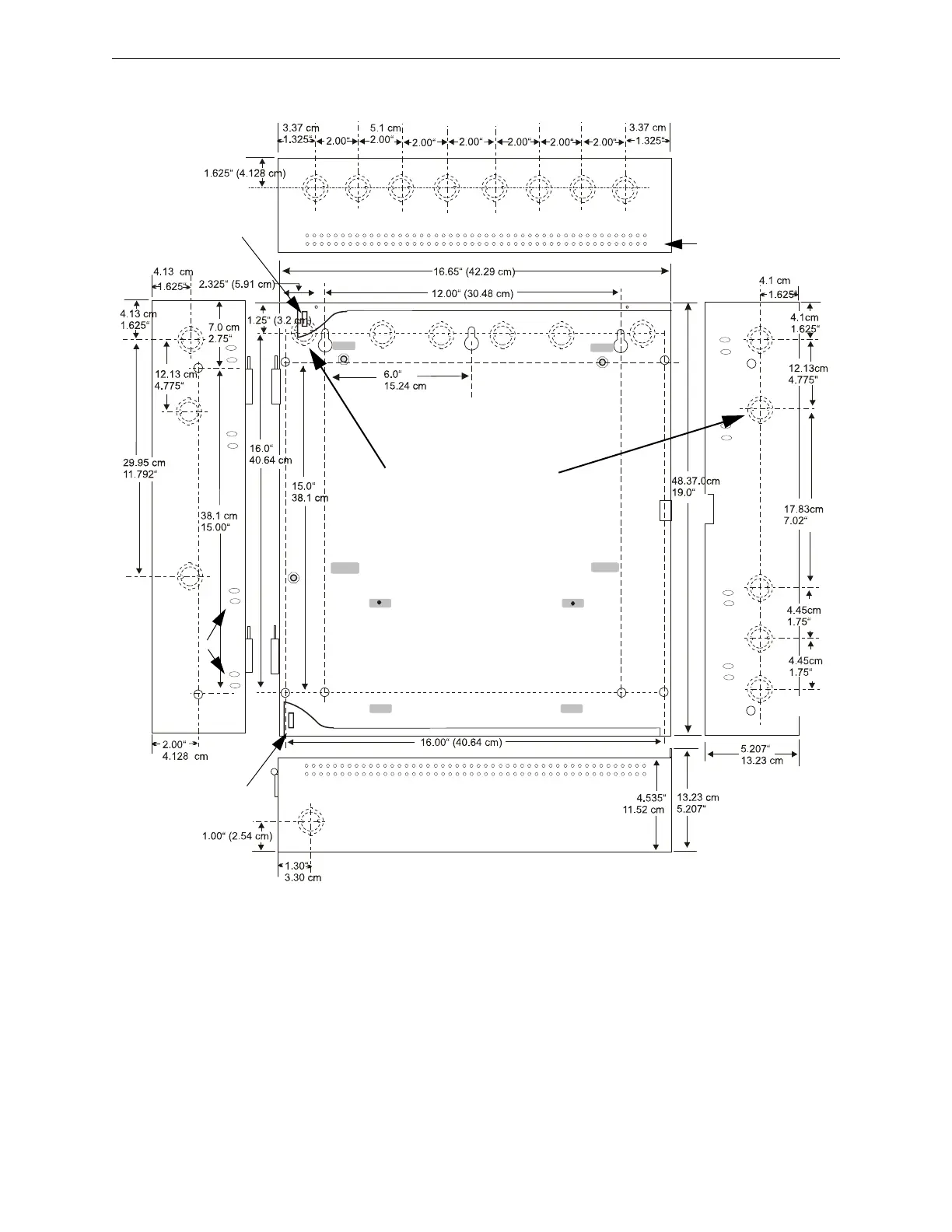

Figure 2.4 Cabinet Dimensions & Knockout Locations
9050udencl.wmf
Semi-Flush Mounting
Do not recess box more
than 3.875” into wall to
avoid covering venting
holes on top of box.
Hinge Slot for
Dress Panel
Hinge Slot for
Dress Panel
Semi-flush
mounting hole
Mounting
slots for
optional
Trim Ring
Do not use these knock-outs!
