FireClass DUO-CEL - Overview of User Functions

EQUIPMENT: FIRECLASS DUO-CEL
PUBLICATION: OM_DUO-CEL_APP
ISSUE No. & DATE: 2 20/06/18
PAGE 18 of 46
8. Overview Of User Functions
This section gives an overview of the functions available to the end user.

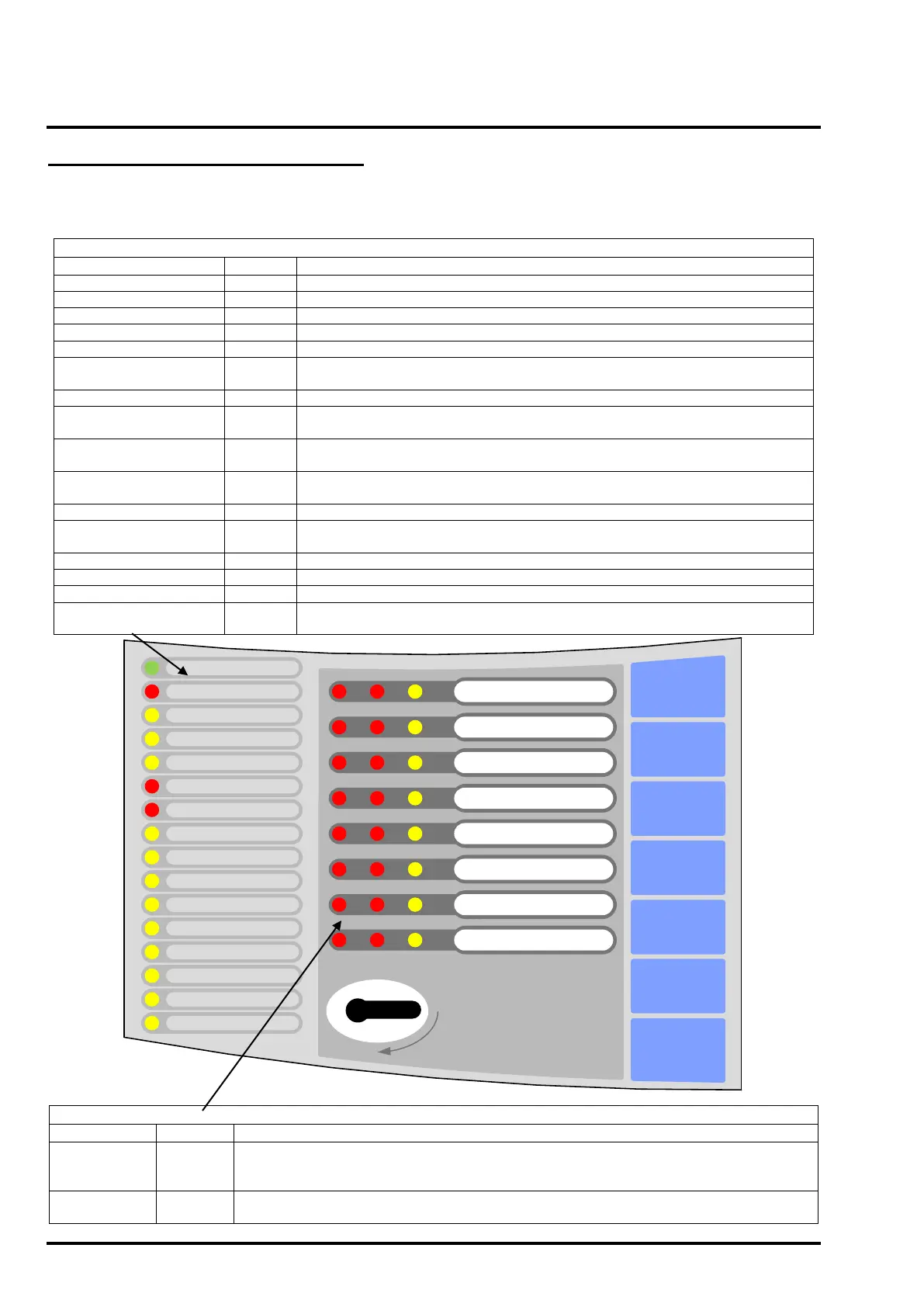

8.1 User Indications
General Indicator Section
Indicator
Colour
Operating Condition
Supply On
Green
OFF: No mains or battery power, ON: Panel has power (battery and/or mains)
General Fire
Red
OFF: Quiescent, FLASH: New Alarm Condition, ON: Alarm Accepted
General Fault
Yellow
OFF: No faults present, FLASH: One or more faults present
General Test
Yellow
OFF: No circuits in Test, ON: One or more circuits in Test
General Disablement
Yellow
OFF: No circuits Disabled, ON: One or more circuits Disabled
Alert/Evac On
Red
OFF: No Alert or Evacuate, FLASH: Remote Alert active. ON: Remote Evacuate
active or Panel Evacuate active
Fire Signal On
Red
OFF: Fire Signal output not active, ON: Fire Signal output active
Fire Signal Flt / Dis / Tst
Yellow
OFF: No fault on Fire Signal output, FLASH: Fault on Fire Signal output,
ON: Fire Signal output Disabled or in test
Sounder Flt / Dis / Dis
Yellow
OFF: No Fault on Sounder circuits, FLASH: Fault on one or more Sounder
circuits, ON: Sounder circuits Disabled or in Test
System Fault
Yellow
OFF: System is working correctly, ON: System is not functional. (Microcontroller
failed or EEPROM data corrupted)
PSU Fault
Yellow
OFF power supply is healthy, FLASH: PSU fault and/or battery fault
Fuse Failed
Yellow
OFF: Auxiliary 24Vdc output available, FLASH: Electronic Fuse on Auxiliary
24Vdc output activated
Earth Fault
Yellow
OFF: No cable faults to Earth, FLASH: One or more cable faults to Earth
Repeater Fault
Yellow
OFF: No Repeater faults, FLASH: One or more Repeater faults
Remote Control Fault
Yellow
OFF: No faults on Remote Control input, FLASH: Fault on Remote Control input
Controls On
Yellow
OFF: User Controls disabled, ON: User Controls enabled, FLASH: Select mode
active
SILENCE
BUZZER
SILENCE /
RESOUND
ALARMS
RESET
DISABLE
TEST
EVACUATE
SELECT
SUPPLY ON
GENERAL FIRE
GENERAL FAULT
GENERAL TEST
GENERAL DISABLE
ALERT / EVAC ON
FIRE SIGNAL ON
FIRE SIGNAL FAULT
SNDR FLT / DIS / TEST
SYSTEM FAULT
PSU FAULT
FUSED FAILED
EARTH FAULT
REPEATER FAULT
REMOTE I/P FAULT
CONTROLS ON
1
2
3
4
5
6
7
8
Zone Location Indications
Indicator
Colour
Operating Condition
User Zone
Location Text
Red
OFF: No Alarm on zone, FLASH: New Alarm on zone, ON: Alarm accepted on zone.
NOTE: With Detector/MCP discrimination, the left LED is for MCPs, the right LED for
Detectors.
User Zone
Location Text
Yellow
OFF: No Fault on zone circuit, FLASH: Fault on zone circuit, ON: Zone circuit Disabled or in
Test
