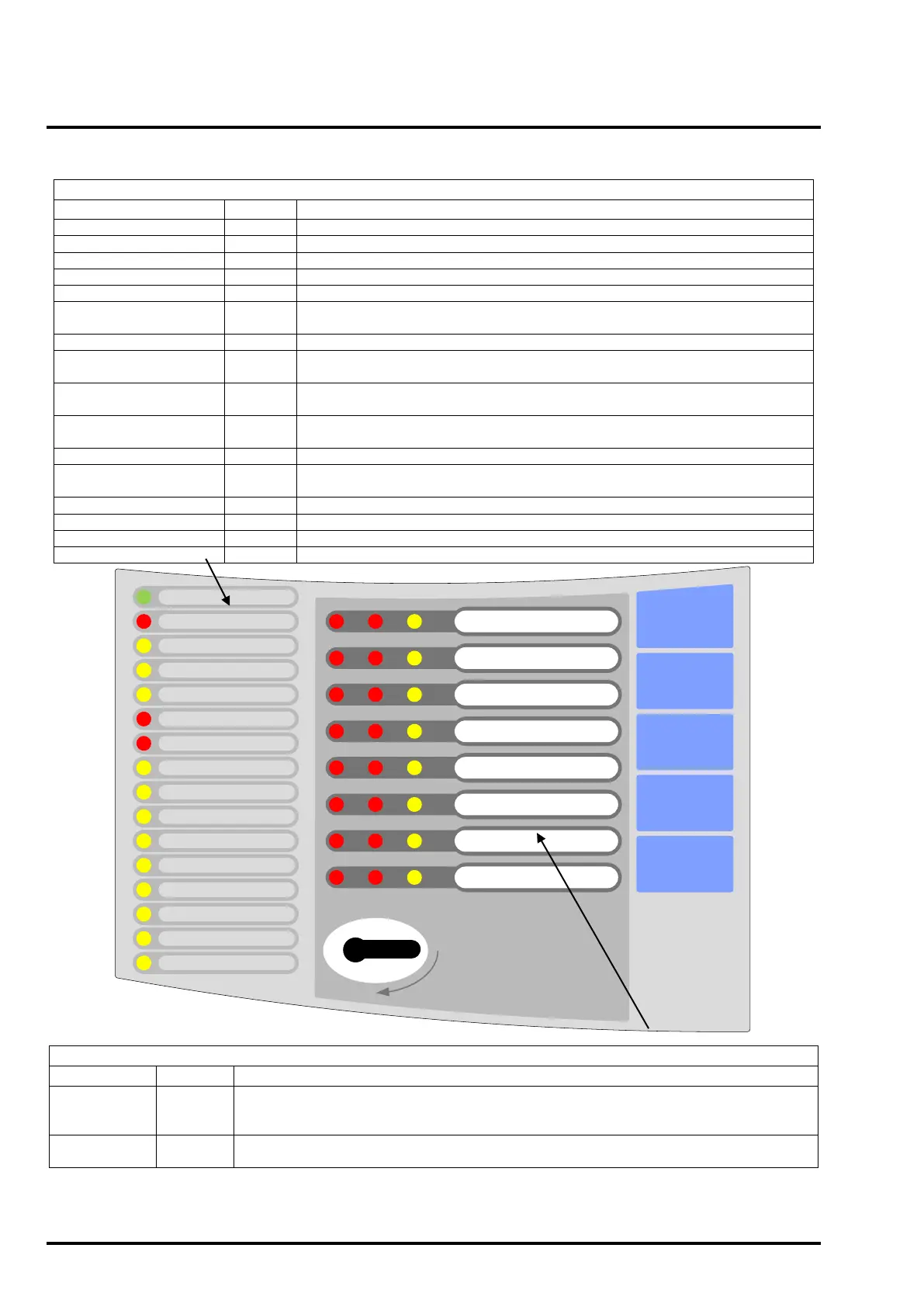

10.1 Repeater User Indications
SILENCE
BUZZER
SILENCE /
RESOUND
ALARMS
RESET
TEST
EVACUATE
SUPPLY ON
GENERAL FIRE
GENERAL FAULT
GENERAL TEST
GENERAL DISABLE
ALERT / EVAC ON
FIRE SIGNAL ON
FIRE SIGNAL FAULT
SNDR FLT / DIS / TEST
REPEATER FAULT
REPEATER PSU FAULT
PANEL PSU FAULT
EARTH FAULT
COMM FAULT
REMOTE I/P FAULT
CONTROLS ON
1
2
3
4
5
6
7
8
General Indicator Section
Indicator
Colour
Operating Condition
Supply On
Green
OFF: No mains or battery power, ON: Panel has power (battery and/or mains)
General Fire
Red
OFF: Quiescent, FLASH: New Alarm Condition, ON: Alarm Accepted
General Fault
Yellow
OFF: No faults present, FLASH: One or more faults present
General Test
Yellow
OFF: No circuits in Test, ON: One or more circuits in Test
General Disablement
Yellow
OFF: No circuits Disabled, ON: One or more circuits Disabled
Alert/Evac On
Red
OFF: No Alert or Evacuate, FLASH: Remote Alert active. ON: Remote Evacuate
active
Fire Signal On
Red
OFF: Fire Signal output not active, ON: Fire Signal output active
Fire Signal Flt / Dis / Tst
Yellow
OFF: No fault on Fire Signal output, FLASH: Fault on Fire Signal output,
ON: Fire Signal output Disabled or in Test
Sounder Flt / Dis / Tst
Yellow
OFF: No Fault on Sounder circuits, FLASH: Fault on one or more Sounder
circuits, ON: Sounder circuits Disabled or in Test
Repeater Fault
Yellow
OFF: Repeater is working correctly, ON: Repeater is in the SAFE state
(Microcontroller failed)
Repeater PSU Fault
Yellow
OFF: Power supply is healthy, FLASH: PSU fault and/or battery fault
Panel PSU Fault
Yellow
OFF: Panel power supply is healthy, FLASH: Panel PSU has fault or Auxiliary
24Vdc output fuse activated
Earth Fault
Yellow
OFF: No cable faults to Earth, FLASH: One or more cable faults to Earth
Communication Fault
Yellow
OFF: Communication with Panel, FLASH: No communication with Panel
Remote Control Fault
Yellow
OFF: No faults on Remote Control input, FLASH: Fault on Remote Control input
Controls On
Green
OFF: User Controls disabled, ON: User Controls enabled
Zone Location Indications
Indicator
Colour
Operating Condition
User Zone
Location Text
Red
OFF: No Alarm on zone, FLASH: New Alarm on zone, ON: Alarm accepted on zone.
NOTE: With Detector/MCP discrimination, the left LED is for Detectors, the right LED for
MCPs.
User Zone
Location Text
Yellow
OFF: No Fault on zone circuit, FLASH: Fault on zone circuit, ON: Zone circuit Disabled or in
Test
