11. Circuit Connection Details
11.1 DUO-CEL Panel Motherboard Termination Details
Figure 6 below shows the available field wiring terminals for the DUO-CEL Panel.

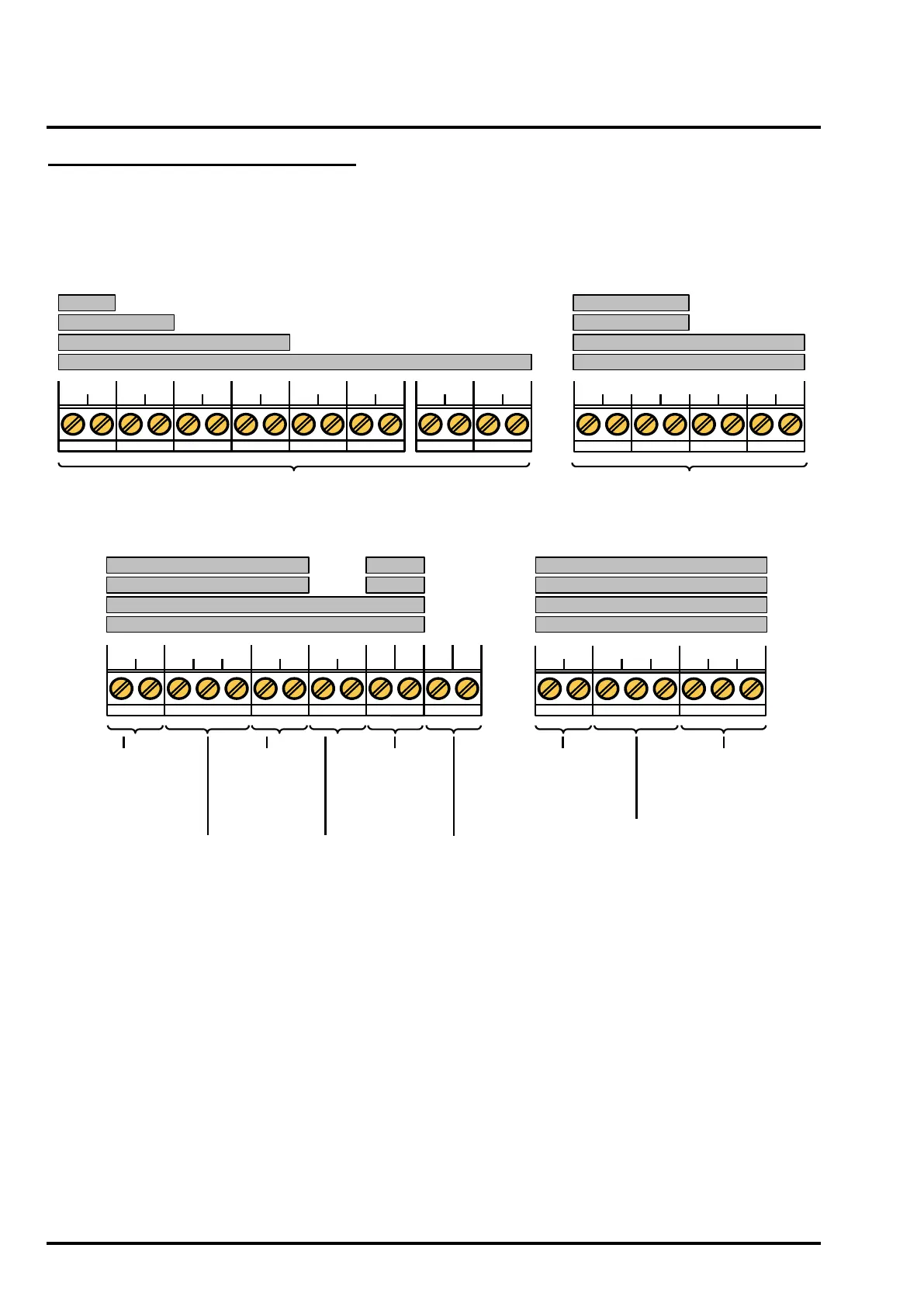

Figure 6 – DUO-CEL Panel field terminations
RS485
COMMS.
TERMINALS
ZONE 1
Z1 + Z1 –
ZONE 2
Z2+ Z2 –
ZONE 3
Z3+ Z3 –
ZONE 4
Z4+ Z4 –
ZONE 5
Z5+ Z5 –
ZONE 6
Z6+ Z6 –
ZONE 7
Z7+ Z7 –
ZONE 8
Z8+ Z8 –
8 ZONE
4 ZONE
2 ZONE
1 ZONE
SOUNDER OUTPUT
CIRCUITS
ALARM CIRCUITS
AL1+ AL1– AL2+ AL2– AL3+ AL3 – AL4+ AL4 –
8 ZONE
4 ZONE
2 ZONE
FIRE SIGNAL
+
–
FIRE RELAY
N/O P N/C
FAULT RELAY
N/O P N/C
NOT PRESENT
ON PANEL
REPEATER
A B BA0V24V
REMOTE
I/P 0V DIS.
EVAC.
BUZ.
AUX 0.25A
24V 0V
FUSED
24VDC
OUTPUT FOR
REPEATERS
ETC.
REMOTE
CONTROL INPUT:
Class Change
Alert
Evacuate
Silence Alarms
Reset System
REMOTE
OUTPUTS:
Disabled
Evacuate
Buzzer Active
FAULT RELAY
CONTACTS:
Normally Closed
Pole
Normally Open
FIRE SIGNAL
OUTPUT
FIRE RELAY
CONTACTS:
Normally Closed
Pole
Normally Open
8 ZONE
4 ZONE
2 ZONE
1 ZONE
8 ZONE
4 ZONE
2 ZONE
1 ZONE
ZONE DETECTION CIRCUITS
1 ZONE
2 ZONE
1 ZONE
UNFUSED
24VDC
OUTPUT
REMOTE O/PS
