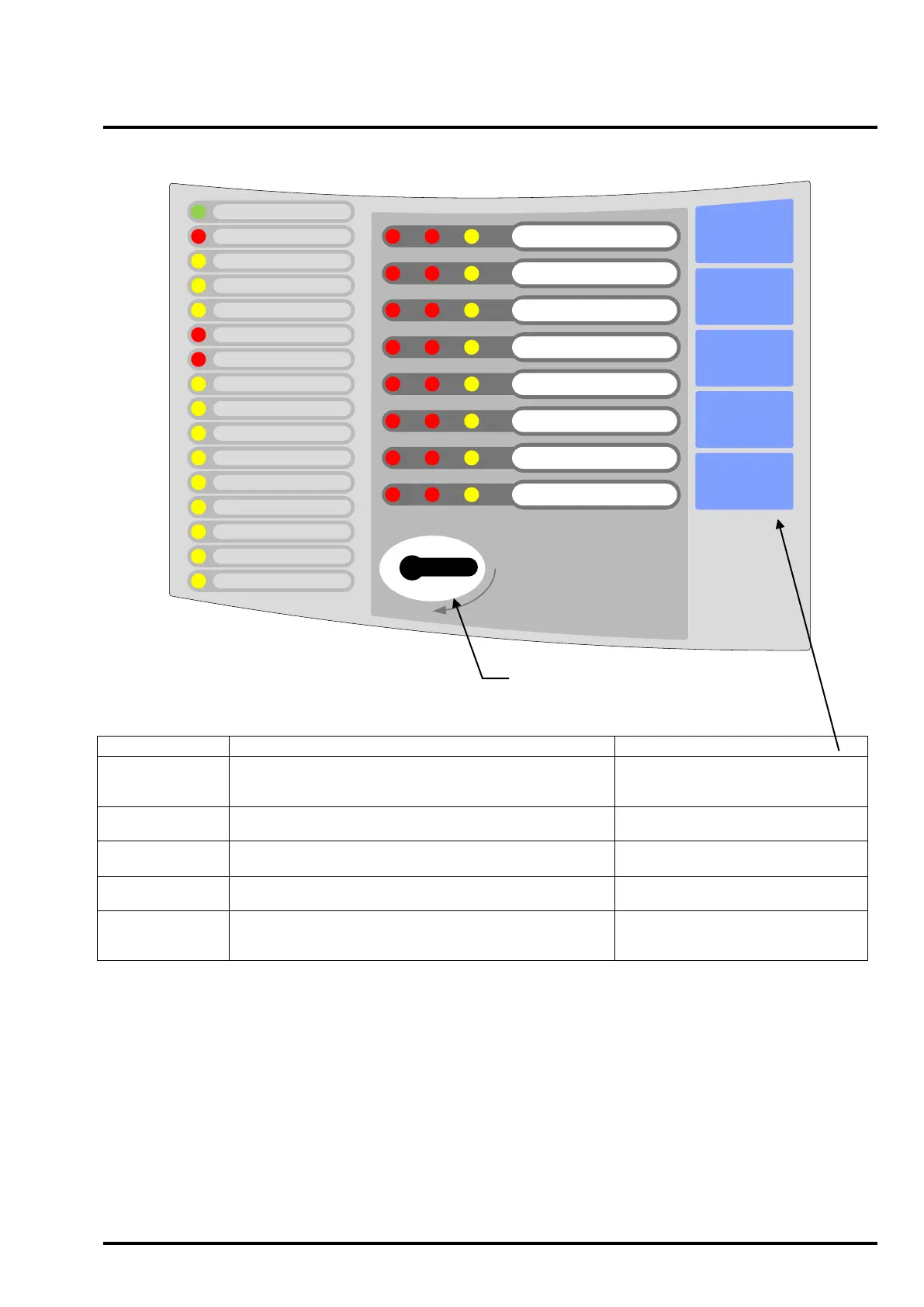

10.2 Repeater User Controls
SILENCE
BUZZER
SILENCE /
RESOUND
ALARMS
RESET
TEST
EVACUATE
SUPPLY ON
GENERAL FIRE
GENERAL FAULT
GENERAL TEST
GENERAL DISABLE
ALERT / EVAC ON
FIRE SIGNAL ON
FIRE SIGNAL FAULT
SNDR FLT / DIS / TEST
REPEATER FAULT
REPEATER PSU FAULT
PANEL PSU FAULT
EARTH FAULT
COMM FAULT
REMOTE I/P FAULT
CONTROLS ON
1
2
3
4
5
6
7
8
Switch
Functionality
Button Availability
Evacuate
Operates all sounders continuously and illuminates the
Alert/Evac On LED until the Silence/Resound Alarms
button is operated
When controls are unlocked.
Silence Buzzer
Silences the internal buzzer on the Panel & Repeaters.
When controls are Locked or
unlocked
Silence/Resound
Alarms
When any sounders are active, press to silence sounders.
Press again to resound the silenced sounders.
When controls are unlocked
Reset
Press to clear any fault & alarm conditions and return the
panel to the quiescent state
When controls are unlocked
Test
Press to illuminate all LEDs and sound the buzzer for 5
seconds
When controls are locked
Access Controls Keyswitch
