EQUIPMENT: FIRECLASS DUO-CEL
PUBLICATION: OM_DUO-CEL_APP
ISSUE No. & DATE: 2 20/06/18
PAGE 5 of 46

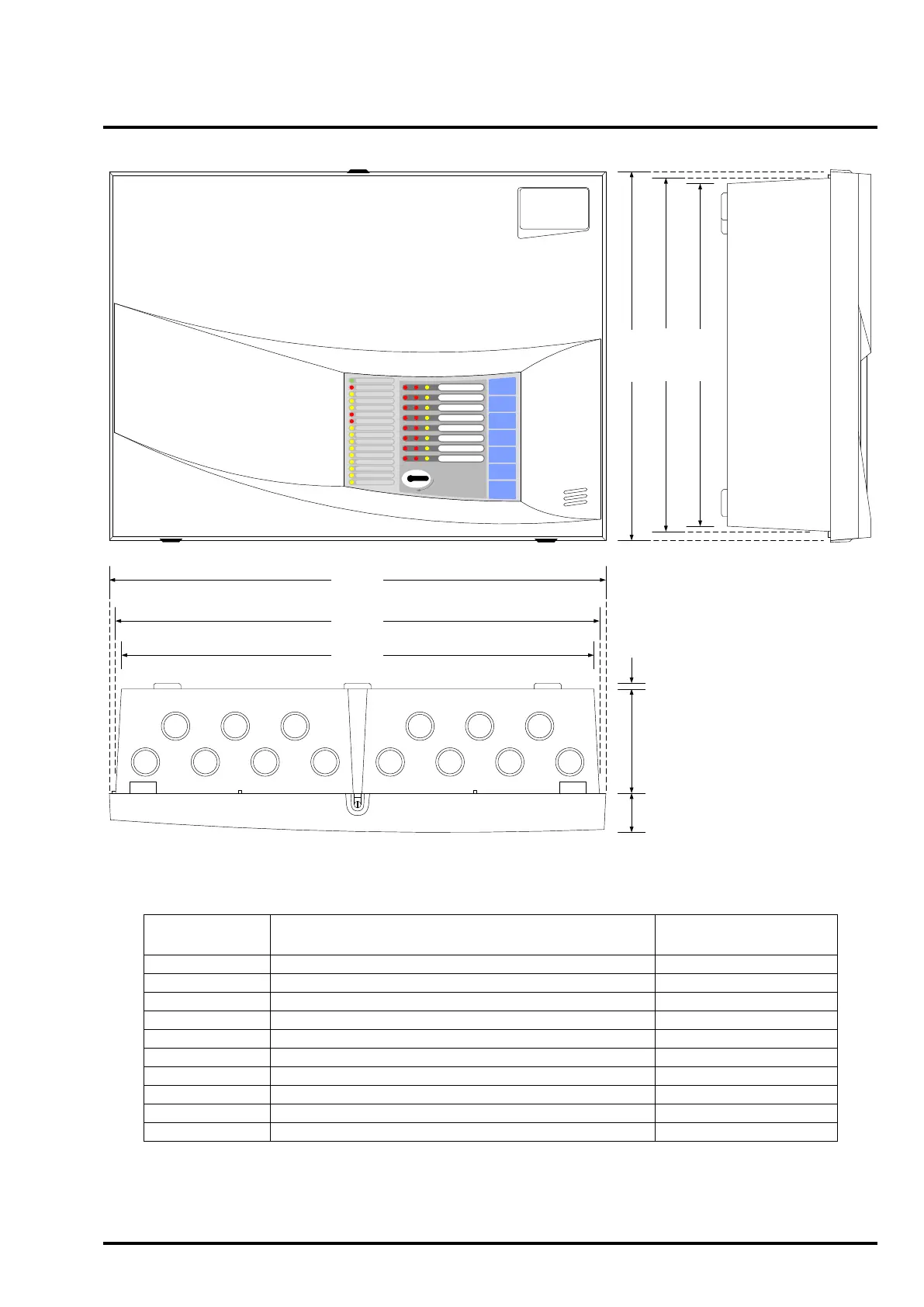

Figure 1 – Panel/Repeater Enclosure external view
254 mm
262 mm
273 mm
365 mm
356 mm
348 mm
4 mm
77 mm
29 mm
SILENCE
BUZZER
SILENCE /
RESOUND
ALARMS
RESET
DISABLE
TEST
EVACUATE
SELECT
SUPPLY ON
GENERAL FIRE
GENERAL FAULT
GENERAL TEST
GENERAL DISABLE
ALERT / EVAC ON
FIRE SIGNAL ON
FIRE SIGNAL FAULT
SNDR FLT / DIS / TEST
SYSTEM FAULT
PSU FAULT
FUSED FAILED
EARTH FAULT
REPEATER FAULT
REMOTE I/P FAULT
CONTROLS ON
1
2
3
4
5
6
7
8
2.1.1 Panel Order Codes & Descriptions
CEL Part No.
Description
Internal SLA Battery
(Not Supplied)
508.031.701
1 Zone Panel – Standard
24V, 3.4Ah
508.031.707
1 Zone Panel – Twin-Wire
24V, 3.4Ah
508.031.702
2 Zone Panel – Standard
24V, 3.4Ah
508.031.708
2 Zone Panel – Twin-Wire
24V, 3.4Ah
508.031.703
4 Zone Panel – Standard
24V, 3.4Ah
508.031.709
4 Zone Panel – Twin-Wire
24V, 3.4Ah
508.031.704
8 Zone Panel – Standard
24V, 3.4Ah
508.031.710
8 Zone Panel – Twin-Wire
24V, 3.4Ah
508.031.705
8 Zone Repeater c/w Mains AC Power Supply
24V, 3.4Ah
508.031.706
8 Zone Repeater – DC Powered From Panel
N/A
