Panda fpControl

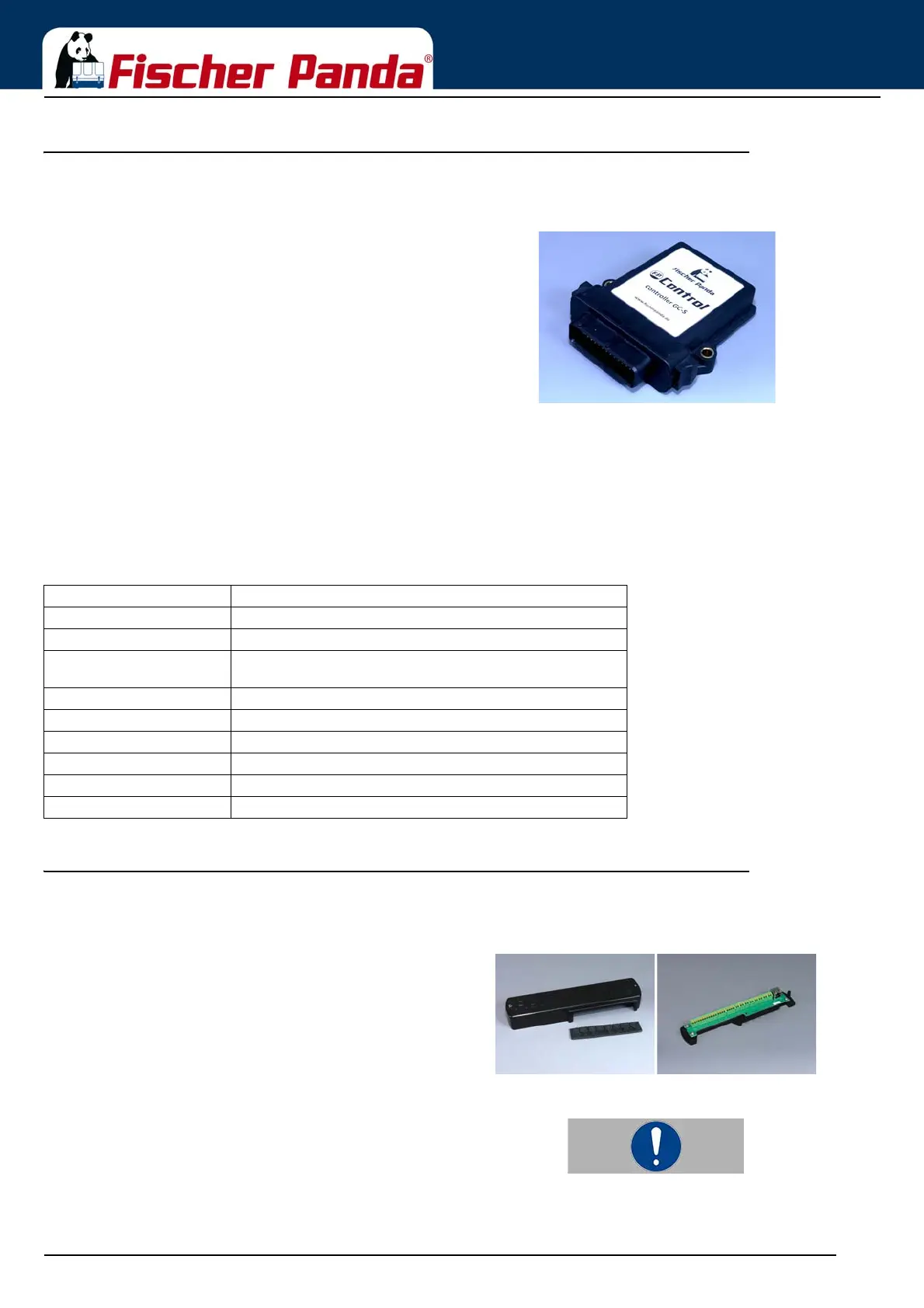

Page 10 - Chapter 2: Panda fpControl 27.5.20
2.1.2 fpControl - GC-S
(Generator Control - Servo)
Fig. 2.1.2-1: Generator Control - ServoMain module of the fpControl.
The module contains the control electronics.
The fpControl GC-S is usually installed in the generator
capsule.
The fpControl GC-S takes over the monitoring and control of
the diesel engine of the Fischer Panda generator, as well as
the control of the output voltage and frequency of the
generator.
The fpControl GC-S is suitable for 12 V and 24 V starting systems. The connected actuators are supplied with power
via switching outputs with input voltage.
Current measurement is single-phase and can be done directly. A voltage sensor is not necessary. Current
measurement takes place via an external current sensor. An additional three-phase module can be used for 3-phase
generators.
2.1.2.1 Environmental specifications, physical data of the fpControl GC-S
2.1.3 fpControl - CB-G
(Connection Box - Generator)
Fig. 2.1.3-1: Connection Box - GeneratorThe fpControl CB-G is usually installed in the generator
capsule (externally).
The fpControl CB-G is the external terminal block for the
fpControl generator.
The control element and the fuel pump are connected here.
Emergency stop devices, auto-start devices, load relays and
boosters can be connected as options.
Note:Only qualified electricians may perform work on the
fpControl
CB-G.
Ambient temperature -40 °C – +125 °C (max.)
Operating temperature 90 °C
Supply voltage 12 V or 24 V, automotive (12–13,5 V or 24–28 V)
Rated current consumption < 66 mA @ 12 V
< 77 mA @ 24 V
Housing Automotive, PBT GF30
Protection class IP65
Overall dimensions 117 mm x 136 mm (inkl. Stecker)
Weight 0,25 kg
FP part number 0029554
Circuit board FP1704
