Panda fpControl
Page 12 - Chapter 2: Panda fpControl 27.5.20
2.1.4.1 fpControl CI-SAE J1939 connections
2.1.4.2 Environmental specifications, physical data of the fpControl CI-SAE J1939
2.1.4.3 fpControl Measurement Unit - MU-3ph/DC (fpControl MU-3ph/DC)

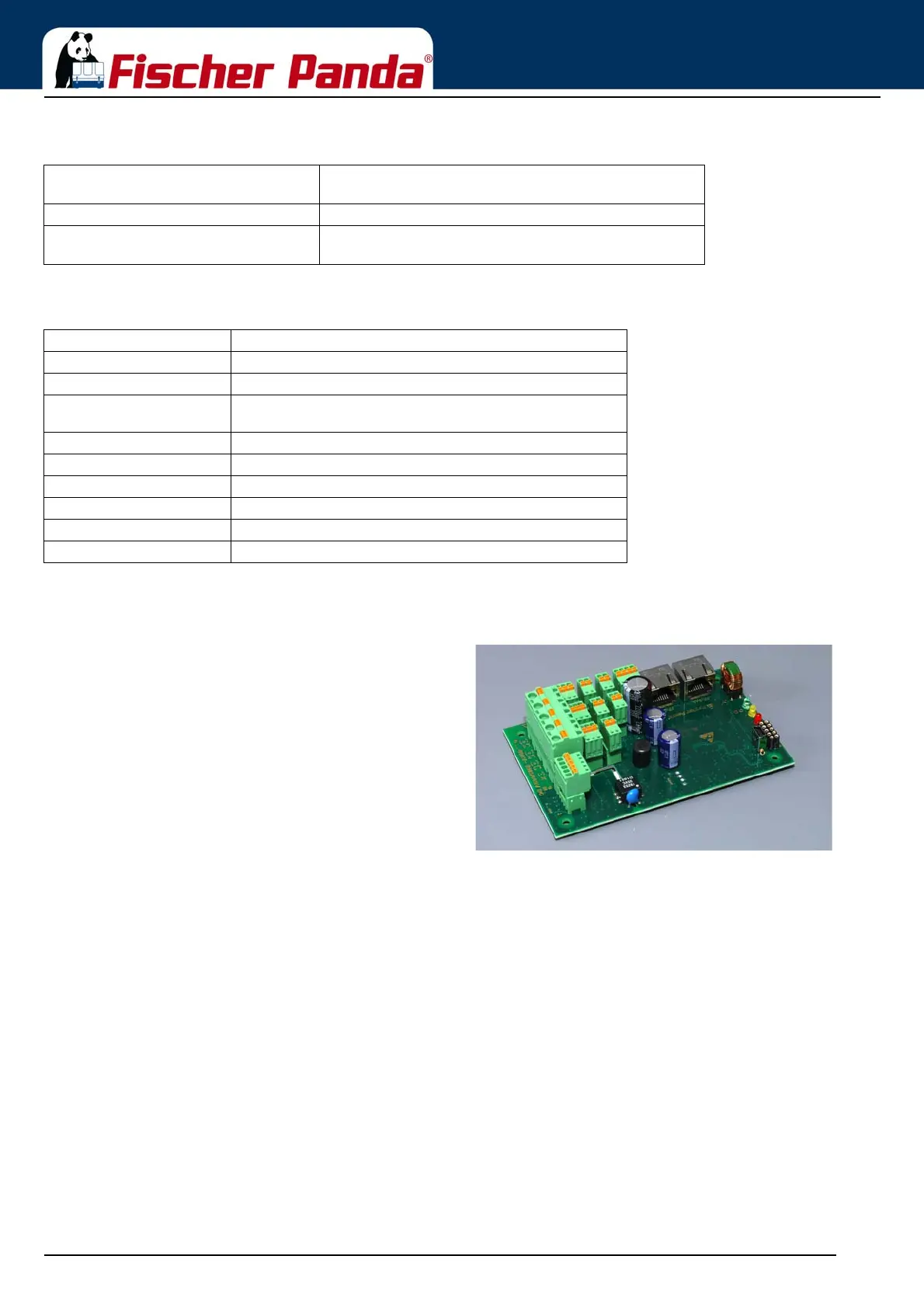

Fig. 2.1.4-1: fpControl Measurement Unit - MU-3ph/DCThe fpControl Measurement Unit - MU-3ph/DC« is used for
AC and DC generators. On AC generators, the module
measures the 3-phase AC voltage up to 400 V and three
times the AC current by means of an external sensor. When
used on DC generators, the module measures the 2-phase
DC voltage in a range from 12 V to 600 V and twice the DC
current by means of an external sensor.
2 x RJ45 Power supply and internal fpCAN
(FP CAN BUS 1)
2 x RJ45 external fpCAN (FP CAN BUS 2)
1 x 4-pole Phoenix contact socket Alternative for the external fpCAN
(USER CAN BUS)
Storage temperature -30 °C – +60 °C
Operating temperature -20 °C – +50 °C
Supply voltage 12 V or 24 V, automotive (12–13,5 V or 24–28 V)
Rated current consumption < 32 mA @ 12 V
< 17 mA @ 24 V
Housing ABS plastic
Protection class IP30
Overall dimensions 151 x 80 x 60 mm (L x B x H)
Weight 0,25 kg
FP part number 0006107
Circuit board FP1409
