27.5.20 Chapter 2: Panda fpControl - Page 13

2.1.4.4 fpControl MU-3ph/DC connections

2.1.4.5 Environmental specifications, physical data of the fpControl MU-3ph/DC

2.1.5 fpControl Measurement Unit - MM-3 (fpControl MM-3)

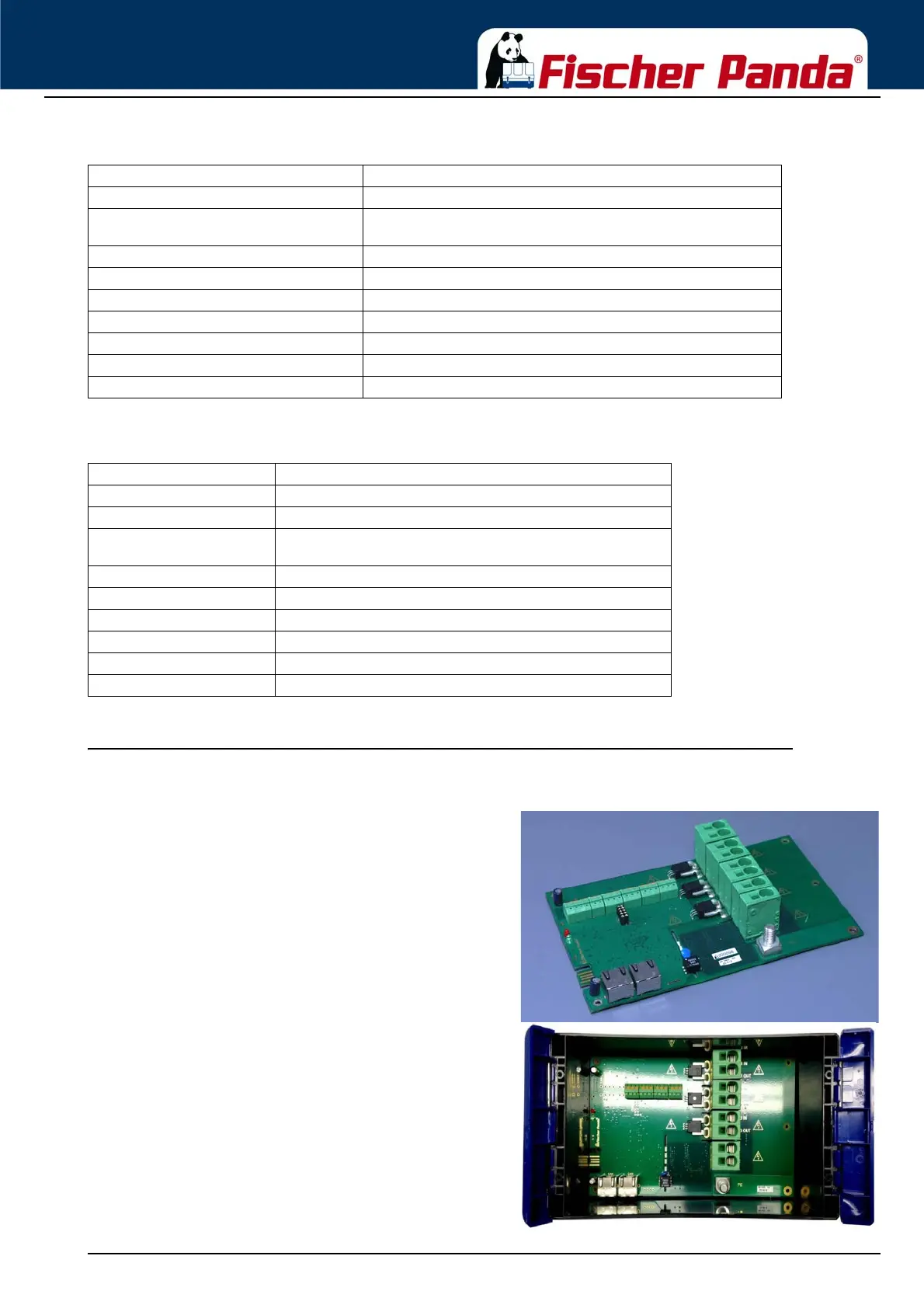

Fig. 2.1.5-1: fpControl Measurement Unit - MM-3 (fpControl MM-

The »fpControl Measurement Unit - MU-MM-3/DC« is used

for AC generators. The module measures the 3-phase AC

voltage and three times the AC current. Current

measurement is performed by the module directly by means

of three internal current sensors. The measuring range is 65

A per phase. Higher currents can be measured by means of

optional external current sensors.

Figure: »fpControl Measurement Unit - MM-3« (fpControl MM-3) - Circuit

board

Figure: »fpControl Measurement Unit - MM-3« (fpControl MM-3) in housing

2 x RJ45 Power supply and fpCAN

1 x 4-pole Phoenix contact socket Alternative for the external FP Bus (USER CAN BUS)

1 x 5-pole Phoenix contact socket AC: Voltage measurement L1, L2, L3 and N (0 … 400 V~ RMS) and PE or

DC: 3 x (+), 1 x (-), 1 x PE (669 V DC)

1 x 3-pole Phoenix contact socket external transformer L1

1 x 3-pole Phoenix contact socket external transformer L2

1 x 3-pole Phoenix contact socket external transformer L3

1 x 5-pole Phoenix contact socket Voltage measurement (0 … 69 V DC) 3 x (+), 1 x (-), 1 x PE

3 x 2-pole Phoenix contact socket Temperature sensor

1 x 2-pole Phoenix contact socket Boost

1 x 2-pole Phoenix contact socket AUX

Storage temperature -30 °C – +60 °C

Operating temperature -20 °C – +50 °C

Supply voltage 12 V or 24 V, automotive (12–13,5 V or 24–28 V)

Rated current consumption < 139 mA @ 12 V

< 91 mA @ 24 V

Housing --

Protection class IP30

Overall dimensions 114 mm x 72,5 mm (L x B) (circuit board)

Weight 0,094 kg (circuit board)

FP part number 0029859

Circuit board FP1901
