Fischer Panda fpControl - fpControl CB-G Connections and Data; fpControl CAN Interface SAE J1939

Panda fpControl

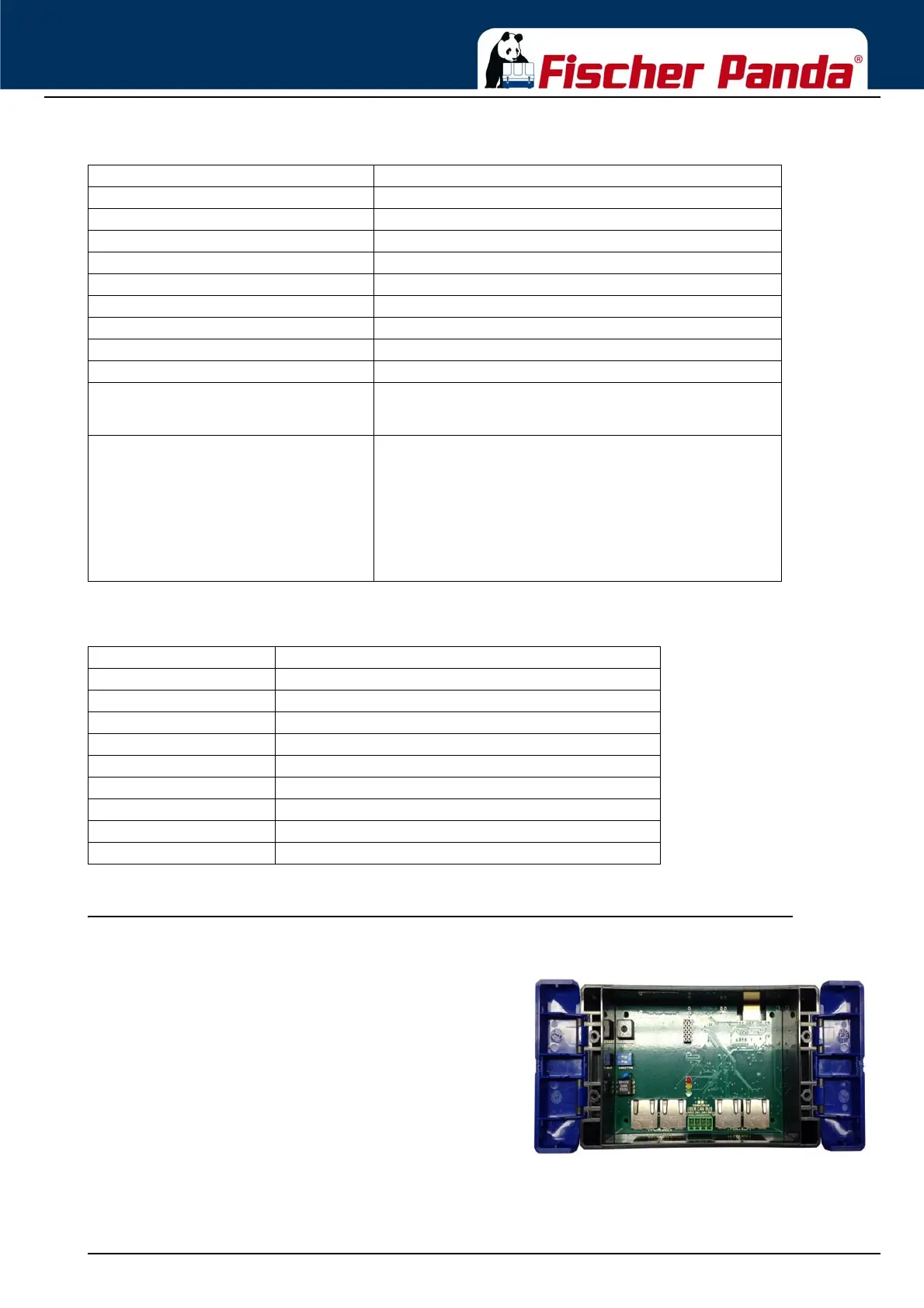

27.5.20 Chapter 2: Panda fpControl - Page 11
2.1.3.1 fpControl CB-G connections
2.1.3.2 Environmental specifications, physical data of the fpControl CB-G
2.1.4 fpControl CAN Interface - SAE J1939 (fpControl CI-SAE J1939)
Fig. 2.1.4-1: fpControl CAN Interface - SAE J1939The »fpControl CAN Interface - SAE J1939« manages the
communication between the »fpCAN« and an external SAE
J1939-CAN-BUS. The interface protects the the internal
»fpCAN« by filtering the data of the external CAN-Bus. The
internal and external CAN-Bus are galvanically isolated. The
fpControl CI-SAE J1939 is supplied with power via the
fpCAN.
Figure: »fpControl CAN Interface - SAE J1939« (fpControl CI-SAE J1939),
Illustration shows an older hardware status
1 x RJ45 Control Panel/fpCAN
1 x 2-pole Phoenix contact socket Boost relay/Inverter power supply
1 x 2-pole Phoenix contact socket Multifunction output 1 A)
1 x 2-pole Phoenix contact socket Multifunction output 5 A)
1 x 2-pole Phoenix contact socket Powerline relay
1 x 2-pole Phoenix contact socket Automatic start-up contact
1 x 2-pole Phoenix contact socket Emergency-stop
1 x 2-pole Phoenix contact socket Fuel pump (5 A)
1 x 2-pole Phoenix contact socket Water pump/Fan (5 A)
1 x 4-pole Phoenix contact socket Alternative for the fpCAN
1 x 4-pole Phoenix contact socket Boost relay
Universal output 1
Universal output 2
1 x 12-pole Phoenix contact socket Digital output - Water pump/Fan
Digital output - Fuel pump
Emergency-stop
Automatic start-up contact
Wake-up line
CAN-High
CAN-Low
Bus voltage
GND
Storage temperature -40 °C – +125 °C
Operating temperature -20 °C – +100 °C
Supply voltage without own power supply
Rated current consumption --
Housing Plastic
Protection class IP12
Overall dimensions 216,9 x 50,1 x 29,6 mm (L x B x H)
Weight 0,13 kg
FP part number 0000306
Circuit board FP1801
