Panda fpControl
27.5.20 Chapter 2: Panda fpControl - Page 43

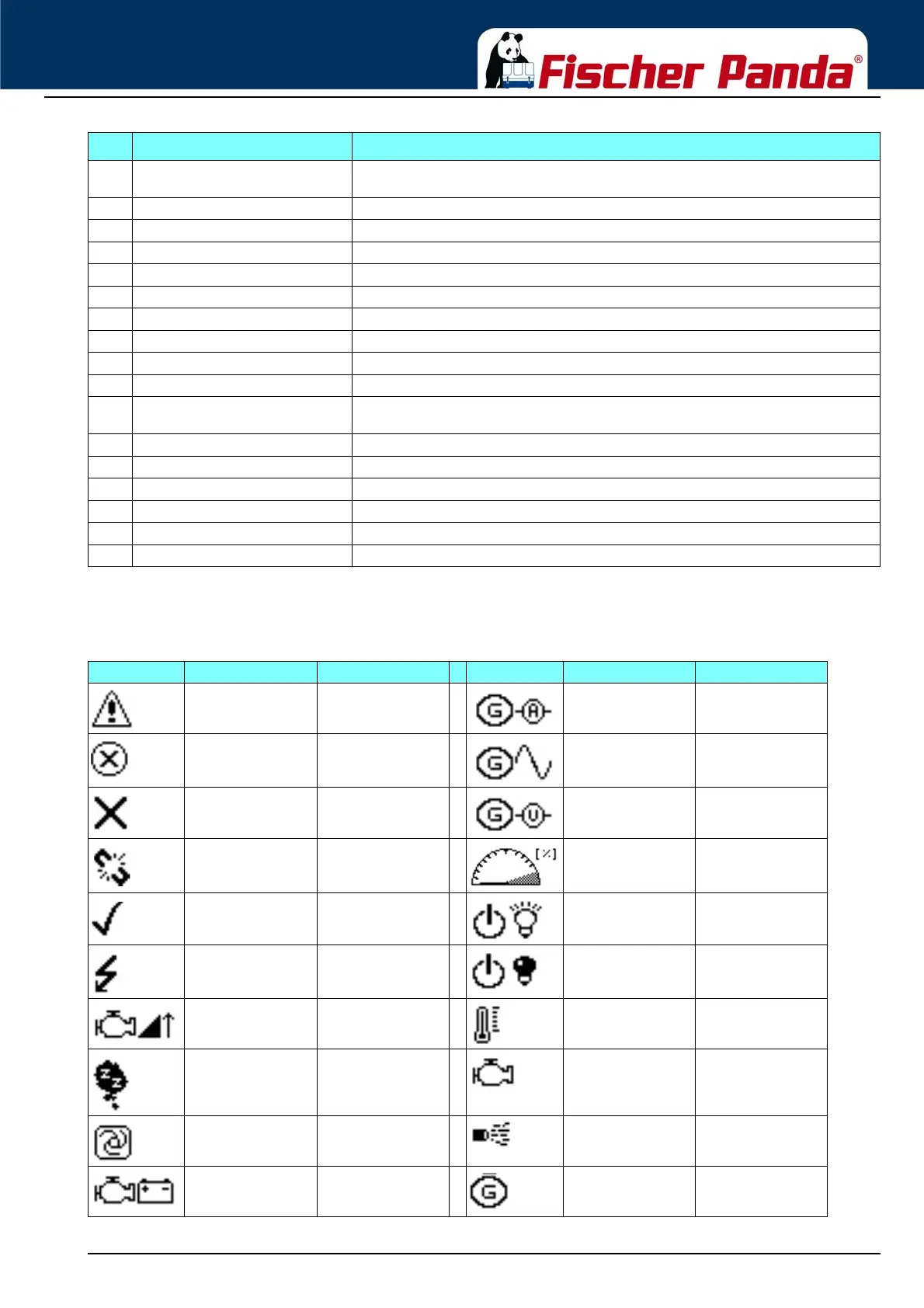

2.6.2.2 Description of the symbols
Fig. 2.6-1: Description of the symbols
139 Synchronisation module
communication
Communication with the synchronisation module has been interrupted
140 Load distribution Load balancing error
141 Synchronisation deactivated Synchronisation module deactivated
142 Error message from engine control unit The diesel engine control unit has generated a Red Stop Lamp Error
148 Rotary field error The phases are connected in the incorrect sequence
149 Fuel level sensor error Communication with the fuel level sensor has been interrupted
151 "Watchdog", control system restart Control system is restarted after a malfunction
152 Temperature Inverter L1 Temperature of L1 of the inverter above upper limit
153 Temperature Inverter L2 Temperature of L2 of the inverter above upper limit
154 Temperature Inverter L3 Temperature of L3 of the inverter above upper limit
155 Temperature Inverter DC intermediate
circuit
Temperature of the DC intermediate circuit of the inverter is above upper limit
157 Inverter communication Communication with the inverter has been interrupted
163 Inverter DC intermediate circuit load DC intermediate circuit current is above upper limit
164 Inverter DC intermediate circuit voltage Inverter DC intermediate circuit voltage too high
167 No rev analysis/Monitoring Simulation of the engine speed for start-up without inverter
245 Factory setting changed User input in Factory menu
251 Parameter changed in Admin Level User input in Admin menu
Symbol Description Symbol Description
WARNING Current Generator output
Error shutdown Frequency Generator output
Faults No contact Voltage Generator output
Broken Short circuit (%)/Load
OK Generator runs
AC Voltage Generator off
Run-up phase/Over-
ride
Generator start-up Temperature
Standby Engine
Automatic start-up. Exhaust system
Starter battery Winding
No. Description Basic
