27.5.20 Chapter 2: Panda fpControl - Page 17

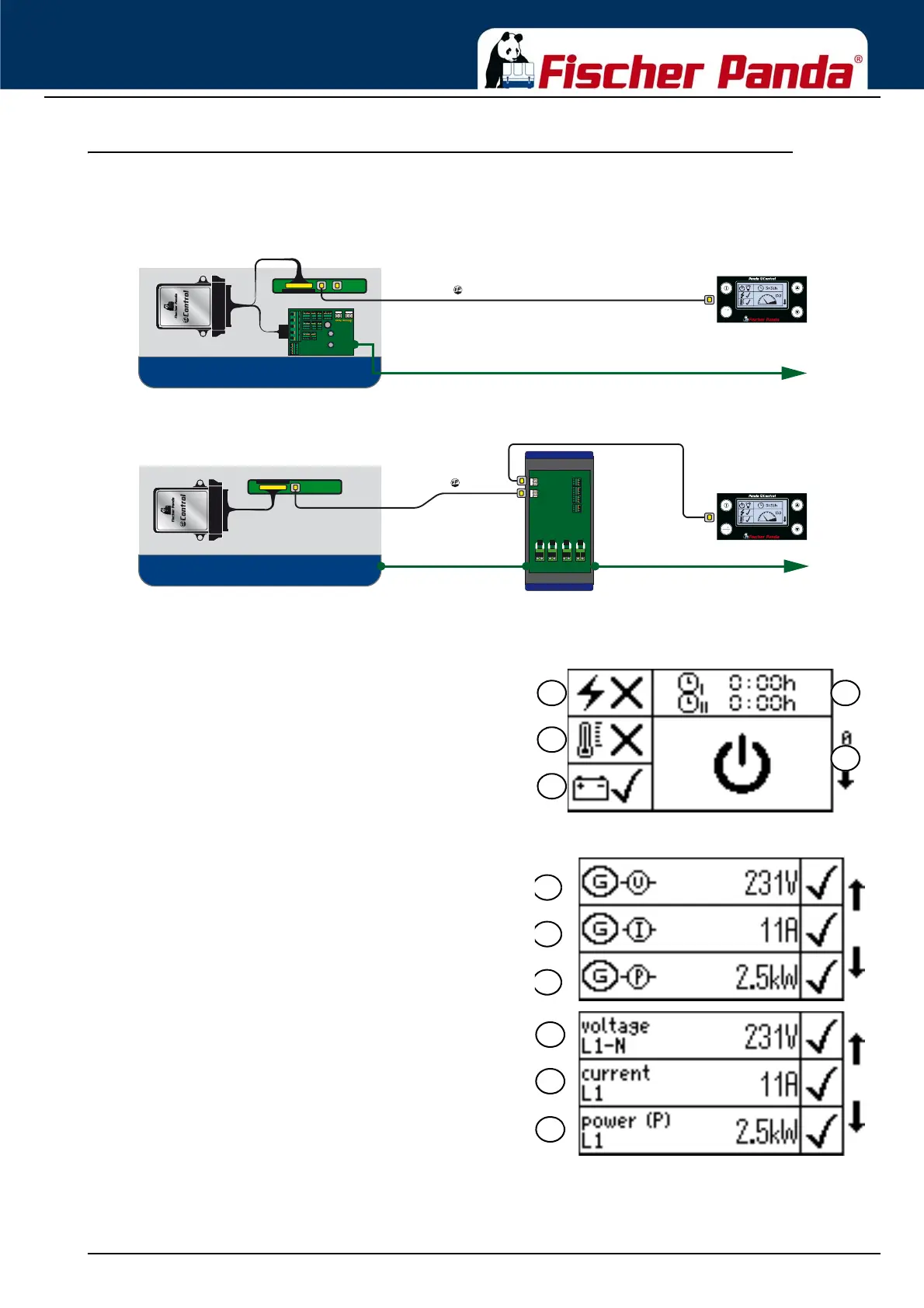

2.3.2 The fpControl VCS overview pages
The display mode/language of the display can be set in the menu.
Fig. 2.3.2-1: Symbols used - Overview Page 1Overview Page 1:
01. Generator Status (on/off)
02. AC OK
03. Temperature of the generator (OK/Error)
04. Operating hours of the generator
05. Info screen
Overview Page 1 is the same in all languages.
Fig. 2.3.2-2: Overview Page 2 Symbols/EnglishOverview Page 2 (Generator):
06. Output voltage [V]
07. Generator current [A]
08. Generator apparent power [kVA]
AC OutAC 1 Phase
Fischer Panda Asynchronous Generator
Controller GC-S
ǁǁǁĮƐĐŚĞƌƉĂŶĚĂĚĞ
Bus
AC 3 Phase
AC Out
Fischer Panda Generator
Controller GC-S
ǁǁǁĮƐĐŚĞƌƉĂŶĚĂĚĞ
Bus
01
02
03
05
04
06
07
08
06
07
08
