Panda fpControl

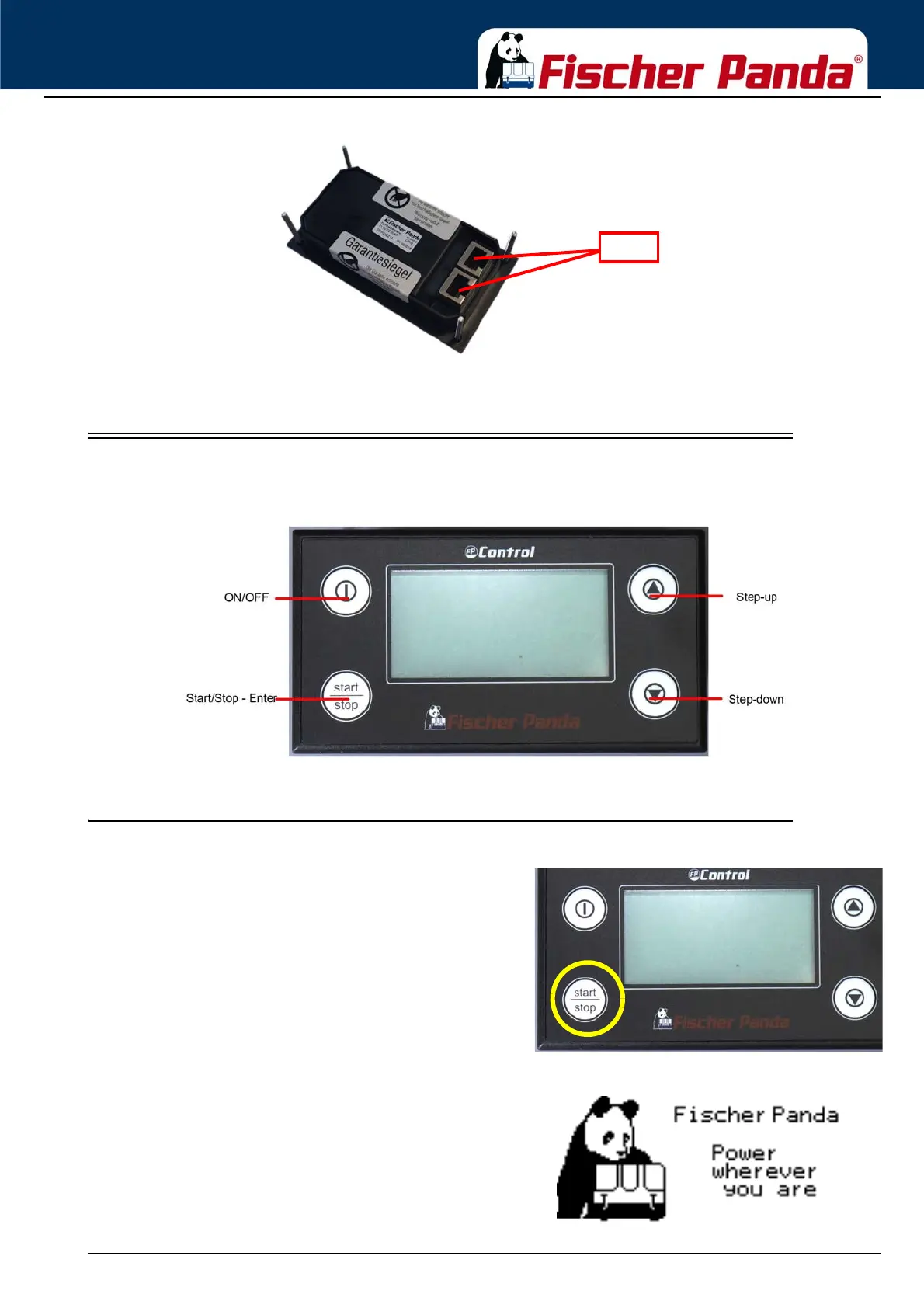

27.5.20 Chapter 2: Panda fpControl - Page 15
Fig. 2.2-1: fpControl CP-G rear
Fig. 2.2-2: Connection Diagram
2.3 Operation
The fpControl is operated by means of the fpControl CP-G panel.
Fig. 2.3-1: fpControl CP-G front with buttons
2.3.1 Switching on the generator
Fig. 2.3.1-1: Switching on the generatorPress the "ON/OFF" button to switch on the control
system of the generator.
The fpControl Generator thereby switches to "Standby
Mode".
If automatic starting is activated at the menu, the
generator can henceforth be started by means of an
external signal.
Fig. 2.3.1-2: Home PageThe CP-G Panel displays the home page for two seconds.
RJ45
