Panda fpControl
27.5.20 Chapter 2: Panda fpControl - Page 21

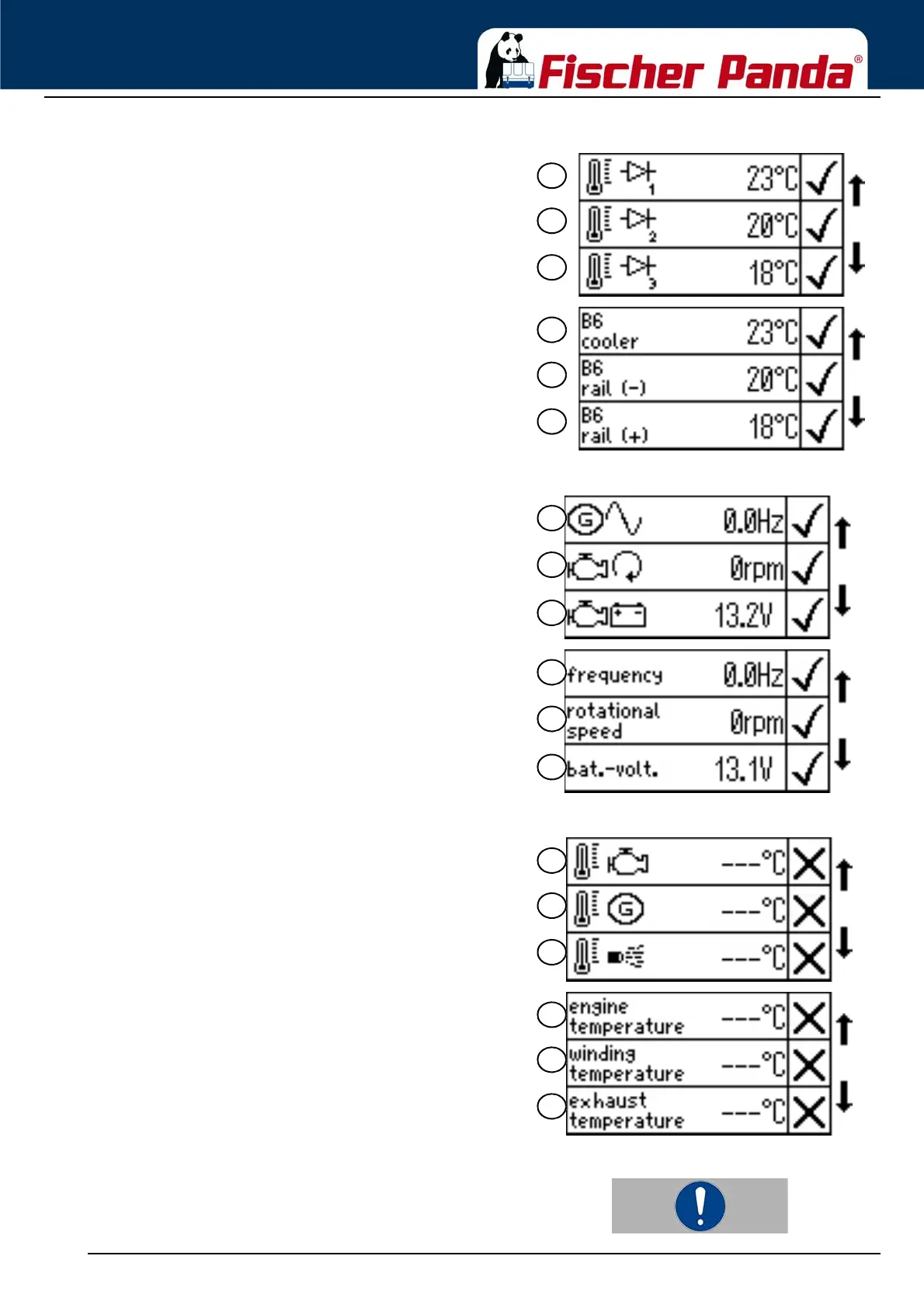

Fig. 2.3.3-3: Overview Page 3 Symbols/EnglishOverview Page 3:
14. Temperature of the diode plate fan
15. Temperature of the diode plate busbar (-)
16. Temperature of the diode plate busbar (+)
Fig. 2.3.3-4: Overview Page 4 Symbols/EnglishOverview Page 4:
06. Frequency of the generator [Hz]
07. Generator speed (r.p.m.)
08. Voltage of the starter battery [V]
Fig. 2.3.3-5: Overview Page 5 Symbols/EnglishOverview Page 5:
09. Temperature of the cylinder head
10. Temperature of the generator winding
11. Temperature at exhaust manifold
Note:If the information pages of optional components (e.g. fuel
gauge, oil pressure) are available, then these pages are
inserted after Overview Page 4.
Whether these pages are displayed automatically, always or
14
15
16
14
15
16
06
07
08
06
07
08
09
10
11
09
10
11
