7.3 Connecting outdoor unit
7.3.1 A-Version
Condensers (DMOUCD) that are supplied with A-Version Multi-DENCO units are pro-
vided with their OWN SEPARATE ISOLATOR.
For condensers, the following power and controls layouts are possible:

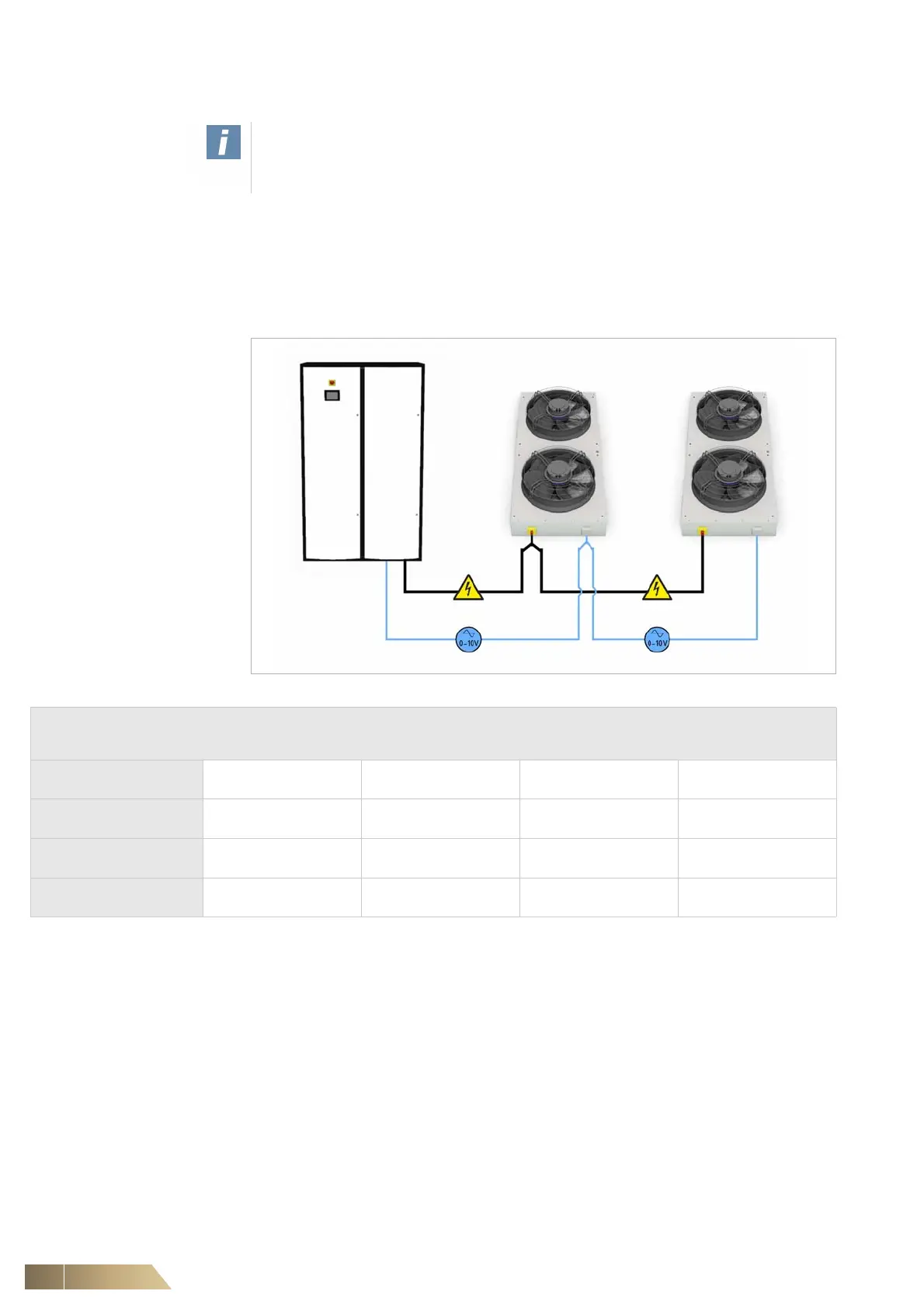

Fig. 7-4: EC fan installation
* Not available in size 008
** For AC units, Fig. 7-4 does not apply. Power cables must be installed for each condenser and connected to the indoor unit separately.
We recommend any 2 core screened data cable for control wiring, for example:
– Belden 8761
– Alpha 2401C
– BICCH8082
NOTE!
We STRONGLY recommend that the outdoor unit should be connected to the
indoor unit for its power supply.
1 Condenser 2 Condenser
Control Power Control Power
AC Fans Not Required 2 Core + Earth Not Required
2 Core + Earth
Separate Power**
AC fans with Winter Kit Not Required 3 Core + Earth Not Required
3 Core + Earth
Separate Power**
EC Fans* 2 Core Screened 3 Core + Earth 2 Core Screened 3 Core + Earth
EC Fans with Winter Kit* 2 Core Screened 4 Core + Earth 2 Core Screened 4 Core + Earth
Tab. 7-1
