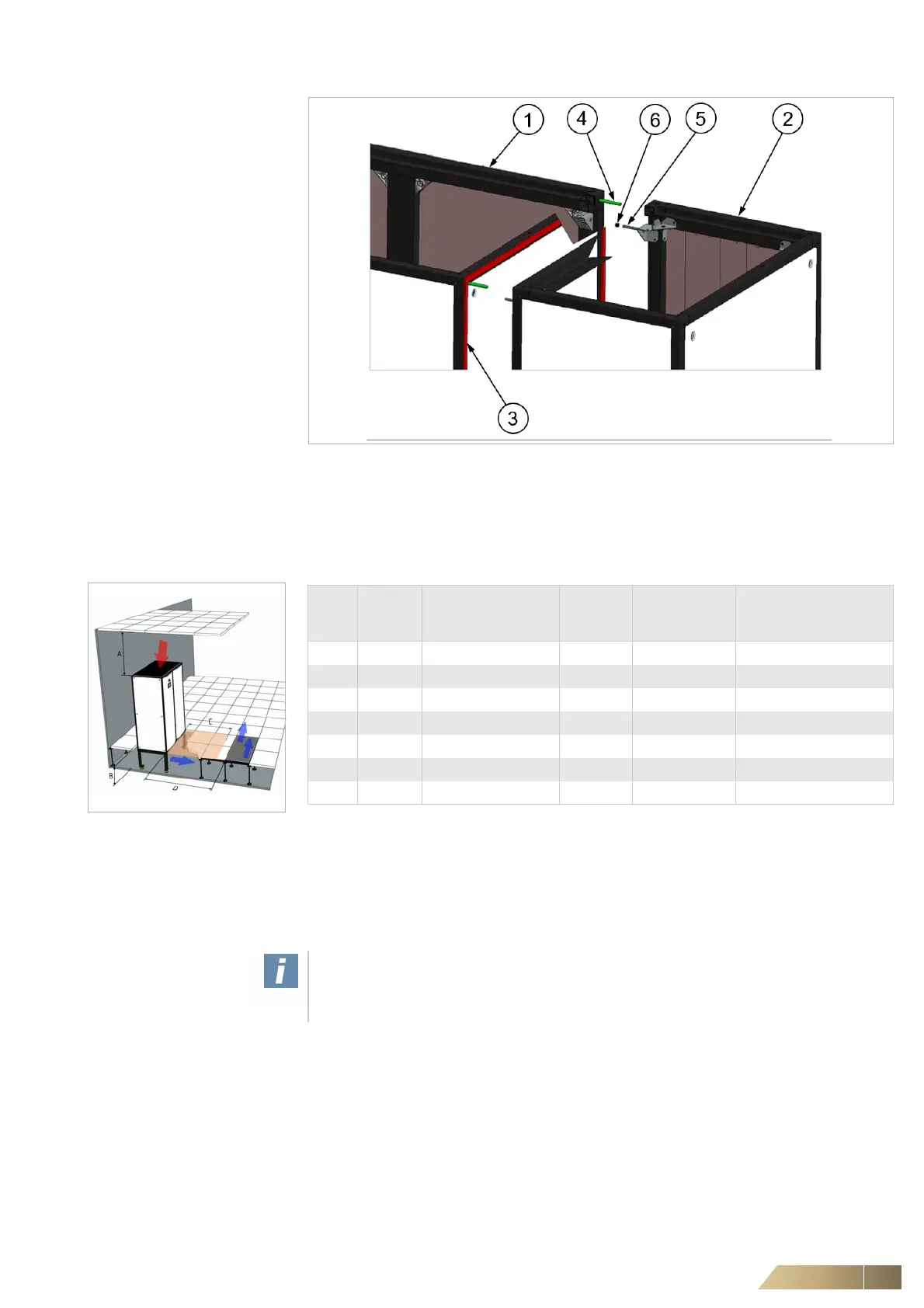

Fig. 5-14
5.4 Clearance and Access
5.4.1 Clearance
Fig. 5-15
Columns A, B and D are recommended minimum values to ensure satisfactory oper-
ation by your Multi-DENCO unit.
Column C is the mandatory minimum values to ensure service access for your
Multi-DENCO unit.
Size Unit
Width
mm
Clearance
above unit (A)
mm
Floor Void
(B)
mm
Service Access
(C)
mm
Distance to
first floor grille (D)
mm
010 600 300 300 600 2000
018 800 300 300 600 2000
030 1180 400 400 600 2000
045 1670 400 400 600 2000
065 1992 500 500 600 2000
092 2500 500 500 880 2000
130 3380 500 500 880 2000
Tab. 5-1
Note!
When the WaterCool Module of W-Version is mounted beside the main unit, addi-
tional width of the module must be added to the width column.
