5.5.4 Type with "H" module
Detail "Y"
Y
1
Y
2
2
3
4
*)
H

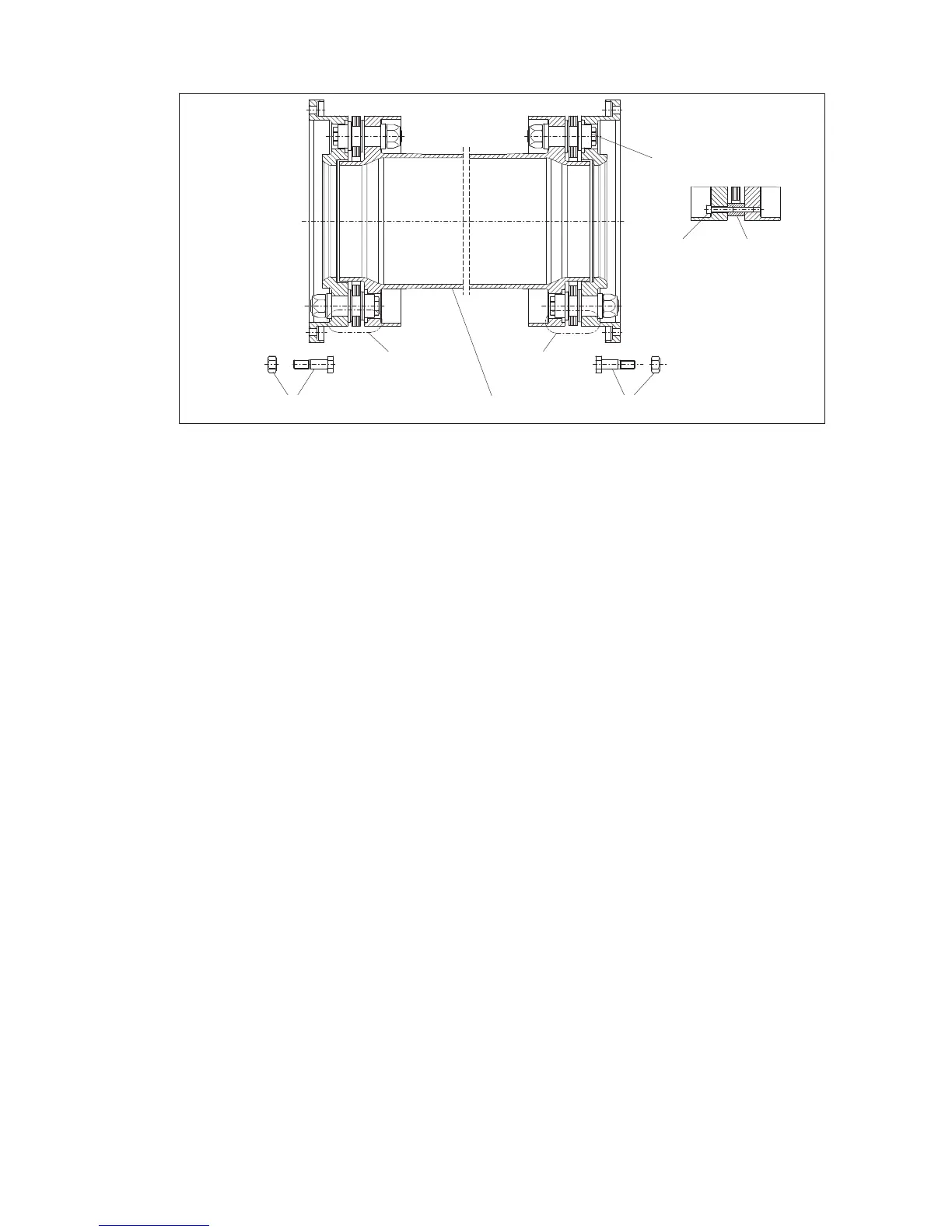

Fig. 16: Type with "H" module
1 "H" module (intermediate unit) 2 Screw connection of flange
3 Cheese-head bolt 4 Distance bushes
"Y" Fastening
*
)
The plate packs must not be demounted or retightened!
This type with the "H" module consist as a rule of two flanges, which are bolted to the customer’s flanges,
of two plate packs and an intermediate spacer.
The plate packs have been secured for the transport with special fastenings (spacer bushes and
cheesehead screws; see detail "Y" in figure 16).
The screw connections of the flanges (see figure 16) are delivered in separate packing units for each
coupling. The packing unit may contain additional spare screw connections.
Depending on the coupling version, shims may be delivered, which are used for compensating the shaft
distance "DBSE". The procedure is described in item 6.6.
