5.5.5 Special types
All types of the ART/ARE series are made up of individual coupling components (e.g. "M" hubs, "V"
spacers and/or "F" flanges) and coupling modules (e.g. "B" module and/or "H" module), which comprise
the plate packs.
Note
The exact arrangement of the coupling components, coupling modules, screw connections of the
flanges and further accessories such as shims can be found on the orderspecific drawing of the
coupling.
For the transport the plate packs of the coupling modules have been secured with fastenings. The design
of the fastenings depends on the type of coupling (see orderspecific drawing of the coupling).
1 2

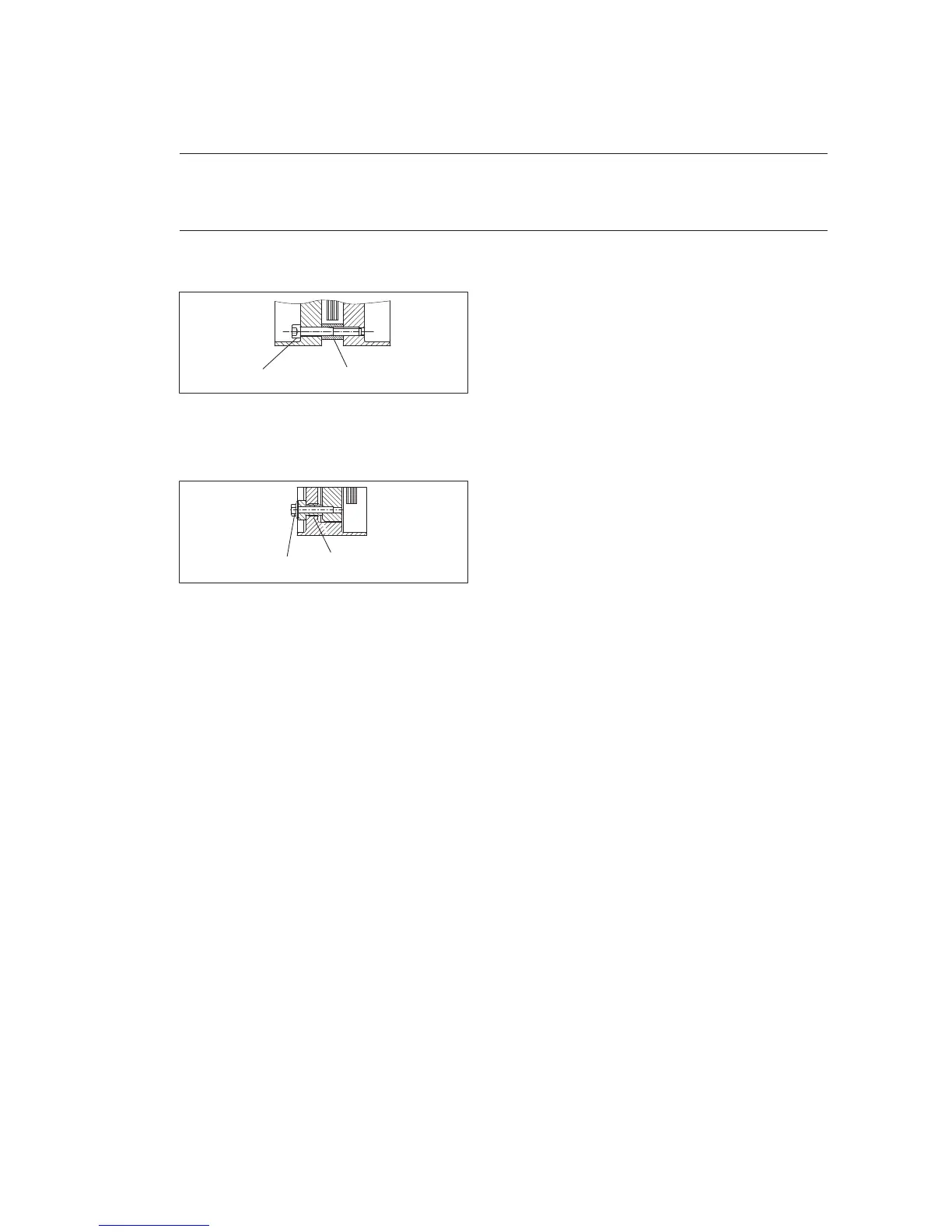

Fig. 17: Fastening of the plate packs with distance bush
1 Cheese-head bolt
2 Distance bush
1
2
Fig. 18: Fastening of the plate packs with threaded bush
1 Collar bolt
2 Threaded bush
The screw connections of the flanges are delivered in separate packing units for each coupling. The
packing unit may contain additional spare screw connections.
Depending on the coupling version, shims may be delivered, which are used for compensating the shaft
distance "DBSE". The procedure is described in item 6.6.
