5.2 Coupling types and component arrangement
All coupling types of the ART/ARE series are assembled from individual components (e.g. "M" hubs
and/or "F" flanges) and from coupling modules (e.g. "B" module and/or"H" module), which contain the
plate packs. The coupling components and coupling modules are joined together with flange screw
connections. Items 5.2.1 and 5.2.2 show both standard types and possible special types.
Note
The exact arrangement of the coupling components, coupling modules, screw connections of the
flanges and further accessories such as shims can be found on the orderspecific drawing of the
coupling.
5.2.1 Standard types
In the following figures 6, 7, 8 and 9 the four standard types, BVB, XVX, MHM, and the "H" module of
the ART/ARE series are shown.
*)
B
B
V
1
12
2
3

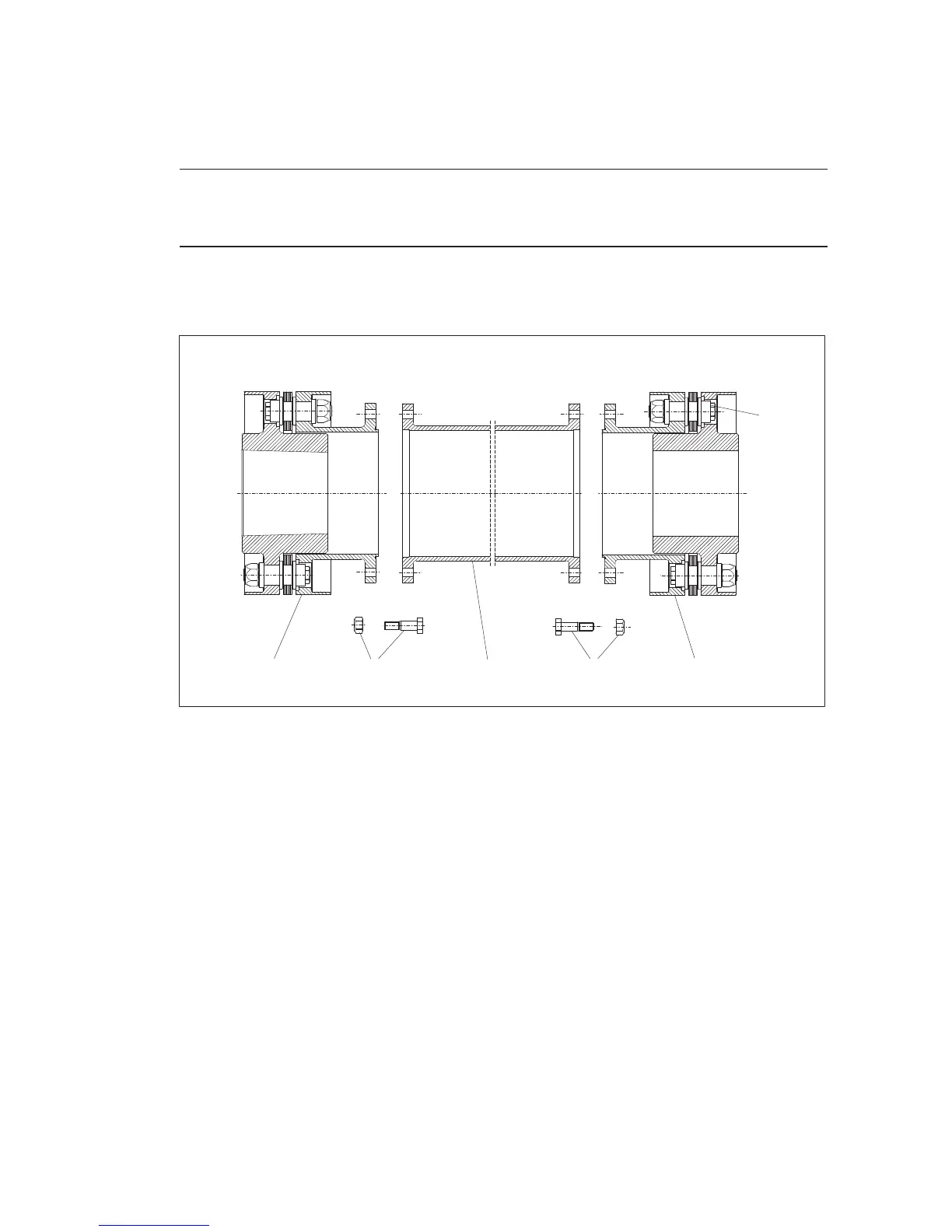

Fig. 6: Standard type BVB
1"B" module 2 Screw connection of flange
3"V"‐spacer (intermediate unit)
*
)
The plate packs must not be demounted or retightened!
