6.10.2 Fastening of coupling modules for the test run
Observe the safety instructions in section 6.1, "General information on fitting"!
WARNING
Risk of serious injury through flying fragments
Risk of serious injury through flying fragments and/or risk of damage to the coupling.
For running a test with the coupling modules the plate packs must imperatively be fastened with spacer
bushes and cheesehead bolts (see figure 39) or with threaded bushes and collar bolts (see figure 40).
The design of the fastening is shown on the orderspecific drawing of the coupling.

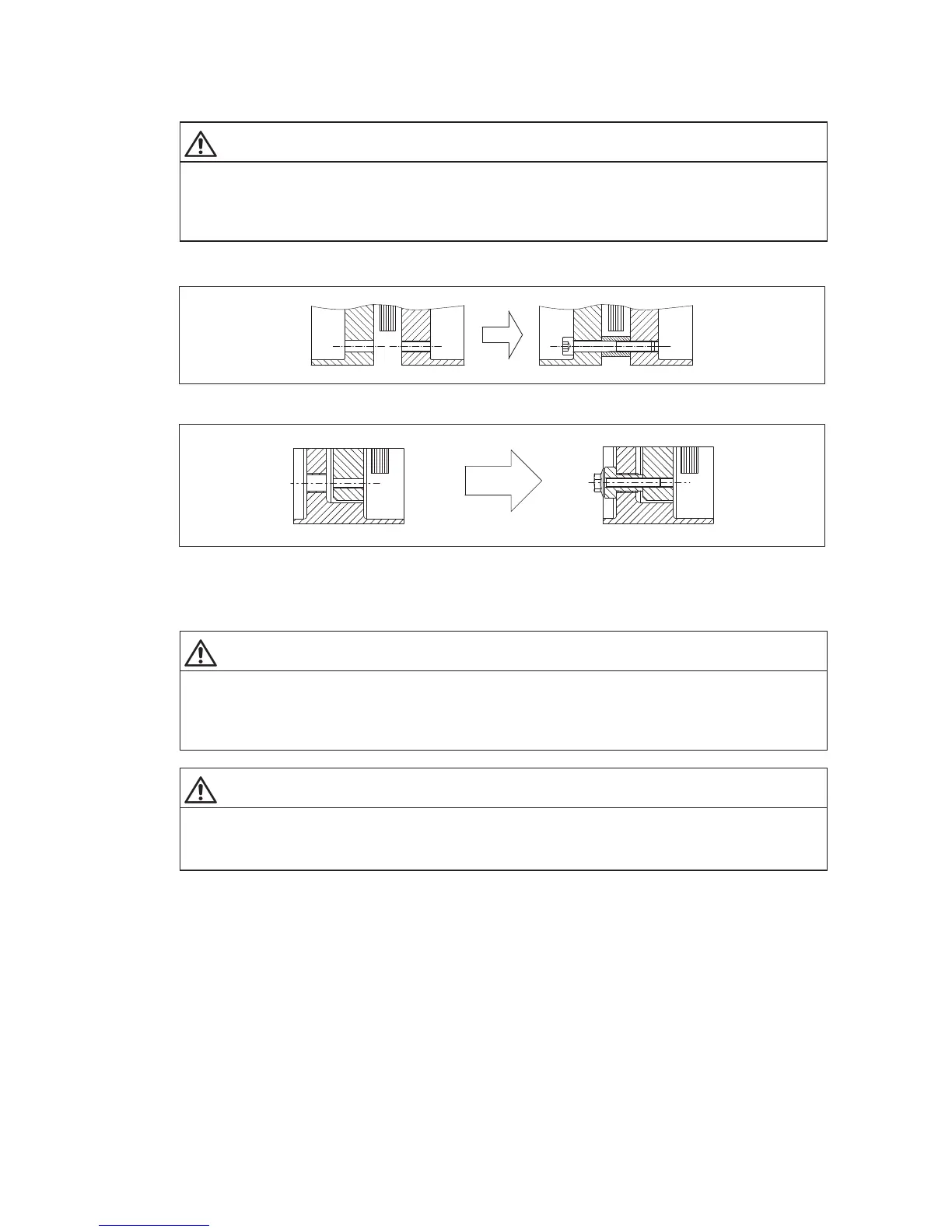

Fig. 39: Test run with fastening with distance bush
Fig. 40: Test run with fastening with threaded bush
The tightening torque of the bolts (see figure 39 or figure 40) can be found on the orderspecific drawing
of the coupling.
WARNING
Risk of serious injury through flying fragments
Risk of serious injury through flying fragments and/or risk of damage to the coupling.
The permissible speed during the test running of coupling modules (see "Fitting data" table on the
orderspecific drawing of the coupling) must not be exceeded.
WARNING
Risk of serious injury through flying fragments
Risk of serious injury through flying fragments and/or risk of damage to the coupling.
The coupling module must be axially secured.
