6.4.2 Fitting "F" flanges
Observe the safety instructions in section 6.1, "General information on fitting"!
Screw the "F" flange with the screw connection of the flange on the connecting flange of the machine to
be coupled (see figure 21). Tighten the screw connection of the flange gradually one after the other to the
prescribed tightening torque (for tightening torque, see orderspecific drawing of the coupling).
1323

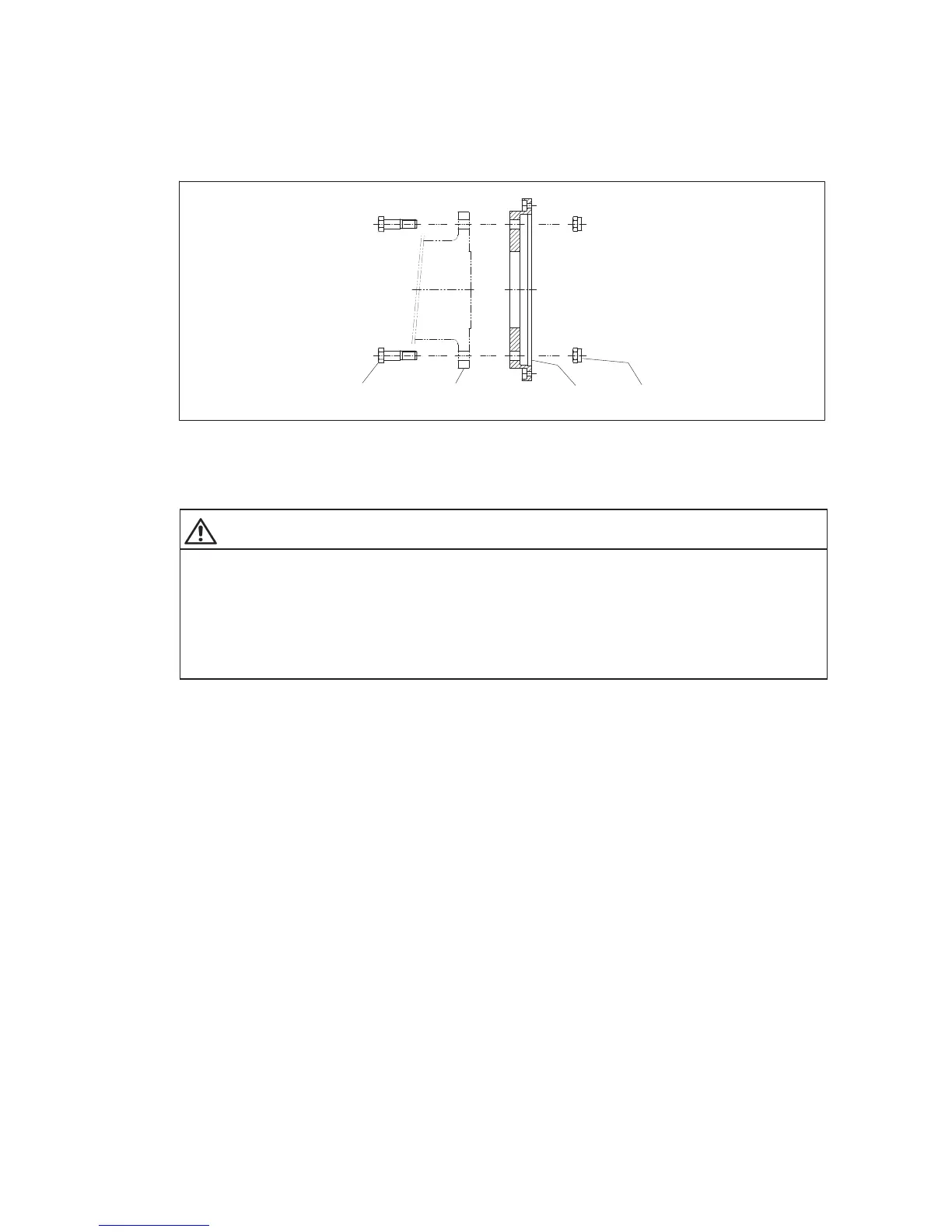

Fig. 21: Fitting "F" flanges
1"F" flange 2 Connecting flange
3 Screw connection of flange
WARNING
Risk of serious injury through flying fragments
Risk of serious injury through flying fragments and/or risk of damage to the coupling.
– Locking nuts must only be used three times, to guarantee the locking properties.
– Adhere to specified tightening torques. Observe the instructions relating to cleaning and/or treatment
of the bolts with auxiliary materials.
6.4.3 Fitting "F" and "D" modules
Observe the safety instructions in section 6.1, "General information on fitting"!
Screw the "F" or "D" module with the screw connection of the flange to the already fitted "F" flange or with
the screw connection of the flange to the connecting flange of the machines to be coupled (see figure 22).
Tighten the screw connection of the flange gradually one after the other to the prescribed tightening torque
(for tightening torque, see orderspecific drawing of the coupling).
