Remove the intermediate unit (see figs. 6 to 16).
WARNING
Serious injury
Risk of serious injury through falling coupling parts and/or flying fragments and/or risk of damage to the
coupling.
Secure all coupling parts against falling before undoing the screw connection.
After demounting the collar bolts of the fastening (see figure 49) must imperatively be undone again, so
that the plate pack is detensioned and the collar bolts remain only loosely screwed in. For transporting
remove the collar bolts (see figure 51), fit the threaded bush and reinsert the collar bolt and fit handtight.

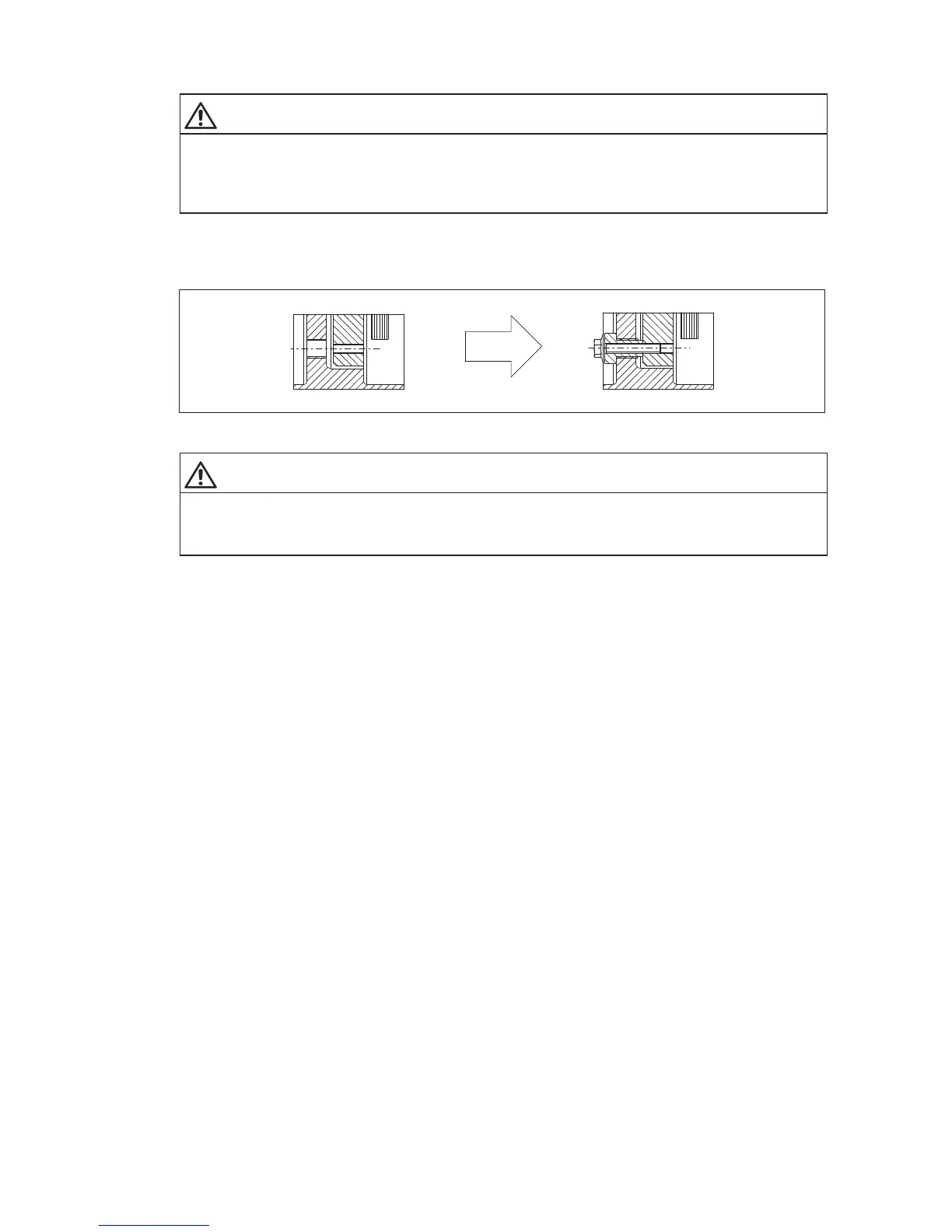

Fig. 51: Inserting the fastening
WARNING
Serious injury
Risk of serious injury through flying fragments and/or risk of damage to the coupling.
Fit the transport lock of the plate pack before transport.
