Flexim FLUXUS G601 - Shear Wave Transducers (Zone 1)

B Technical Data FLUXUS G60x
UMFLUXUS_G6V4-2EN, 2011-03-29 201

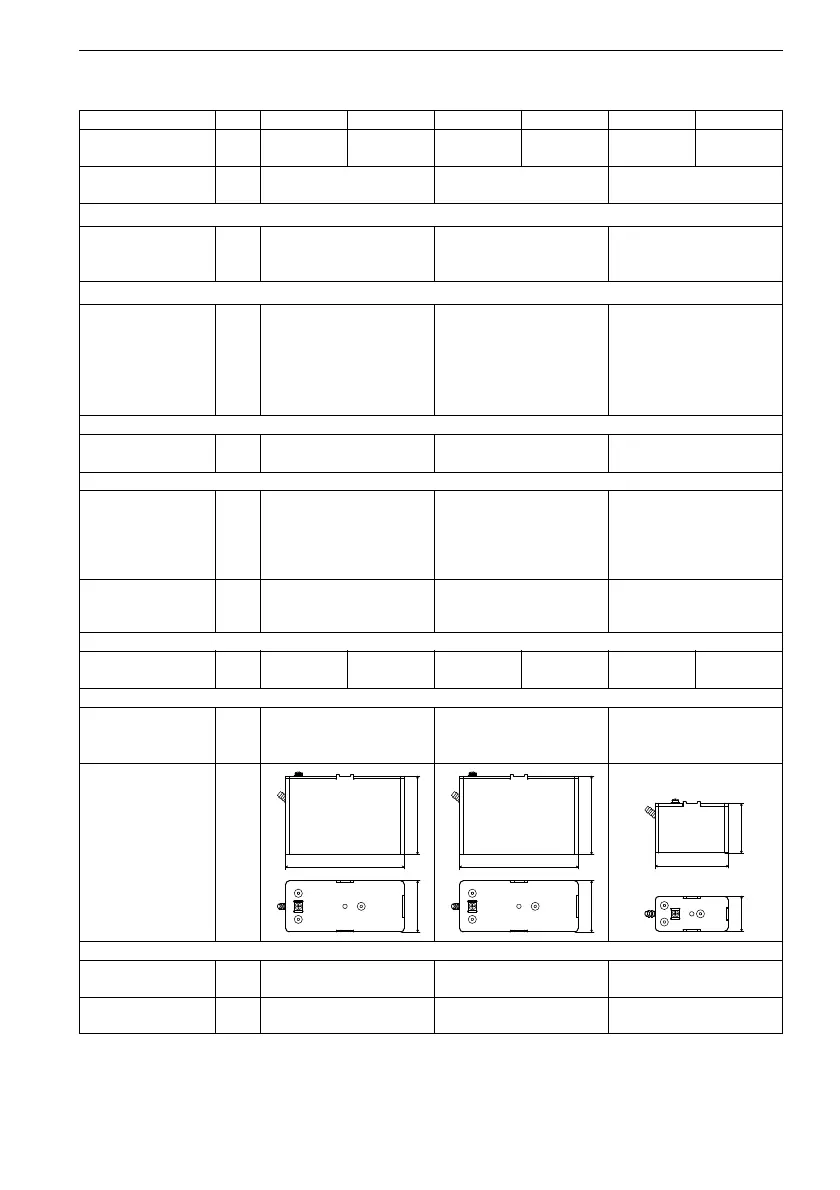

Shear Wave Transducers (zone 1)
technical type GDG1NW1 GLG1NW1 GDK1NW1 GLK1NW1 GDM2NW1 GLM2NW1
order code GSG-
NA1NL
GSG-
NA1NL/LC
GSK-
NA1NL
GSK-
NA1NL/LC
GSM-
NA1NL
GSM-
NA1NL/LC
transducer fre-
quency
MHz 0.2 0.5 1
medium pressure
1
min. extended bar metal pipe: 20 metal pipe: 20 metal pipe: 20
min. bar metal pipe: 30
plastic pipe: 1
metal pipe: 30
plastic pipe: 1
metal pipe: 30
plastic pipe: 1
inner pipe diameter d
min. extended mm 250 70 30
min. recom-
mended
mm 380 80 40
max. recom-
mended
mm 810 500 80
max. extended mm 1100 720 120
pipe wall thickness
min. mm 14 5 2.5
max. mm - - -
material
housing
PEEK with stainless
steel cap and
transducer shoe 304
(1.4301)
PEEK with stainless
steel cap and
transducer shoe 304
(1.4301)
PEEK with stainless
steel cap and
transducer shoe 304
(1.4301)
contact surface PEEK PEEK PEEK
degree of protec-
tion according to
IEC/EN 60529
IP65 IP65 IP65
transducer cable
type 1699 1699 1699 1699 1699 1699
length m 5 9 5 9 4 9
dimensions
length l mm 136.5 136.5 84
width bmm595940
height h mm 90.5 90.5 59
dimensional draw-
ing
operating temperature
min. °C -40 -40 -40
max. °C +130 +130 +130
temperature
compensation
xxx
l
h
b
l
h
b
l
h
b
