Flexim FLUXUS G601 User Manual

6 Installation of FLUXUS G601 FLUXUS G60x
UMFLUXUS_G6V4-2EN, 2011-03-29 41
6.7 Connection of the Serial Interface
• Connect the RS232 cable to the transmitter (see Fig. 6.13) and to the serial interface of
the PC. If the RS232 cable can not be connected to the PC, use the RS232/USB
adapter.
The RS232 adapter, the RS232 cable and the RS232/USB adapter are part of the serial
data kit (optional).

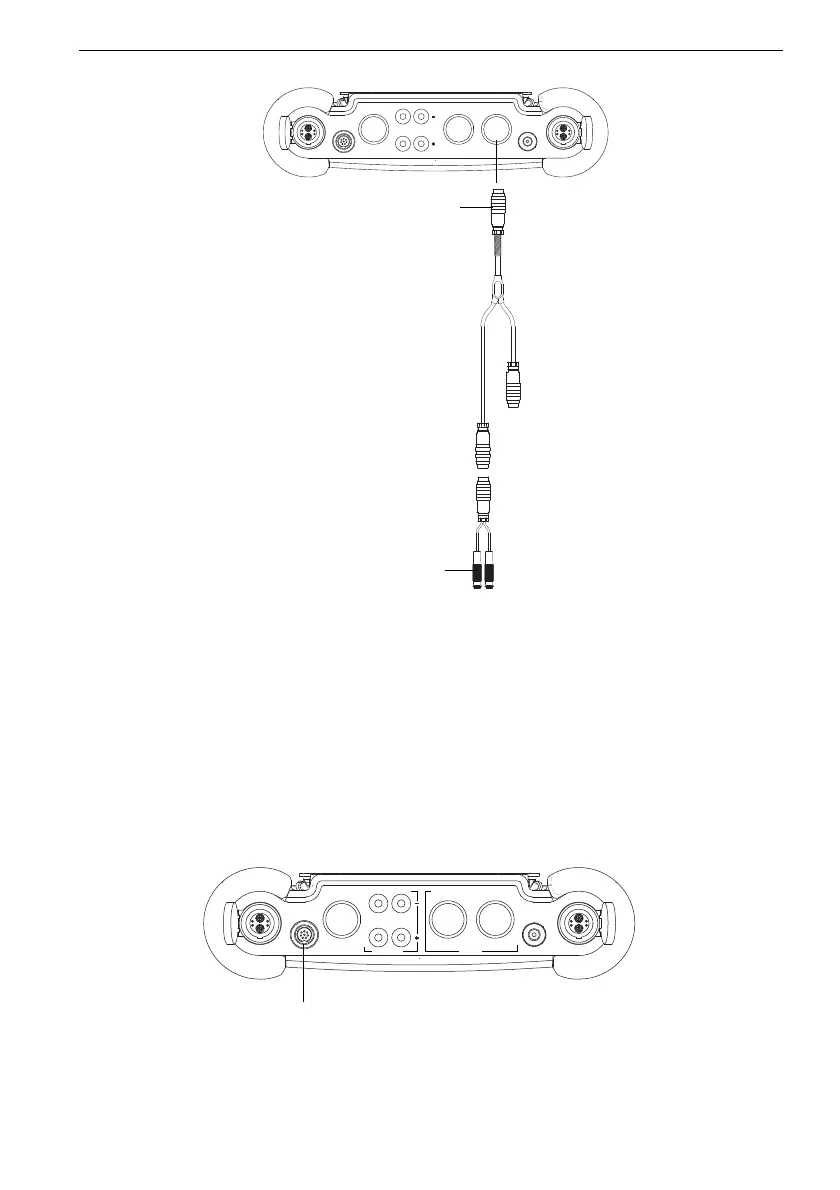

Fig. 6.12: Connection of the adapter for the voltage and current inputs
Fig. 6.13: Connections of the transmitter FLUXUS G601
T2
T4
input adapter
adapter for voltage and
current inputs
CH A
COMM
P2 P1
Output Input
CH B
T1/T3 T2/T4
DC-IN
P3...P8
serial interface
