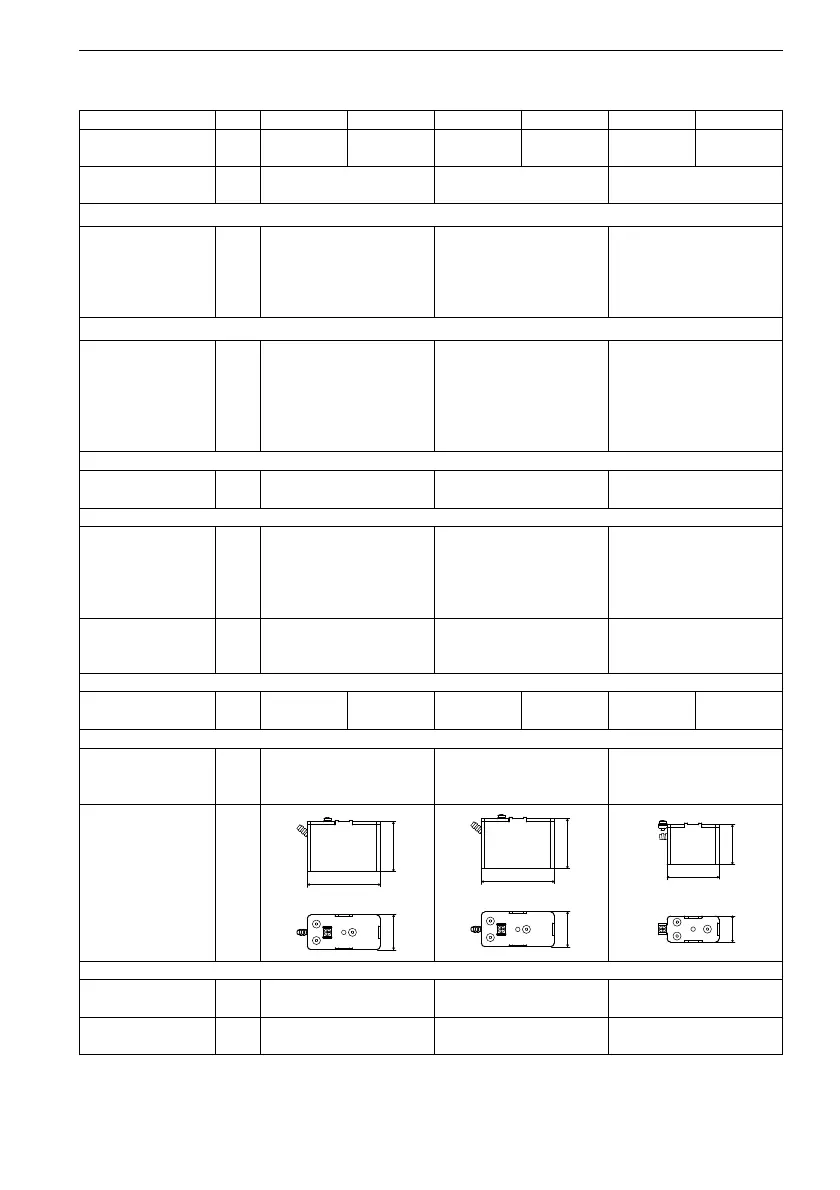

Flexim FLUXUS G601 - Lamb Wave Transducers (Zone 2)

B Technical Data FLUXUS G60x
UMFLUXUS_G6V4-2EN, 2011-03-29 213
Lamb Wave Transducers (zone 1)
technical type GRM1NW3 GTM1NW3 GRP1NW3 GTP1NW3 GRQ1NW3 GTQ1NW3
order code GLM-
NA1NL
GLM-
NA1NL/LC
GLP-
NA1NL
GLP-
NA1NL/LC
GLQ-
NA1NL
GLQ-
NA1NL/LC
transducer fre-
quency
MHz124
medium pressure
1
min. extended bar - - -
min. bar metal pipe:
10 (d > 60 mm), 5 (d <
60 mm)
plastic pipe: 1
metal pipe:
10 (d > 35 mm), 5 (d <
35 mm)
plastic pipe: 1
metal pipe:
10 (d > 15 mm), 5 (d <
15 mm)
plastic pipe: 1
inner pipe diameter d
min. extended mm 30 15 7
min. recom-
mended
mm 40 20 10
max. recom-
mended
mm 90 50 22
max. extended mm 150 70 35
pipe wall thickness
min. mm 2 1 0.5
max. mm 5 3 1
material
housing PPSU
with stainless
steel cap and
transducer shoe
304
(1.4301)
PPSU
with stainless
steel cap and
transducer shoe
304
(1.4301)
PPSU
with stainless
steel cap and
transducer shoe
304
(1.4301)
contact surface PPSU PPSU PPSU
degree of protec-
tion according to
IEC/EN 60529
IP65 IP65 IP65
transducer cable
type 1699 1699 1699 1699 1699 1699
length m 4 9 4 9 4 9
dimensions
length l mm 84 84 70
width bmm404030
height h mm 59 59 47.5
dimensional draw-
ing
operating temperature
min. °C -40 -40 -40
max. °C +170 +170 +170
temperature
compensation
xxx
l
h
b
l
h
b
l
h
b
