3,91in
99,3mm
2,47in
62,7mm
6,76in
171,7mm
Optical axis
4,34in
110,3mm
4,58in
116,4mm
For additional dimensions see page 1
Camera with Lens IR f=92 mm (6°)
1 2 3 4 5 6 7 8 9 10
1 632 54
A
B
C
D
E
F
G
H
F
C
E
G
D
A
B
Scale
1:2
B
Size
Modified
R&D Thermography
2013-02-18

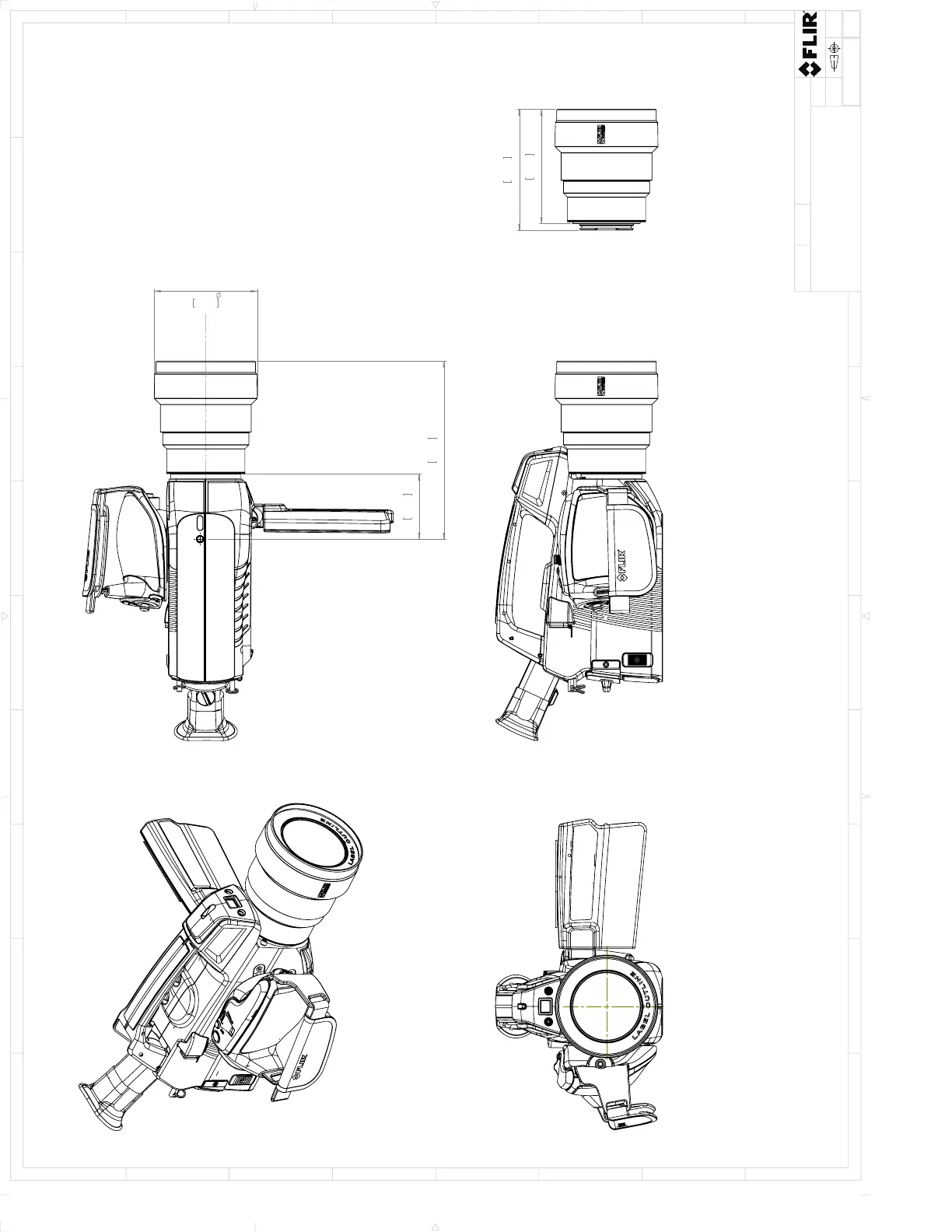

Basic dimension FLIR GF3xx
T127603
3(5)
A3
Denomination
Drawn by
Check
Size
Drawing No.
Sheet
7
