Handling the camera16
16.13 Adjusting the infrared camera focus
manually
Note Do not touch the lens surface when you adjust the infrared camera focus manually.
If this happens, clean the lens according to the instructions in 25.2 Infrared lens, page 229.

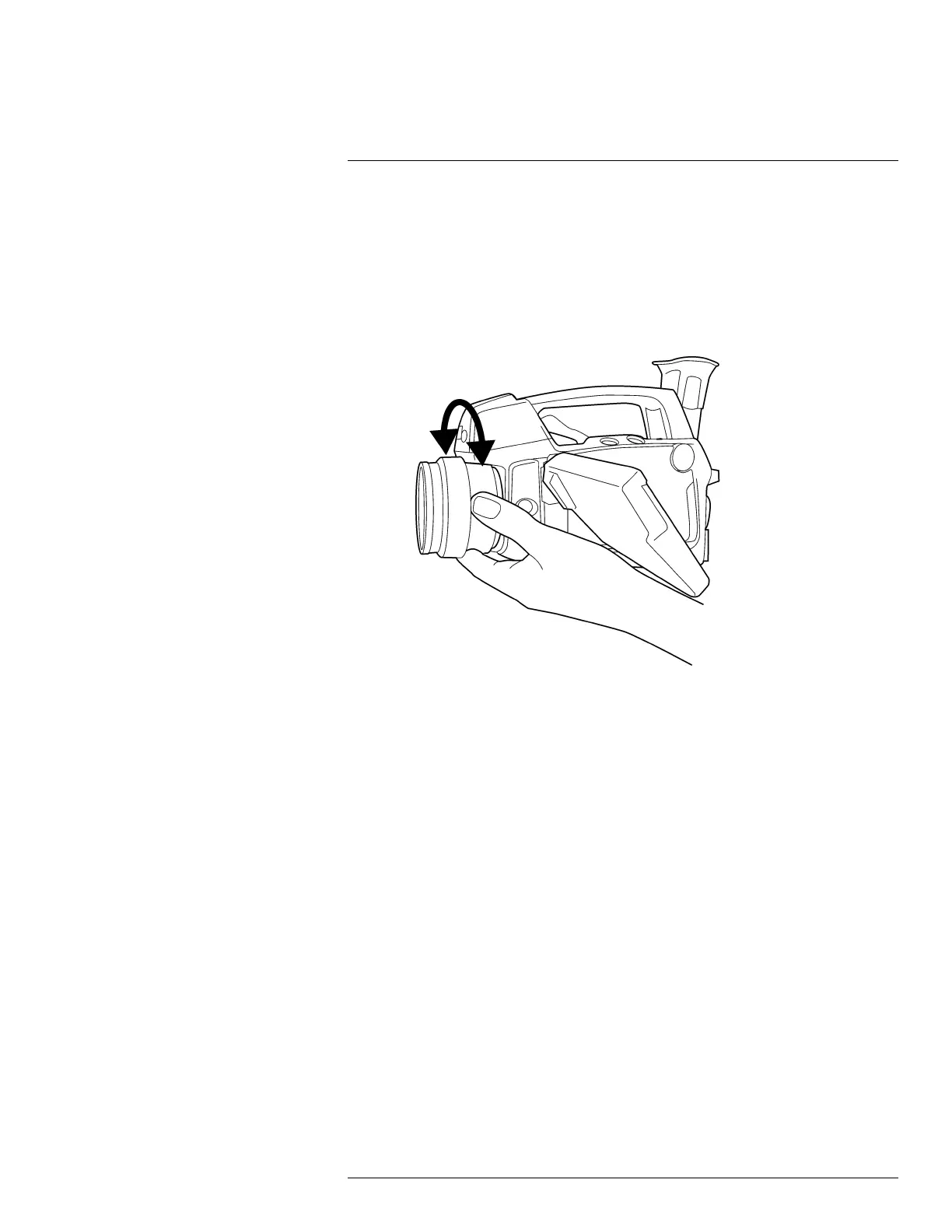

16.13.1 Figure
16.13.2 Procedure
Do one of the following:
• For far focus, rotate the focus ring counter-clockwise (looking at the front of the lens)
• For near focus, rotate the focus ring clock-wise (looking at the front of the lens)
#T559157; r. AH/45951/45951; en-US
56
