Handling the camera16

16.14 Adjusting the infrared camera focus

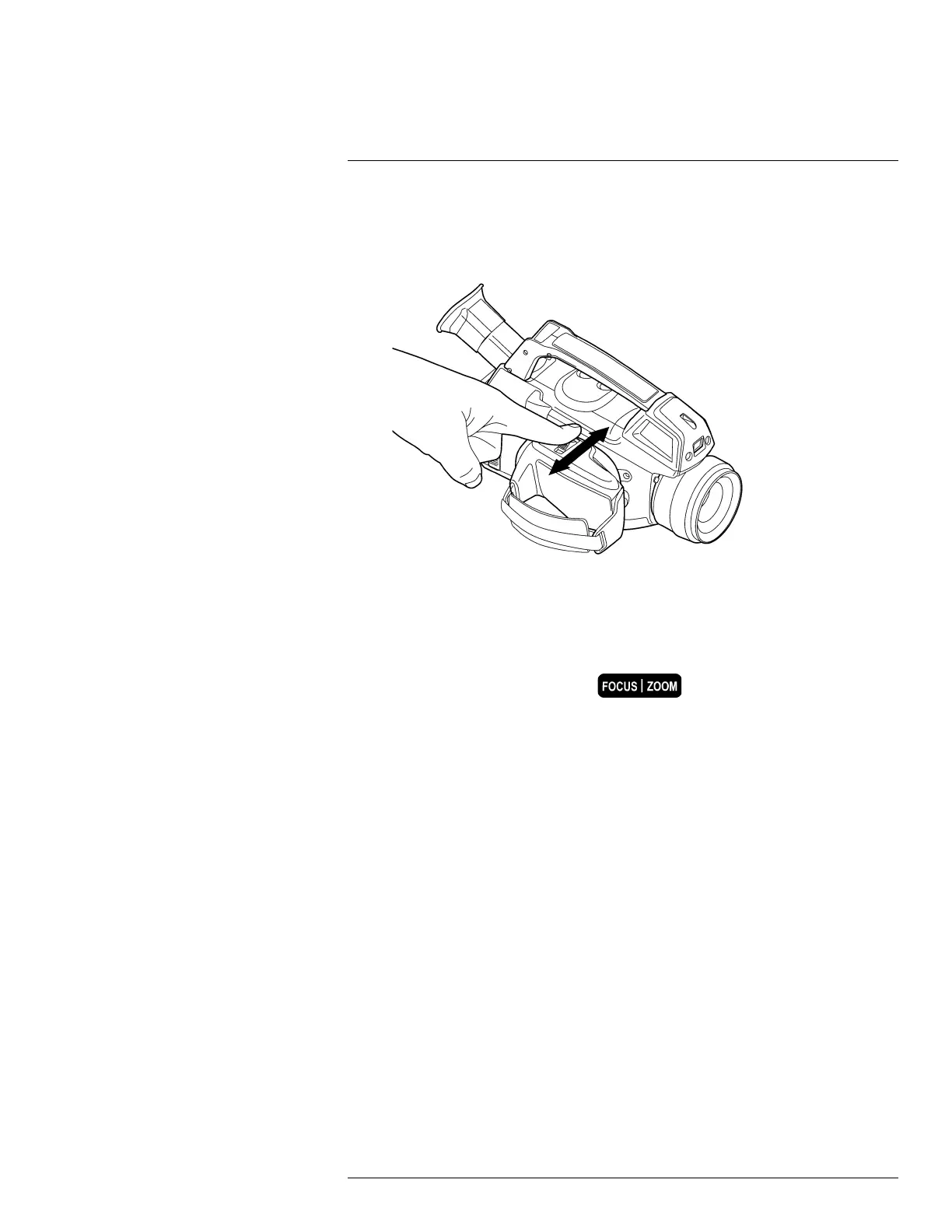

16.14.1 Figure

16.14.2 Procedure

Follow this procedure to adjust the infrared camera focus:

1. Make sure that the image is in live mode.

2. To adjust the camera focus, push the

button left/right.

#T559157; r. AH/45951/45951; en-US
