M3100 Series Hard Drive
Installation
21
The system comes with a pre-installed 3.5" SATA hard drive. You can replace the hard
drive with one up to a maximum size of 4TB.
21.1 Installing a Hard Drive
CAUTION
Make sure that the system is OFF and the power adapter is disconnected before removing/installing the
hard drive.

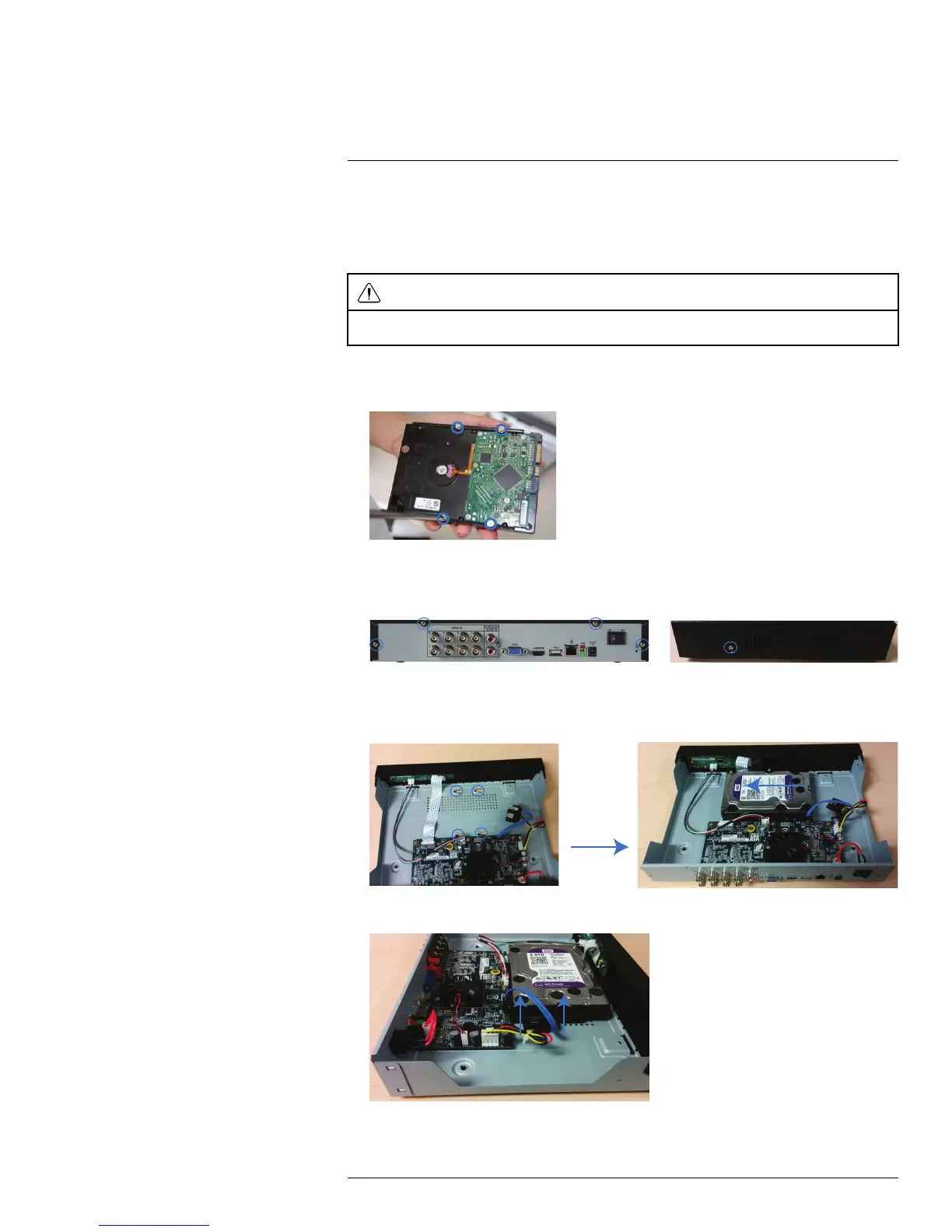

To install the hard drive:
1. Insert hard drive screws (4x) on the hard drive and tighten them half way.
2. Power off the system, and unplug all cabling from the system.
3. Remove the rear panel screws (4x) and side panel screws (1x on each side). Remove
the cover.
4. Place the hard drive over the screw slots on the bottom of the system and then slide
the hard drive into place. The SATA connectors on the hard drive should face the right
side of the unit if looking at it from the rear.
5. Connect the SATA power and data cable to the hard drive.
#LX400028; r. 1.0/16141/16141; en-US
156
