Basic Setup (M3100 Series)
6

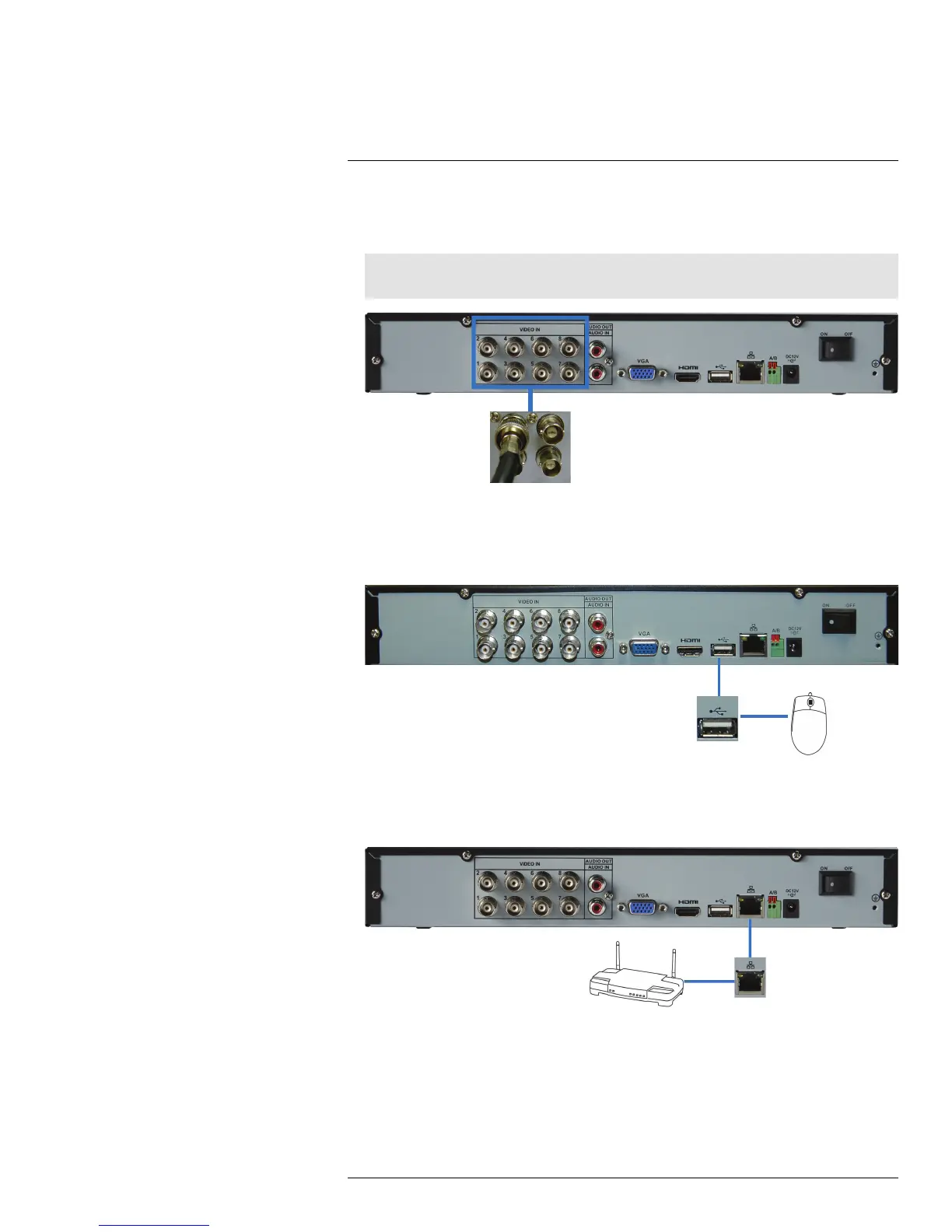

6.1 Step 1: Connect the BNC Cameras
• Connect FLIR MPX cameras to the Video Input ports on the rear panel of the DVR.
Note
The system is compatible withFLIR MPX cameras only.
00
Push and twist the BNC connector clockwise to secure it to the BNC port.
6.2 Step 2: Connect the Mouse
• Connect a USB mouse (included) to one of the USB ports.
6.3 Step 3: Connect the Ethernet Cable
• Connect an Ethernet cable (included) to the LAN port on the rear panel of the DVR.
Connect the other end of the Ethernet cable to a router on your network.
6.4 Step 4: Connect the Monitor
• Connect the included HDMI cable from the HDMI port to the TV or monitor
(recommended).
OR
