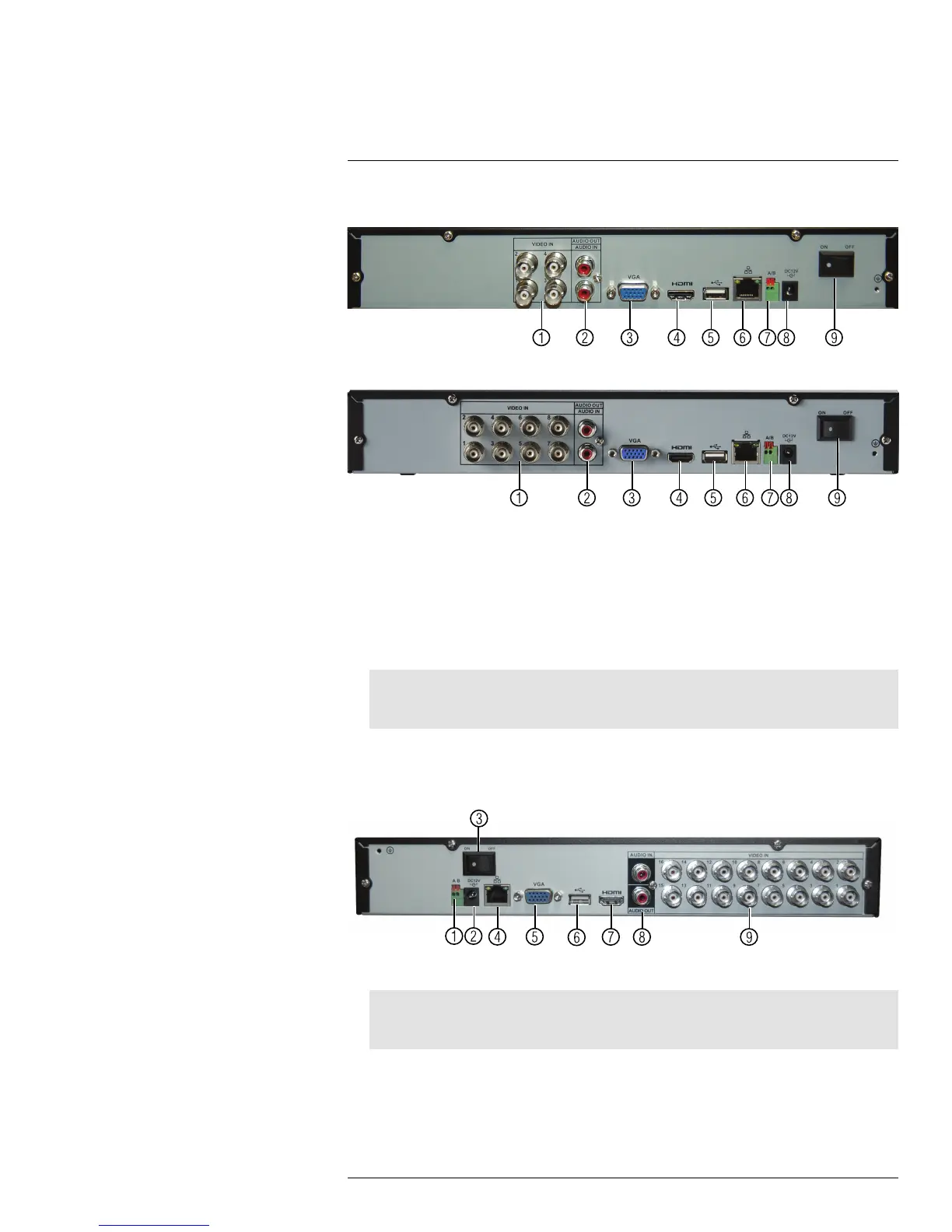

Rear Panel (M3100 Series)
5
4–Channel
8–Channel
1. Video input: Connect FLIR MPX cameras to the system.
2. Audio IN/Audio OUT: RCA input and output for 1–channel audio recording.
3. VGA: Connect a VGA monitor (not included) to view the system interface.
4. HDMI: Connect to an HDMI monitor or TV (not included) to view the system interface.
5. USB port(s): Connect a USB mouse (included) or USB flash drive (not included) for
data backup or firmware updates.
6. LAN: Connect a CAT 5 RJ45 Ethernet cable for local and remote connectivity.
7. A/B: Connect RS485 cables.
Note
System is compatible with FLIR MPX PTZ cameras (not included) only. See 20 Connecting a PTZ
Camera (M3100 Series), page 151 for details.
8. DC12V: Connect the included AC power adapter.
9. On / Off switch: Turns the DVR on or off.
16–Channel
1. A/B: Connect RS485 cables.
Note
System is compatible with FLIR MPX PTZ cameras (not included) only. See 20 Connecting a PTZ
Camera (M3100 Series), page 151 for details.
2. DC12V: Connect the included AC power adapter.
3. On / Off switch: Turns the DVR on or off.
4. LAN: Connect a CAT 5 RJ45 Ethernet cable for local and remote connectivity.
#LX400028; r. 1.0/16141/16141; en-US
