14.9.2 Power connector
10402503;a1

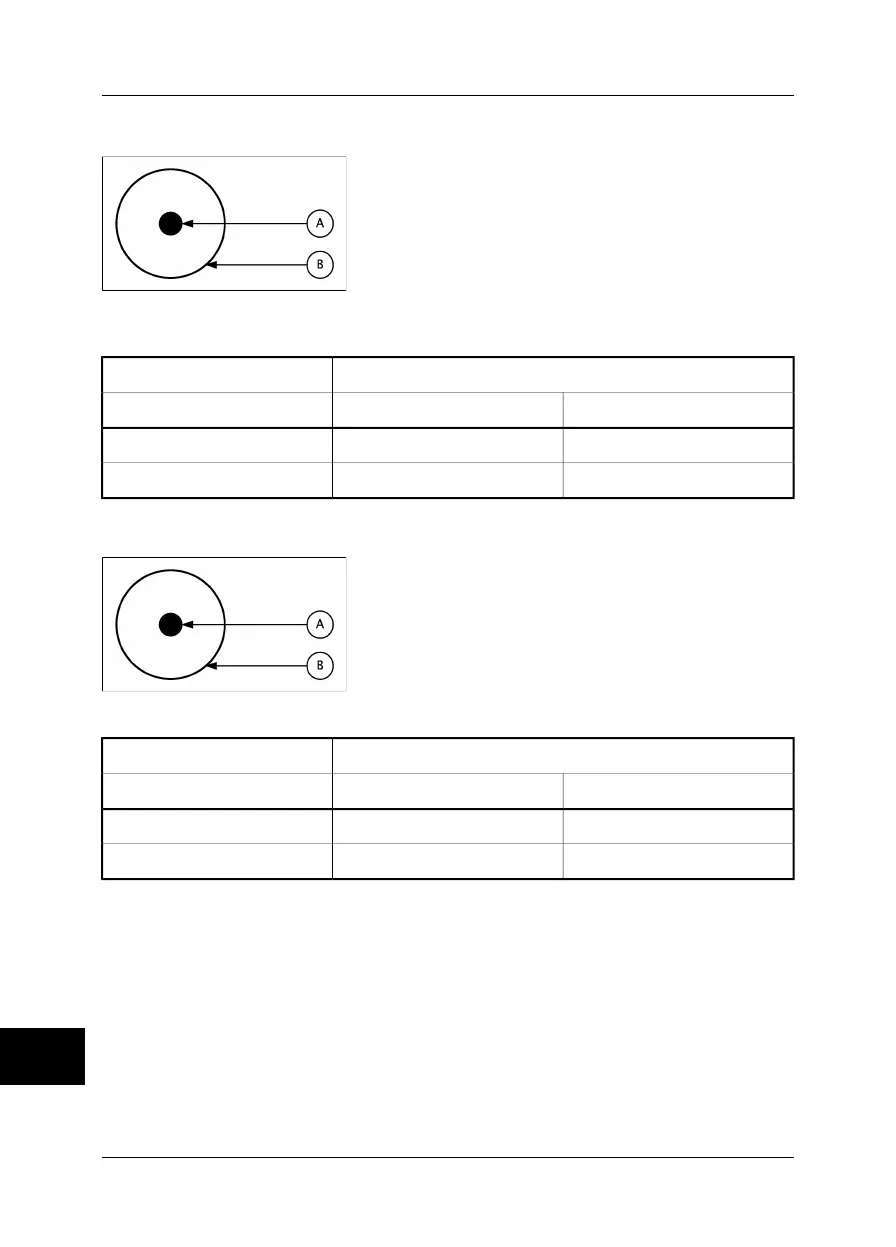

Figure 14.3 Pin configuration for power connector (on camera – operator’s side). A: Center pin; B:
Chassis
2.5 mm DCConnector type:
Pin numberTypeSignal name
CENTER PINPOWER+12V
CHASSISPOWERGND
14.9.3 CVBS connector
10402503;a1
Figure 14.4 Pin configuration for CVBS connector (on camera – operator’s side). A: Center pin; B: Chassis
RCA/PHONOConnector type:
Pin numberTypeSignal name
CENTER PINVIDEOCVBS
CHASSISPOWERGND
14
92 Publ. No. 1558407 Rev. a155 – ENGLISH (EN) – February 6, 2006
14 – Technical specifications & dimensional drawings
