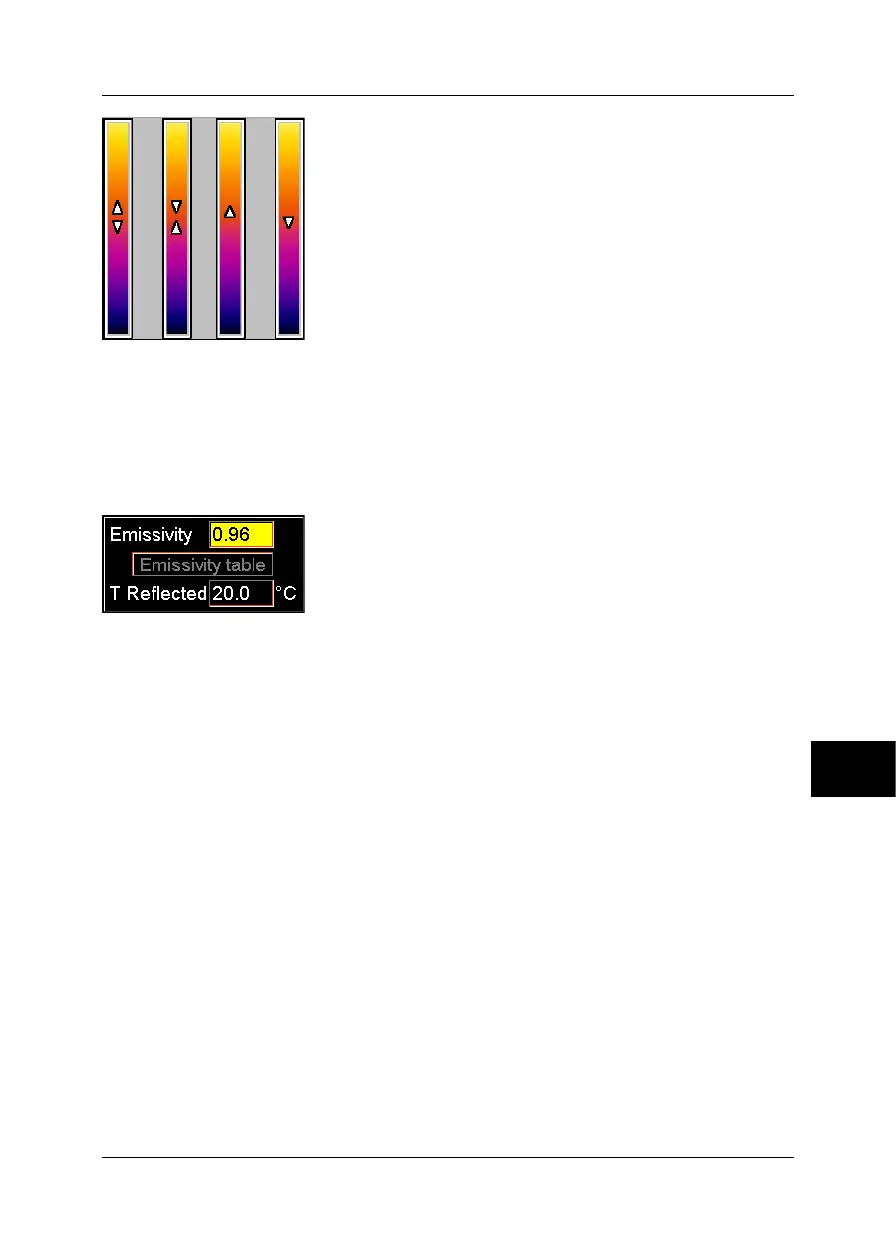

Figure 10.10 Symbols in the temperature scale, indicating (1) increasing span; (2) decreasing span; (3)
increasing level, and (4) decreasing level
Point to Automatic adjust and press MENU/YES to put the camera in automatic mode,
continuously optimizing the image for best level and span.
10.4.4 Emissivity
10438903;a2
Figure 10.11 Emissivity dialog box
Point to Emissivity on the vertical menu bar and press MENU/YES to display the
Emissivity dialog box.
■ To change the emissivity, press the navigation pad right/left
■ To display an emissivity table and select a value from the table, press Emissivity
table
■ To confirm the choice, press MENU/YES
■ To cancel any changes, press PWR/NO
■ To change T Refl (reflected ambient temperature), press the navigation pad right/left
■ To confirm the choice, press MENU/YES
■ To cancel any changes, press PWR/NO
For more information about emissivity and reflected ambient temperature, see section
16 – Thermographic measurement techniques on page 109 and section 18 – Theory
of thermography on page 119
➲ Please note the following:
■ When the scale is selected, you can change the emissivity directly by using the
navigation pad.
10
Publ. No. 1558407 Rev. a155 – ENGLISH (EN) – February 6, 2006 71
10 – Camera program
