9.3 Laser LocatIR
By pulling the trigger on the bottom side of the camera body, a laser dot appears
approx. 40 mm/1.57" above the target.
➲ Please note the following:
■ A laser icon appears on the screen when the Laser LocatIR is switched on.
■ Since the distance between the laser beam and the image center will vary by the
target distance, Laser LocatIR should only be used as an aiming aid. Always check
the LCD to make sure the camera captures the desired target.
■ Do not look directly into the laser beam.
■ When not in use, the Laser LocatIR should always be protected by the lens cap.
For more information about trigger settings, see section 10.4.9.1 – Settings on page
74.
10376403;a2
Figure 9.4 Wavelength: 635 nm. Max. output power: 1 mW. This product complies with 21 CFR 1040.10
and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated July 26th, 2001
10581703;a1

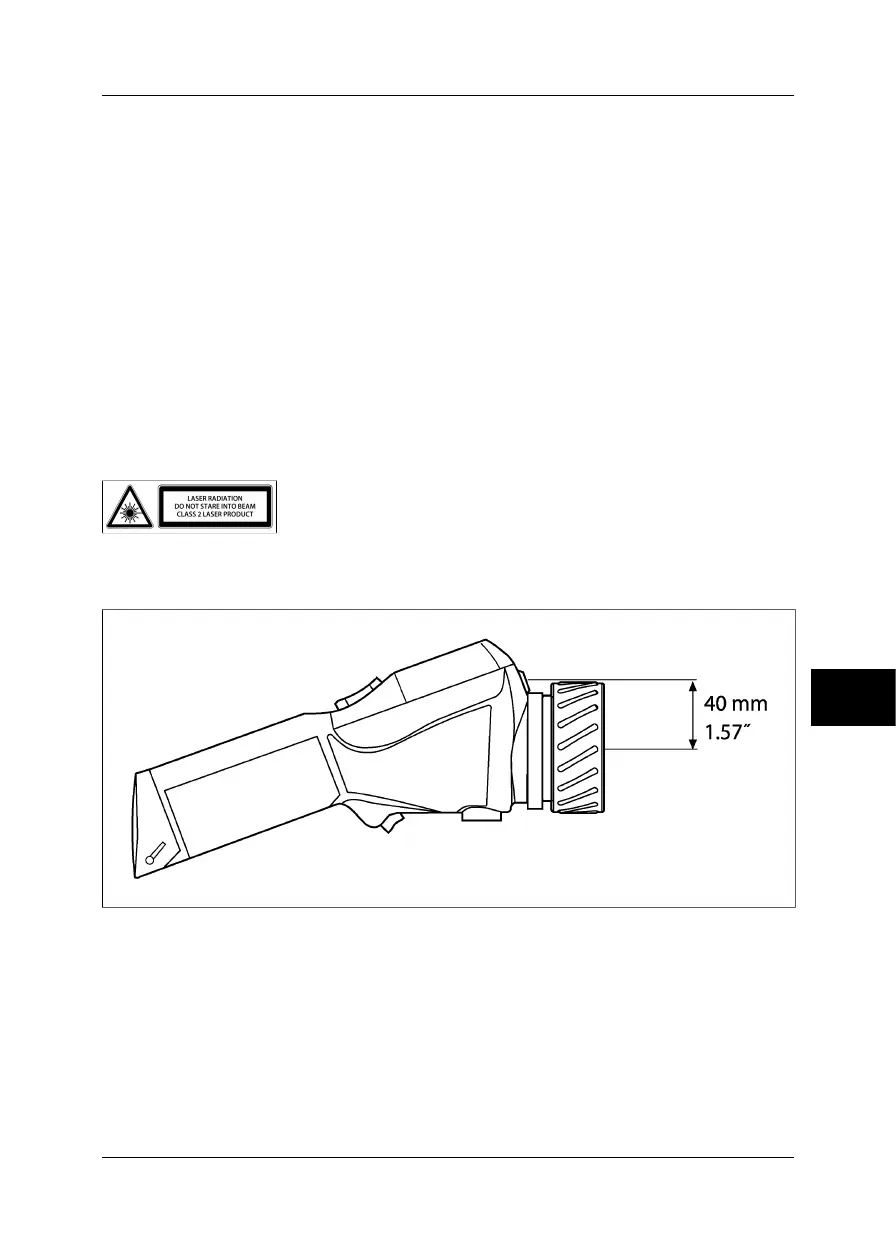

Figure 9.5 Distance between the laser beam and the image center
9
Publ. No. 1558407 Rev. a155 – ENGLISH (EN) – February 6, 2006 63
