10.4 Menu system
10.4.1 Navigating the menu system
Press MENU/YES to display the vertical menu bar
Press MENU/YES to confirm selections in menus and dialog boxes
Press PWR/NO to exit the menu system
Press PWR/NO to cancel selections in menus and dialog boxes
Press the navigation pad up/down to move up/down in menus, submenus and di-
alog boxes
Press the navigation pad right/left to move right/left in menus and submenus, and
to change values in dialog boxes
10.4.2 Meas. mode
10429603;a2

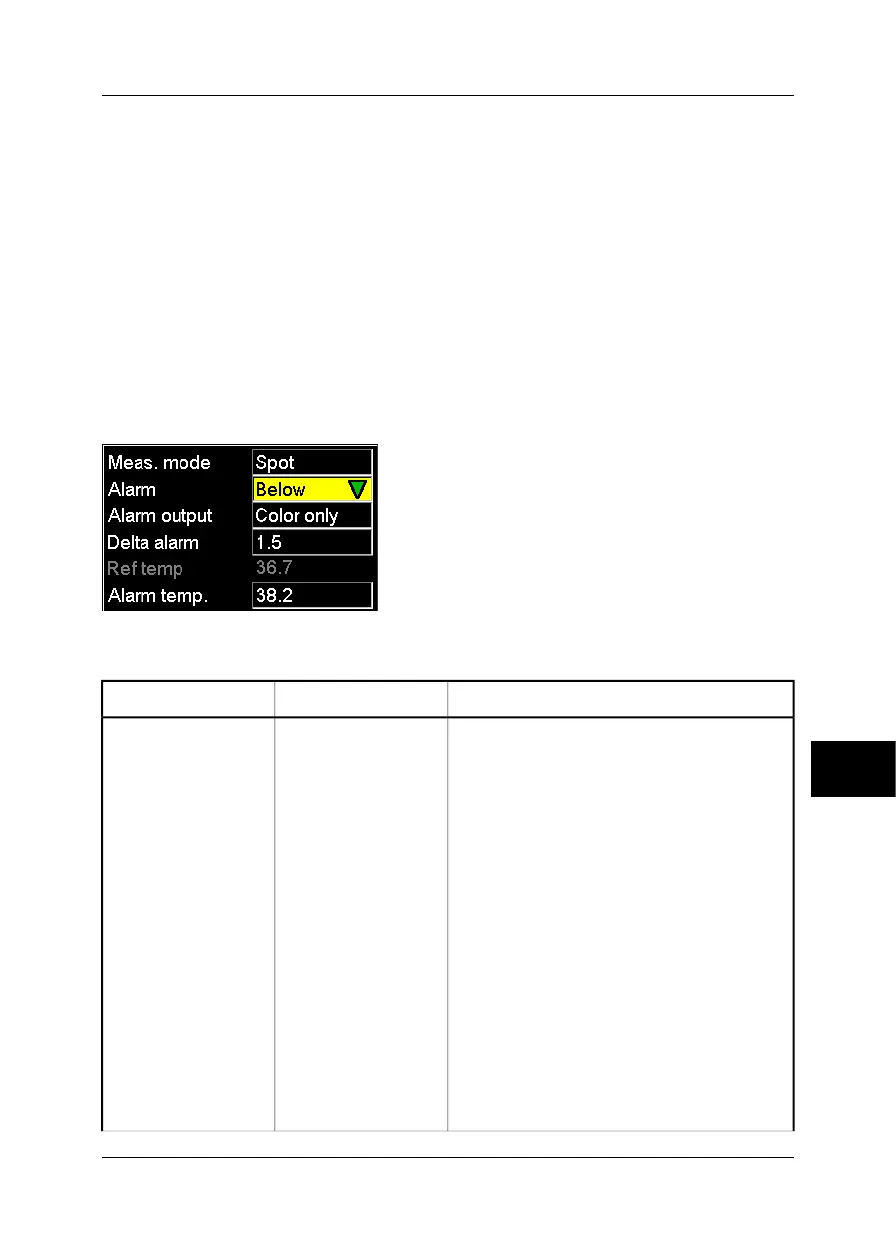

Figure 10.8 Meas. mode dialog box
Figure 10.9 Explanations of the Meas. mode dialog box
ExplanationValueLabel
Select None to disable the measurement mode.
Select Spot to lay out a spot, where the temper-
ature of the spot will be displayed in the result
table.
Select Area max to lay out an area on the
screen, where the maximum temperature in the
area will be displayed in the result table. A
measurement marker inside the area will contin-
uously indicate the maximum temperature.
Select Area min to lay out an area on the
screen, where the minimum temperature in the
area will be displayed in the result table. A
measurement marker inside the area will contin-
uously indicate the minimum temperature.
Select Area avg to lay out an area on the
screen, where the average temperature in the
area will be displayed in the result table.
Select Diff spots to calculate the difference
between two spots and display this difference
in the result table.
None
Spot
Area max
Area min
Area avg
Diff spots
Meas. mode
10
Publ. No. 1558407 Rev. a155 ENGLISH (EN) February 6, 2006 69
10 Camera program
