Flowserve MSX Series - Pedestal Mounting

Flowserve Pump Division - 14

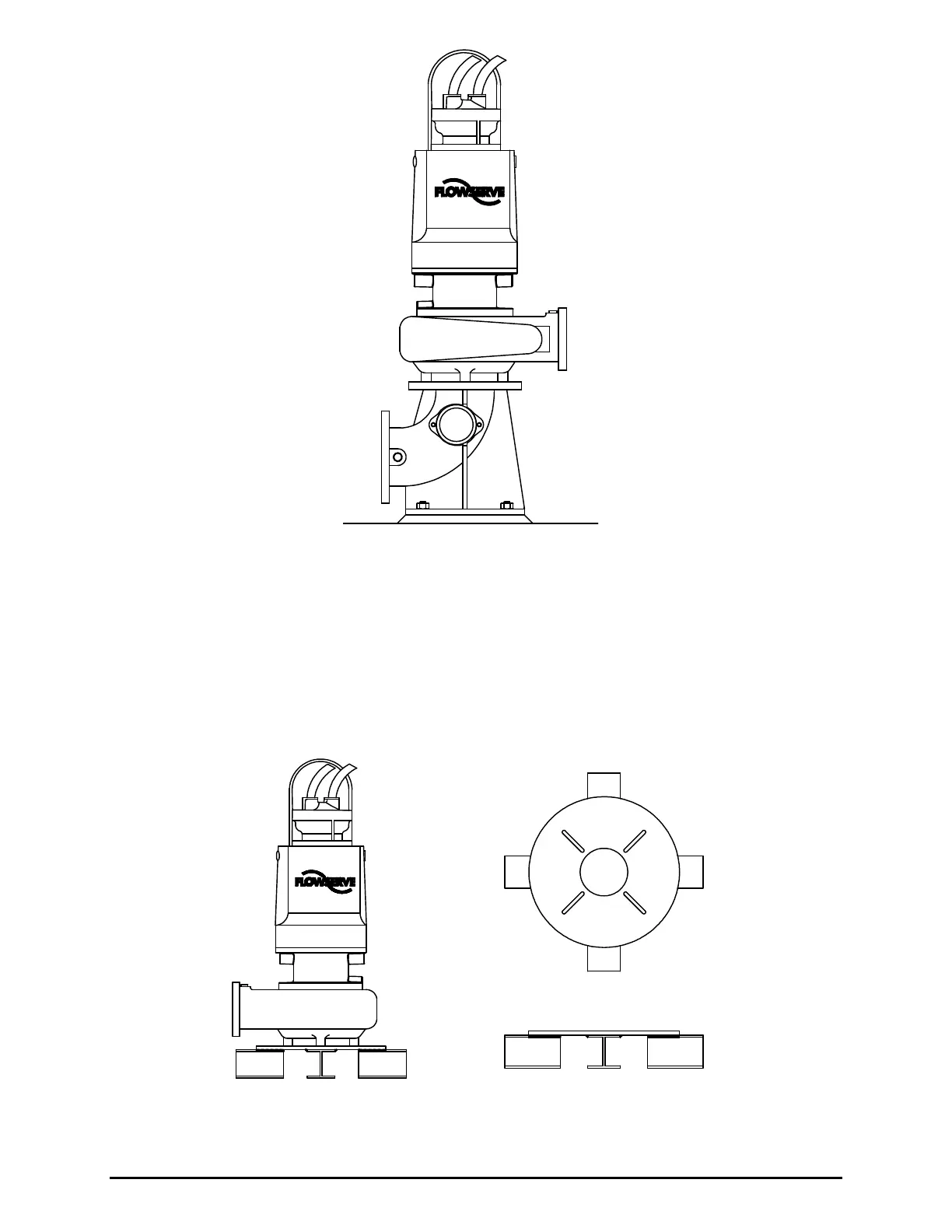

Figure 2: Dry Pit Installation
PEDESTAL MOUNTING
Pumps intended for portable use are supplied with a transportable stand. Either flexible hose with quick
disconnect couplings or rigid piping can be attached to the discharge; See Figure 3: Transportable
Stand.
Figure 3: Transportable Stand
TRANSPORTABLE STAND
PUMP SIDE VIEW
