Fluke 5100 Series User Manual

5100 Series

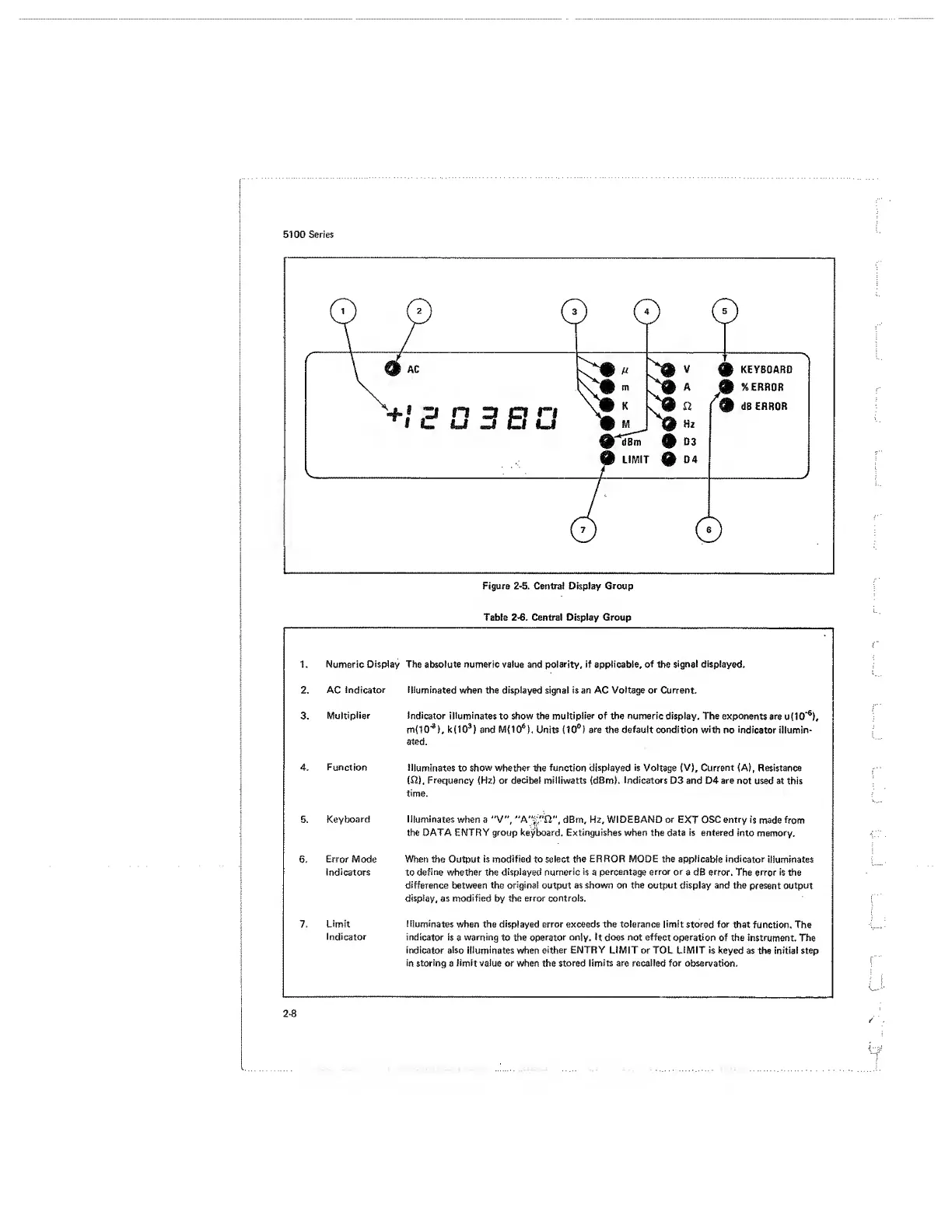

Figure
2-5.
Centra! Display Group
Table
2-6.
Central Display Group
1. Numeric
Display
The absolute numeric value and
polarity,
if applicable,
of
the
signal
displayed.
2. AC
tndicator Illuminated
when the displayed signal is an AC Voltage
or
Current.
3.
Multiplier Indicator illuminates
to show the
multiplier
of the numeric display. The
exponents are
u(10‘
6
),
mOO"
3
),
k (
1
0
3
}
and
M
<
1
0
6
)
. Units
(
10°
)
are
the
default condition with
no indicator illumin-
ated.
4.
Function
Illuminates
to
show whether
the
function displayed is Voltage
(V),
Current
(A), Resistance
(fi).
Frequency
(Hz) or
decibel
milliwatts (dBm).
Indicators
D3 and D4 are
not
used at this
time.
5.
Keyboard Illuminates
when a "V", "A", "fi", dBm, Hz, WIDEBAND or
EXT
OSC entry
is
made from
the DATA ENTRY group keyboard. Extinguishes when the data is entered
into
memory.
6.
Error
Mode
indicators
When
the Output
is
modified to select
the ERROR MODE the applicable
indicator
illuminates
to
define
whether the
displayed numeric is
a
percentage error
or
a dB
error.
The error is the
difference between the
original
output as shown on the output display and the
present output
display,
as
modified
by
the error controls.
7.
Limit
Indicator
Illuminates
when the displayed error exceeds the tolerance limit
stored
for
that function. The
indicator is
a
warning
to the
operator
only.
It does
not
effect operation
of the
instrument. The
indicator
also illuminates
when
either
ENTRY LIMIT or
TOL
LIMIT
is
keyed as
the
initial step
in storing
a
limit
value or when
the
stored
limits are
recalled
for
observation.
