Fluke 5100 Series User Manual

5100
Series

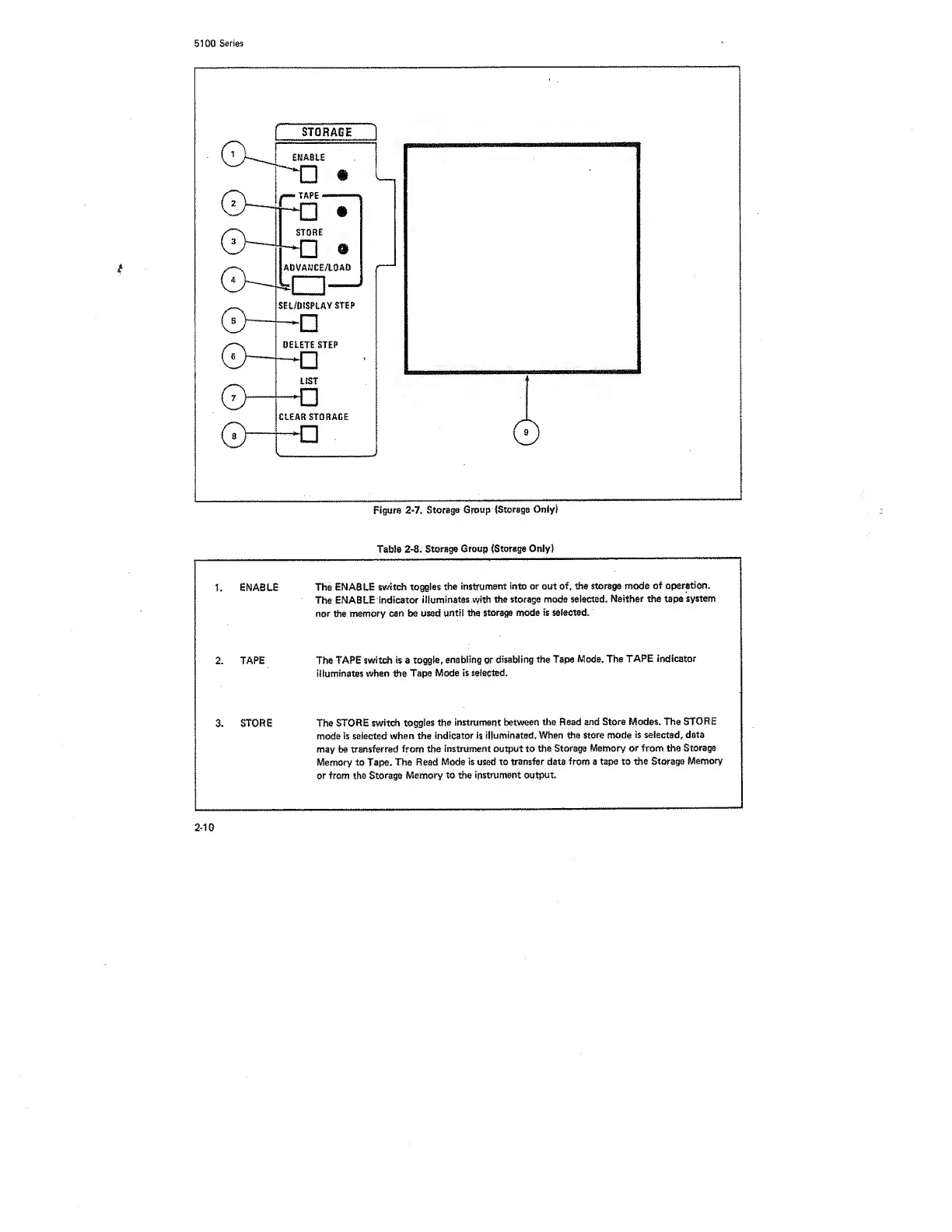

Figure
2-7. Storage Group
(Storage
Only)
Table
2-8.
Storage
Group (Storage Only}
1
.
ENAB IE
The EN
AB
LE
switch
toggles the
instrument
into or out of, the storage
mode
of
operation.
The ENABLE
indicator
illuminates
with
the storage mode
selected. Neither the
tape
system
nor the memory can be
used
until the
storage mode is
selected.
2.
TAPE The
TAPE switch is a toggle,
enabling
or
disabling the Tape
Mode, The
TAPE indicator
illuminates when the
Tape Mode is selected.
3.
STORE The
STORE switch toggles
the
instrument between
the
Read and Store Modes. The
STORE
mode
is
selected
when the
indicator
is
illuminated. When the
store
mode
is
selected,
data
may be transferred
from
the
instrument output to
the Storage
Memory or from the
Storage
Memory
to Tape. The Read Mode
is
used
to transfer data
from
a tape to
the
Storage
Memory
or from the
Storage Memory
to the instrument output.
