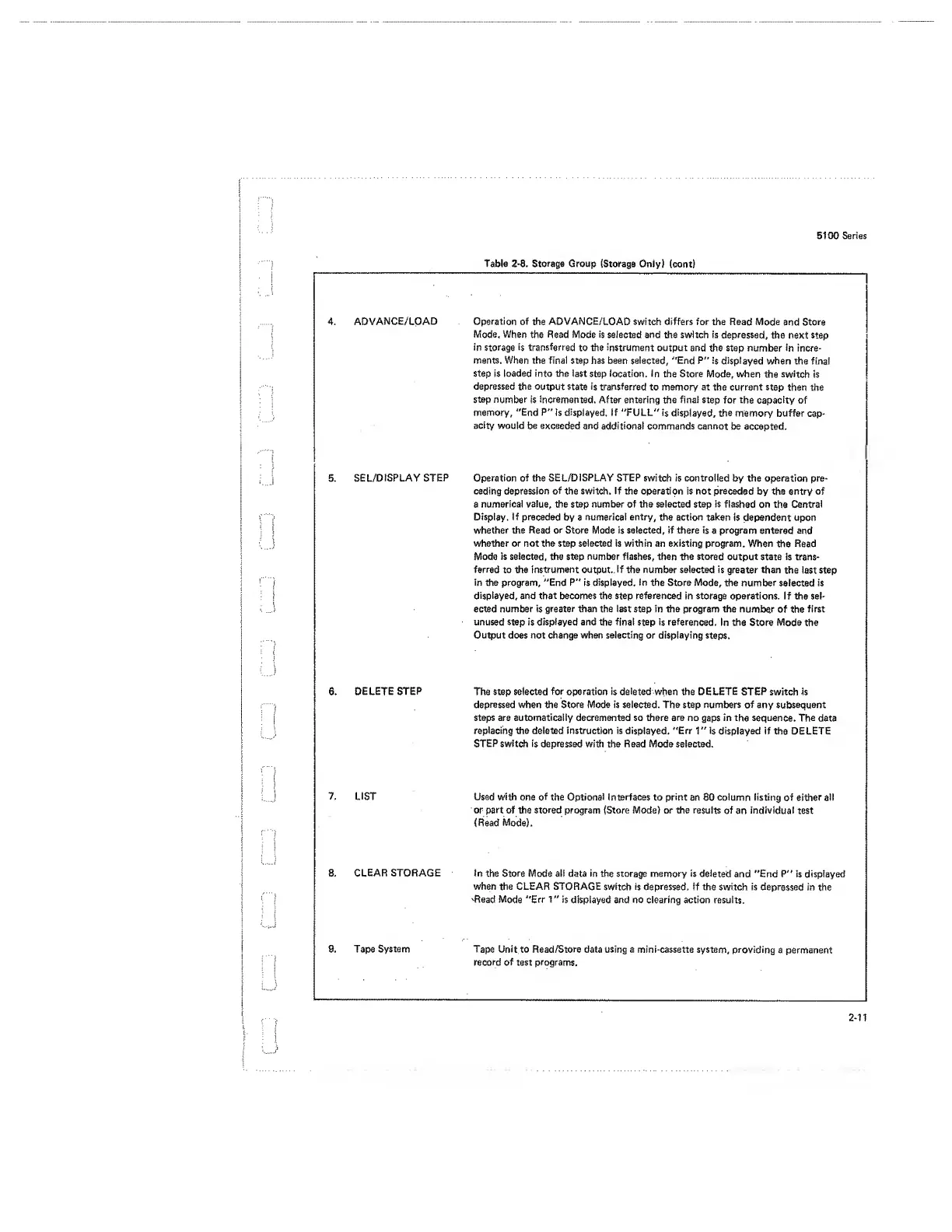

5100 Series
Table
2-8.
Storage
Group (Storage Only!
(cont)
4.
ADVANCE/LOAD Operation of
the
ADVANCE/LOAD
switch differs for the Read
Mode
and
Store
Mode. When
the Read Mode
is
selected and the switch is
depressed,
the next step
in storage is transferred
to the
instrument
output
and
the step
number in
incre-
ments. When the final step has been selected, "End P"
is displayed
when the final
step is loaded into the
last
step
location. In
the Store Mode,
when
the
switch
is
depressed the
output
state
is transferred
to memory at
the current step
then the
step
number
is
incremented.
After entering the final step for
the capacity
of
memory,
"End
P"
is
displayed.
If "FULL"
is displayed,
the memory buffer
cap-
acity would
be exceeded and additional
commands cannot
be
accepted.
5.
SEL/DISPLAY STEP Operation of
the
SEL/DISPLAY STEP
switch
is controlled
by the operation pre-
ceding depression
of
the
switch, if
the operation is not preceded by
the entry
of
a numerical value, the step number of the selected step is flashed
on
the
Central
Display. If preceded
by a
numerical entry,
the action taken
is dependent upon
whether
the
Read or Store
Mode
is selected, if
there is a program entered
and
whether or not the step selected is within an existing program.
When
the Read
Mode
is selected,
the
step number
flashes, then
the
stored output state is trans-
ferred to the instrument output..
If
the number selected is
greater than
the last step
in the program, "End P" is displayed, in the Store
Mode,
the number selected is
displayed,
and that becomes the step referenced
in
storage operations.
If the
sel-
ected number
is greater
than the
last
step in the
program the
number of
the
first
unused step is displayed and
the final step is referenced.
In the Store
Mode the
Output does not change when selecting or displaying
steps.
6.
DELETE
STEP
The step selected
for
operation is deleted
when the
DELETE
STEP switch is
depressed when the Store Mode is selected. The step numbers
of
any subsequent
steps are automatically decremented so there are no
gaps
in
the sequence. The
data
replacing the deleted instruction is
displayed.
"Err
1"
is
displayed if the DELETE
STEP switch is depressed
with the Read Mode selected.
7.
LIST
Used with
one
of
the
Optional Interfaces
to
print
an
80
column listing
of either
all
or
part
of the
stored
program (Store Mode) or the results
of
an
individual
test
(Read
Mode).
8.
CLEAR STORAGE
In
the Store Mode all data in the storage memory is
deleted
and "End P" is displayed
when the CLEAR STORAGE
switch is depressed.
If the switch is
depressed
in
the
'Read Mode
"Err
1"
is
displayed and no clearing action results.
9.
Tape
System
Tape Unit
to
Read/Store
data using a mini-cassette system,
providing
a permanent
record
of test programs.
2-11
