Fluke 93 User Manual

PERFORMANCE
VERIFICATION PROCEDURE
4-27
C Use the selecVadjusl
keys to select "Components:
VOLTAGE', and press the ENTER softkey
(most
right) to start the component test function.
D Adjust the channel A
attenuator (press the mVA/ key
once In the direction "mV") to set the
vertlcai axis
to 500 mV/div.
E The ScopeMeter
display will now look like figure
4,14.
It
you use a 10 kQ resistor, a
45^
line will
be shown.
F Press the
MEASURE softkey and
use the select/adjust keys to select "Components:
CURRENT"
from the MEASURE pop-up
menu. Activate the selection by pressing the ENTER
softkey.
G Exchange the
10 kO resistor for a 1 kO resistor.
H Now the ScopeMeter display
will show a line under
45'’,
in the
upper left quadrant.
-2V -W OV +1V
+2V

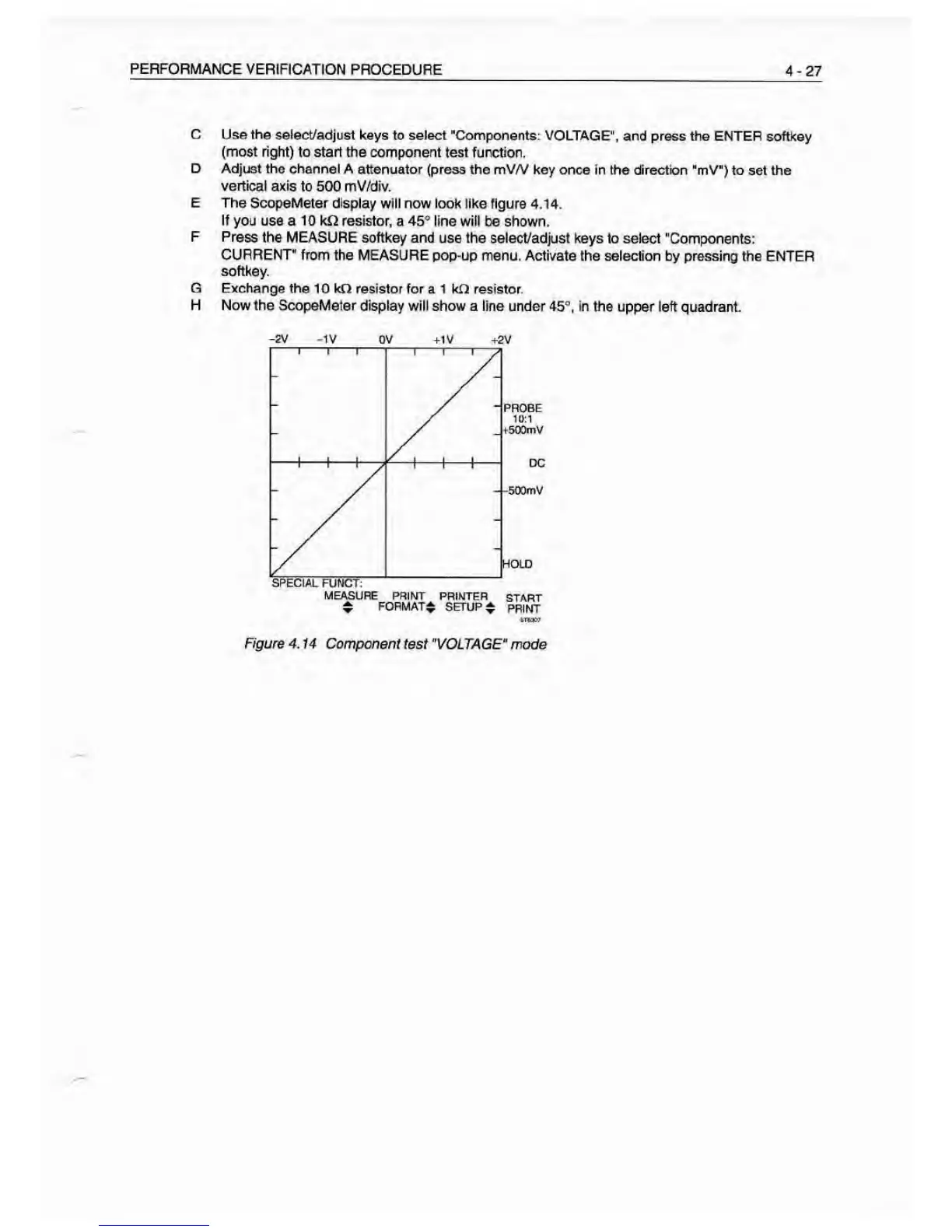

Figure 4. 14 Componer^i
test "VOLTAGE'' mode
